with dry contact, signal smoothing,
max. 24 VDC, for greases of NLGI Grade ≥ 2
The following functions are integrated for the
KFG pump unit with signal smoothing:
Possible isolation of power supply voltages
between fill level monitoring and pump
power.
Fill level information can be accessed even
during interval time.
Reverse voltage protection provided in the
pump supply line.
Optional timeout times.
The various functions are realized internally
using jumpers, according to the custom-
er-specific pump design.
The monitoring device is connected via a
4-pin circular connector, which is plugged into
the base of the pump unit.
4.11.2 Order code 2 (W1G)
KFG KFGS KFGL KFGC
Technical data
Fill level monitoring
Function ................ Dry (poten-
tial-free) or
non-dry contact,
depending on
version
With dry contact:
Contact form ..............Changeover
Switching capacity, .........max. 60 W
Switching voltage, ..........max. 30 VDC
Non-dry contact:
Operating voltage ..........10 to 30 VDC
Continuous current ........≤ 200 mA
Internal power consumption . .6 to 12 mA
Voltage drop ..............≤ 1.8 V at I
Term
Plug-in connection DIN EN 60947/IEC 947
1
)

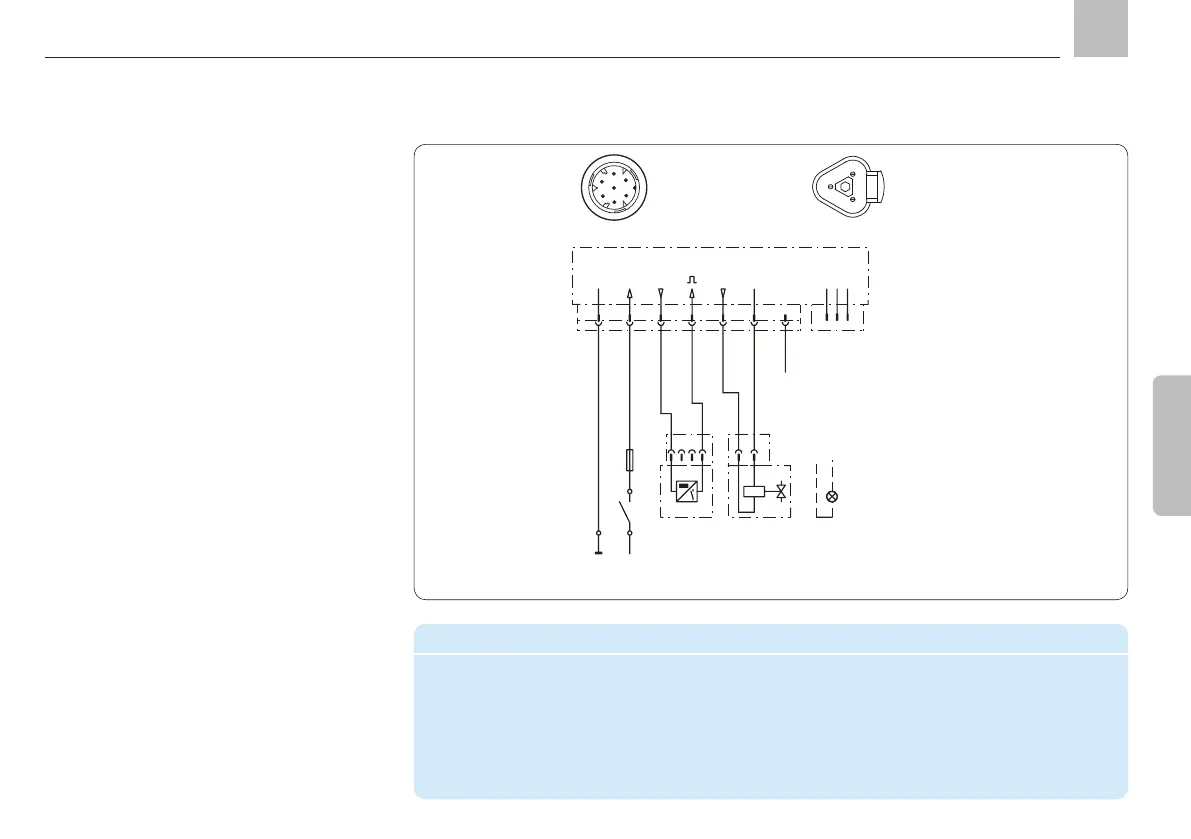

Wiring diagram ............ Circular
connector
M12x1
1) Cable socket - see Accessories, Chapter 16
Page 43
EN
