Pressure regulating valve
Pressure regulating valve with
T connector output
Tube Ø Cracking pressure Order number
[mm] [bar]
6 300 161-210-038
6 200 161-210-032
8 300 161-210-039
8 200 161-210-031
10 300 161-210-016
10 200 161-210-030

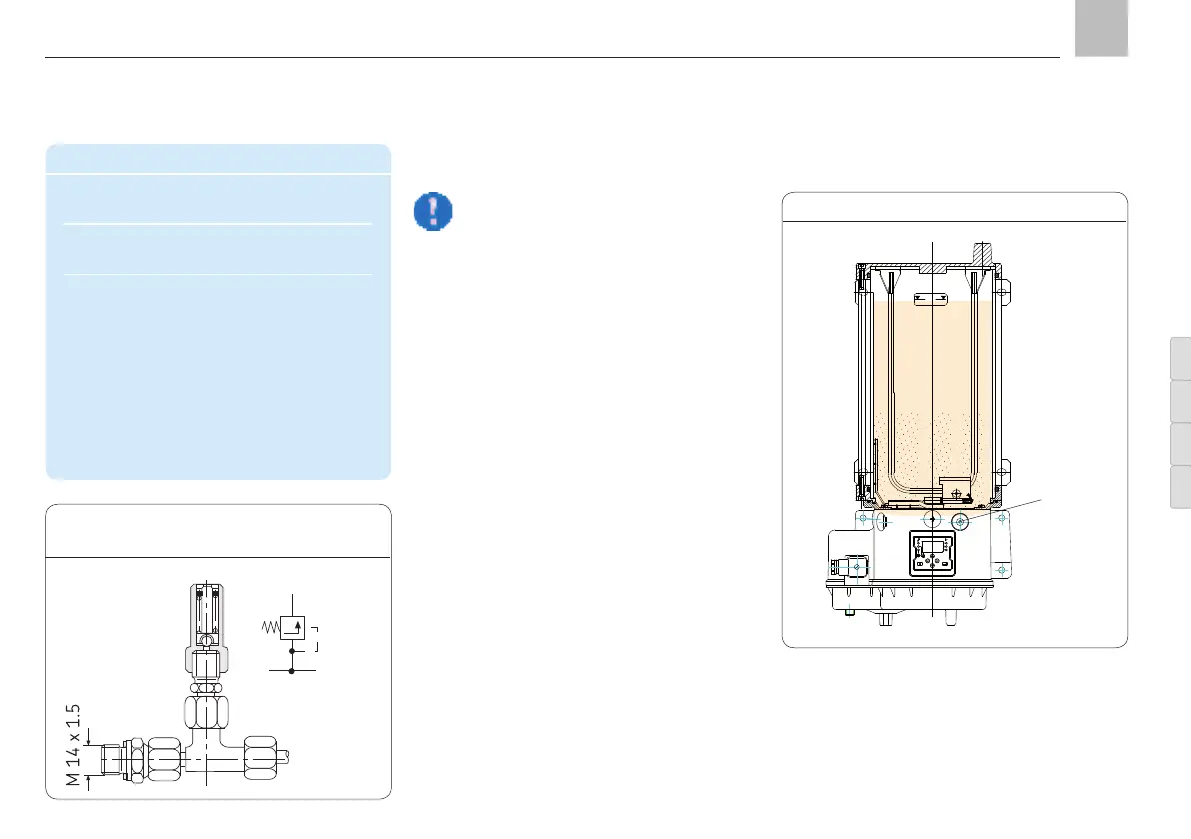

Pressure regulating valve with T connector, Fig.
11
R
A
P
R
P
A
 
Only fill using clean lubricant and an
appropriate filling device. Contaminated
lubricants can result in severe system
malfunction.
Nominal pipe
dimensions
Ø: 6-, 8-, 10 mm

The lubricant is filled on the housing via a lu-
bricant nipple (1 ).
Lubricant can alternatively be filled via a filler
coupling (see section 4.4.2).
Lubricant can optionally be filled via a filler
socket (see section 4.4.3), which is likewise
mounted on the reservoir housing. When filling
in this way, make sure that air pockets do not
form in the lubricant in the pump reservoir
during the filling process.

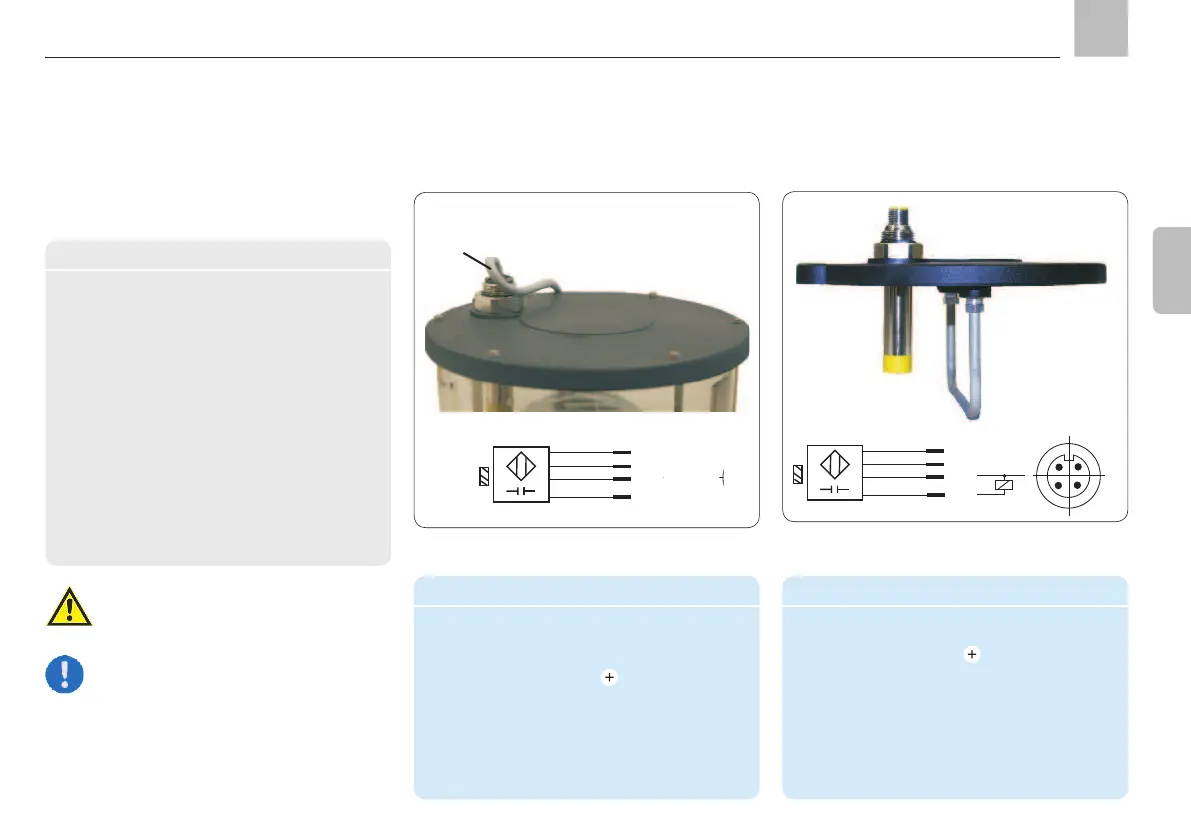

Filling, Fig. 12
max
1
KFG KFGS KFGL KFGC
Page 27
EN
Assembly instructions
