4.6 KFG power supply and connections
The KFG pump unit is available in the voltage
designs 12 VDC and 24 VDC. The electrical
voltage connection is established through
a 4-pin cable socket according to
DIN EN 175301-803.
There may be an additional connector for fill
level control on the pump housing, depending
on the pump unit model. This is to be connect-
ed by the customer. The standard connections
are presented below (variations possible in the
case of special designs).
4.6.1 KFG power supply
2
3
1
1
KFG...DC
23
X1
+
M
-
15
31
F
Connector pin assignment 12/24 VDC
PIN Description
1
(Ground) = 31
2
(Power) = 15 Supply voltage
potential (ignition ON)
Cable socket per
DIN EN 175301-803
4.6.2 External control units
The external control units listed in
Chapter
16 are designed to control the
lubrication and interval times, as well as
to monitor the lubrication process.
The operating instructions/functional
description of the corresponding control
unit must be observed.
KFG

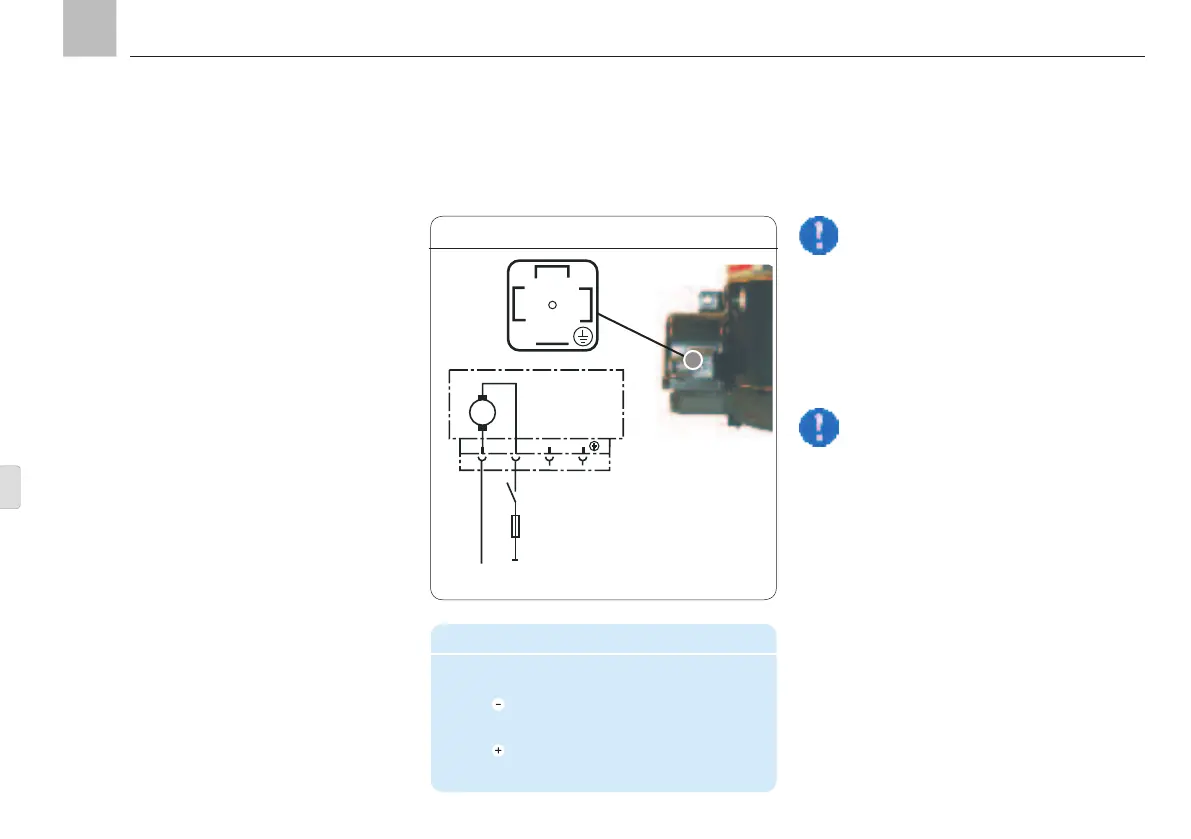

KFG power supply, Fig. 16
