4.5 Electrical power supply
Warning!
Compare the operating voltage with the

Operating voltage
4.5.1 General conditions for electrical connections
1) Protective measures that must be applied for designated usage:
"Functional Extra Low Voltage", "Protective Extra Low Voltage" (PELV)
Standards: EN 60204 Part 1: IEC 60204-1: DIN VDE 0100 Part 410 / IEC 364-4-41: HD384.4.41
2) Typical value at ambient temperature = 25 °C and operating pressure = 150 bar
3) Fuse in accordance with DIN 72581 T.3
4) Conductor: cross-section 1.5 mm
2
, length ≤ 12 m
5) No specification

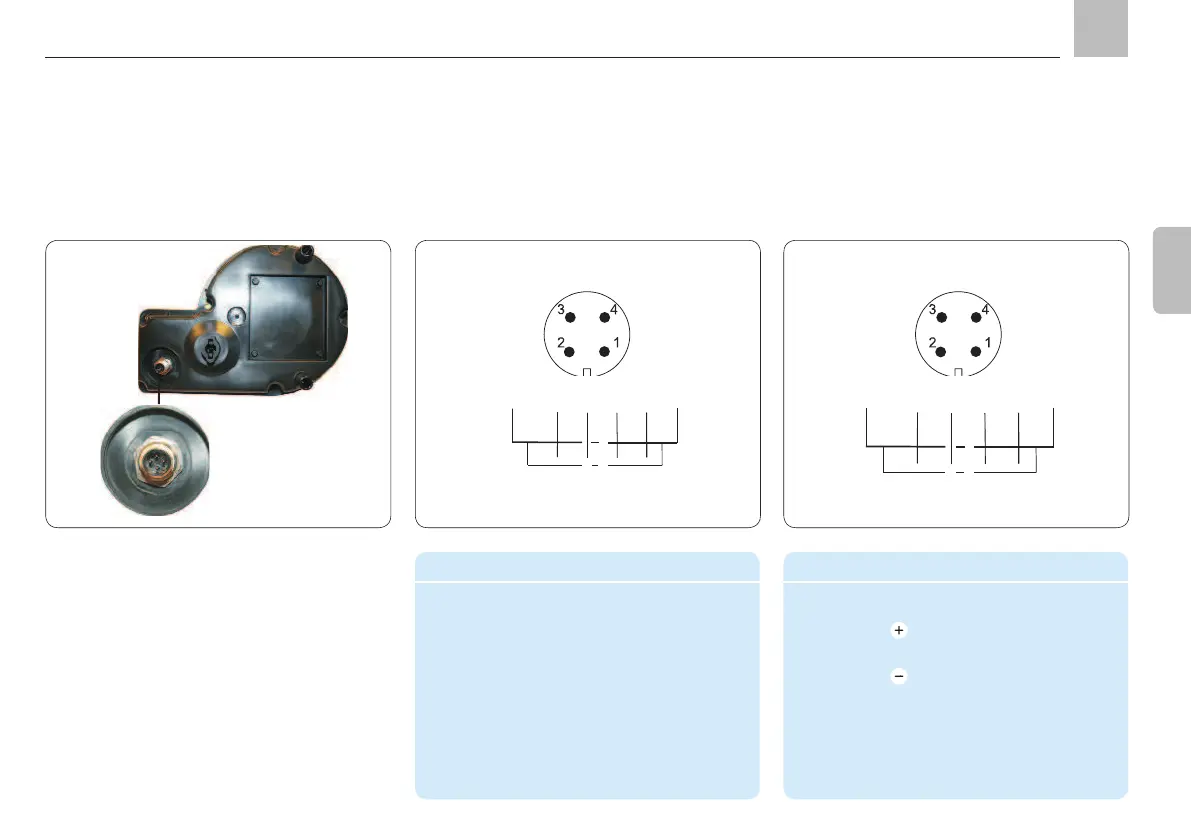

The pump units in the KFG series are available
in voltage designs 12 VDC and 24 VDC.
The electrical voltage connection is established
through a 4-pin cable socket according to
DIN EN 175301-803 or a 7-pin circular
connector according to DIN 72585.
KFG KFGS KFGL KFGC
KFG; KFGS; KFGL; KFGC, General conditions for electrical connections
Nominal Power Power Pump Max.
Voltage consumption consumption starting current back-up fuse
(load-dependent) (max.) (ca. 20 ms)
12 VDC
1
) 2.4 A
2
) < 5 A 9 A 5 AT
3
)
4
)
24 VDC
1
) 1.25 A
2
) < 2.5 A 4.5 A 3 AT
3
)
4
)
KFGC (CAN bus)
Switching outputs: Type: Solid-state output, short-circuit-proof and overload-proof
Max. current-carrying capacity: - with simultaneous operation of 4 outputs 1.0 A
- with simultaneous operation of 2 outputs 1.25 A
- with operation of 1 output 1.5 A
Modes of operation: - Single operation
- Parallel connection of multiple outputs while simultaneously
increasing output current
Signal inputs: Type: digital solid-state input, short-circuit-proof
Connectivity: - Switching contact, no detection of wire breakage
- Dual wire sensors (e.g., piston detector), detection of wire
breakage

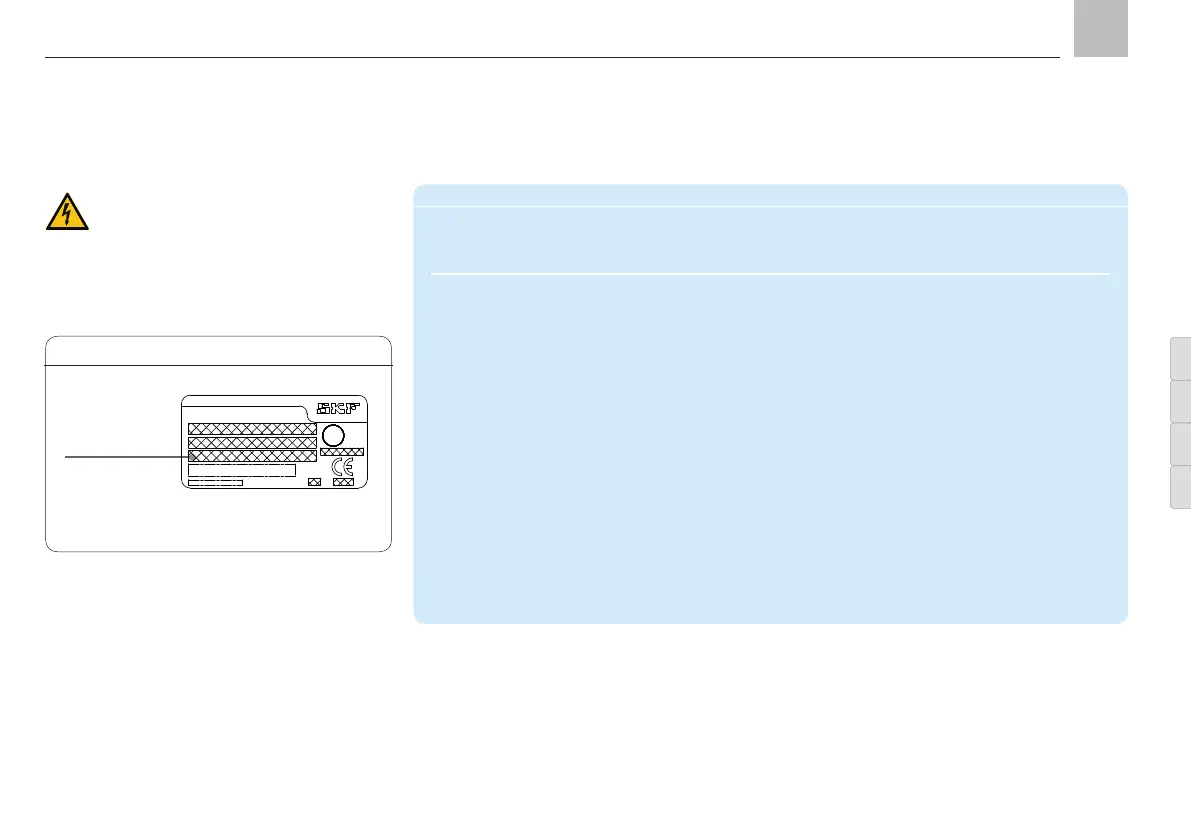

Operating voltage rating plate, Fig. 15
Page 29
