9.1.2 LED display

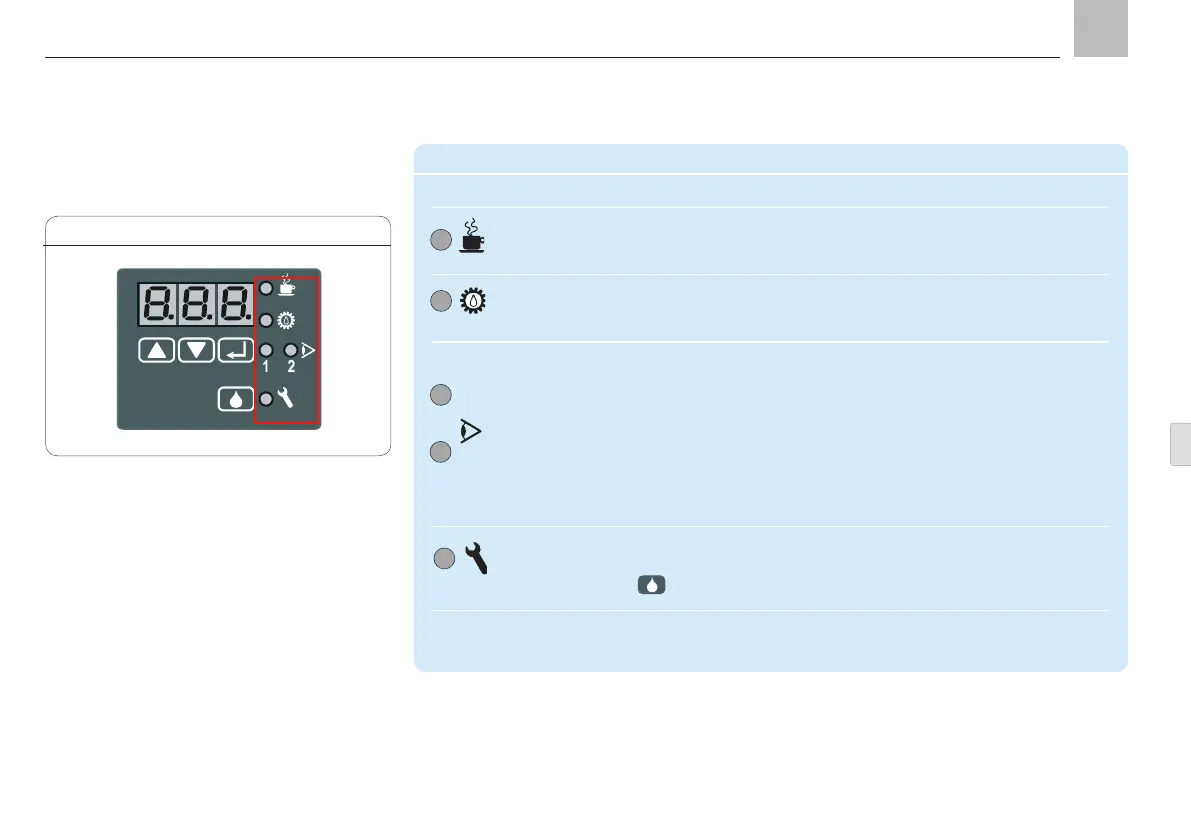

LED display, Fig. 13
9. KFGS control unit
KFGS
LED display
LED LED lights up = display mode LED flashes = programming mode
The operating voltage is present on the pump unit and control unit. The control unit is in
operating status FAULT. The cause can be accessed via the LED display and shown as a fault
code by pressing the pushbutton. The operational sequence has been stopped.
Value for PAUSE can be changed.
Value for CONTACT can be changed.
Monitoring type can be switched off in pro-
gramming mode.
COP = CS monitoring is active
COP = OFF monitoring is switched off
Operating voltage is present on pump unit
and control unit, system is currently in
operating status PAUSE
Operating voltage is present on pump unit
and control unit, system is currently in oper-
ating status CONTACT (pump motor ON)
A cycle switch (CS) is used for system
monitoring. On progressive feeders,
monitoring is performed during the pump
cycle (CONTACT).
The LED lights up when a signal is received.
System monitoring using pressure switch
(PS)
1
CS
PS
