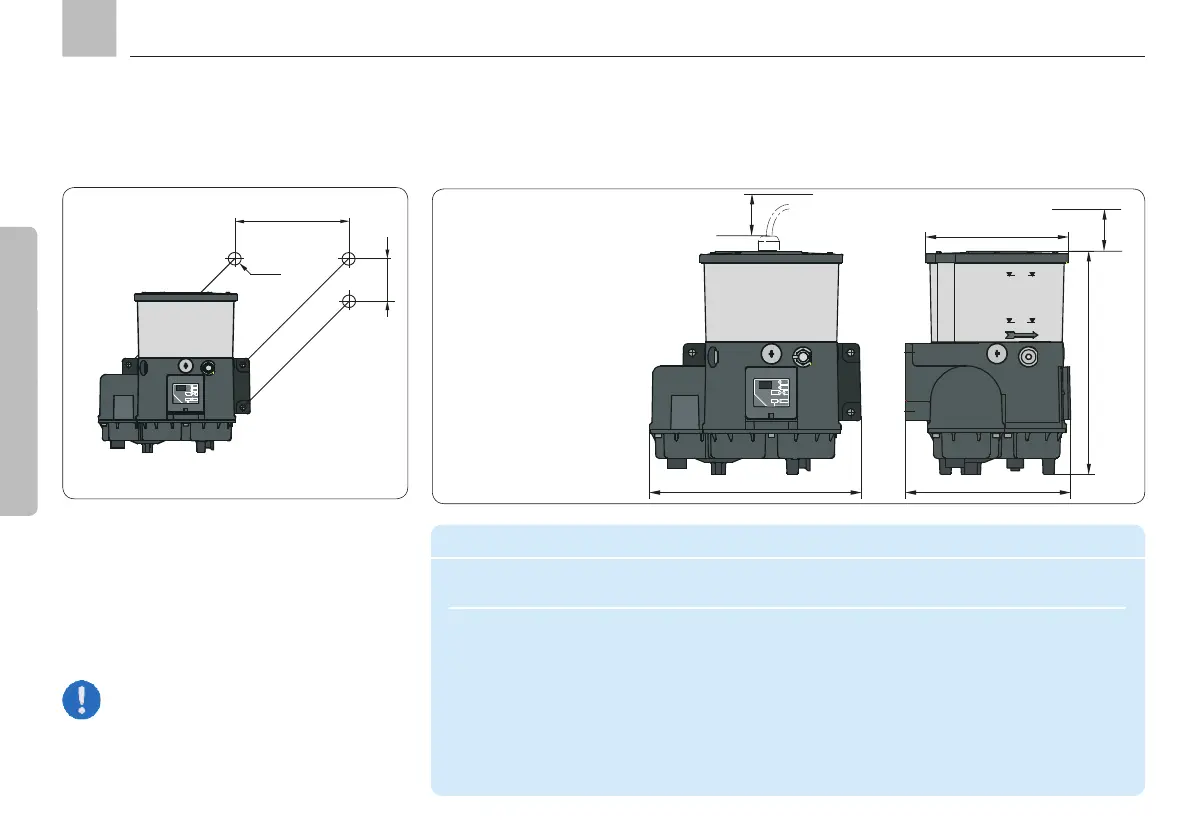

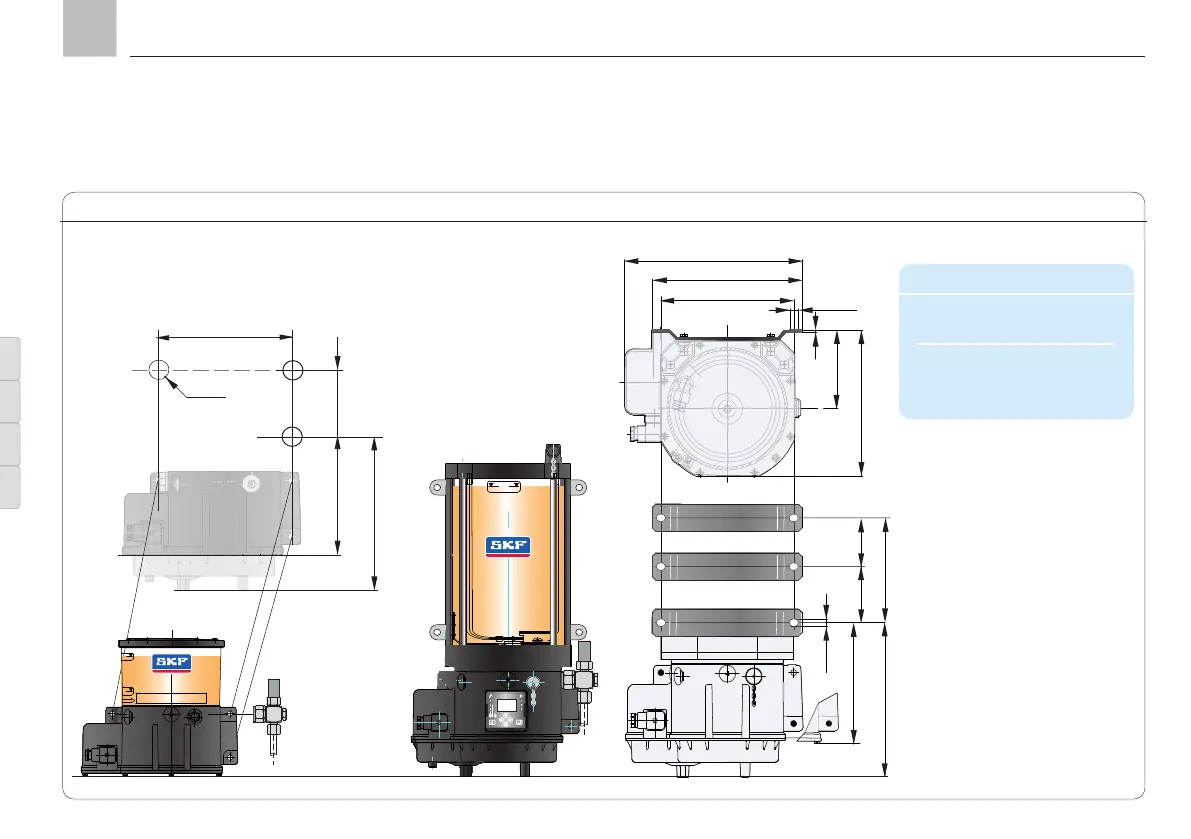

Mounting dimensions
Description Reservoir capacity A B C D Weight [kg] with full
[kg] [mm] [mm] [Ø mm] [mm] Lubricant reservoir
KFG1-5... 2 210 230 180 226 7
KFG3-5...
6 210 412 226 226 11
KFG5-5... 10 210 585 205 226 15
KFGS1-5...
1
) 2 210 282 180 226 7
KFGS3-5...
1
) 6 210 464 226 226 11
KFGS5-5...
1
) 10 210 637 205 226 15
4.2.1 Assembly holes 4.2.2 Mounting dimensions
1) KFGS-_5.. . . . . . ....- 12 VDC or 24 VDC =pump unit
with control unit and supply volt-
age of 12 or 24 VDC
KFGS-_5.. . . . . . ....- 230 VAC= pump unit with control
unit and supply voltage of 90 to
264 VAC
Minimum mounting clearance
E = 20 mm
The minimum clearance height for
installation depends on the reservoir
design. Add another 20 mm to allow
for the total pump height.
KFGS
KFG
KFGC
Assembly instructions
