6. Functional description in progressive systems
6.2 Progressive system with a
KFGS or KFGL pump unit
The general functional description for progres-
sive systems with a KFG pump unit also applies
for the design with KFGS and KFGL pump
control.
The control unit integrated into the pump
-
uration, monitoring and connectivity options:
 Interval time and pump cycle time can
be adjusted independently, including on
monitored systems
 Recording of remaining intervals and
remaining lubrication times
 Data backup in case of voltage failure
 Non-volatile memory with PIN code
protection
 Connectivity for inductive piston detector
to monitor the feeder function
 Connectivity for external pushbutton
 

on display in case the level falls below
minimum
 Fault memory
2
3
5
7
10
8
6
1
4

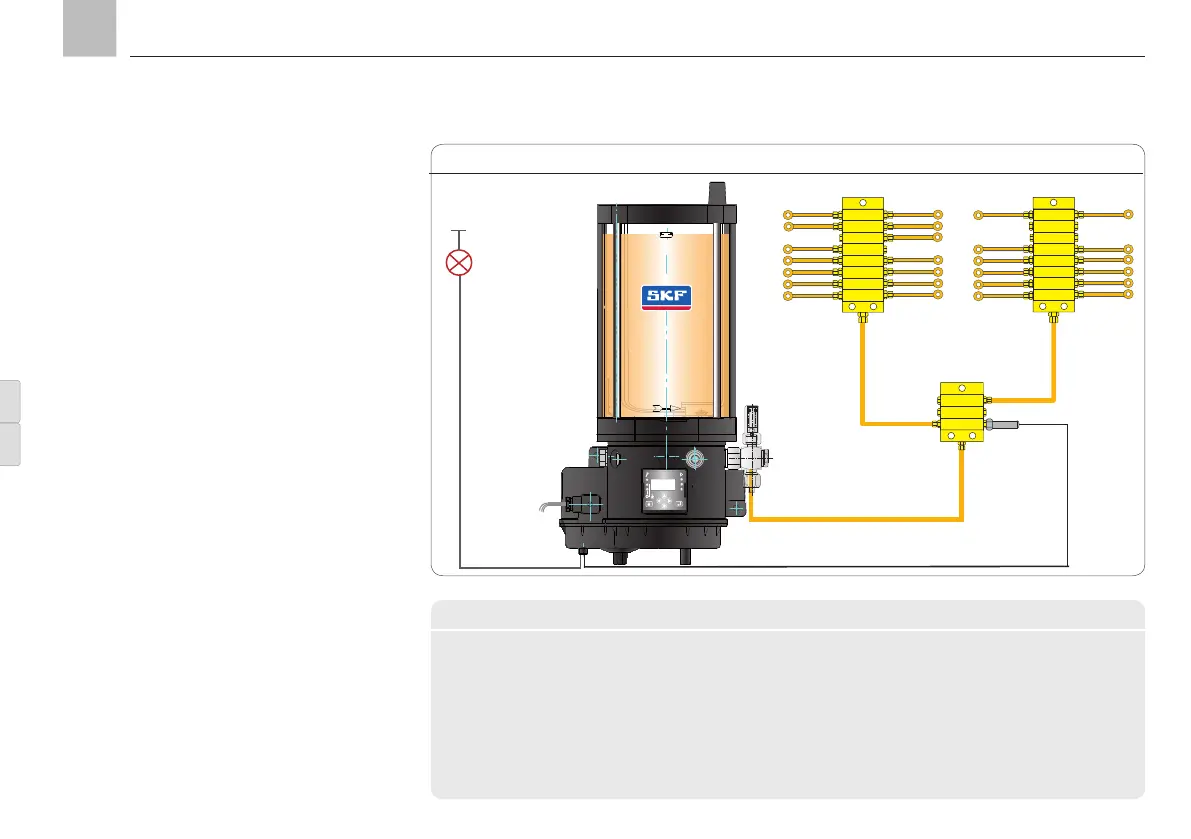

Example of progressive system with KFS/KFGL pump unit, Fig. 4
6
6
99
KFGS KFGL
Progressive system with piston detector
1 KFGS unit 6 Lubrication lines
2 Power supply 7 Piston detector
3 Fault indicator light 8 Master feeder
4 Fill level switch 9 Secondary feeder
5 Pump element with pressure regulating valve 10 Lubrication points
