SKF KFGL - Programming Ranges; 62 9.3.7 Display Ranges; KFGS Operating Modes; Timer Operation

9.3.6 Programming ranges
9.3.7 Display ranges
Programming ranges
Function Programming range
1
)
Interval time 0.1 h to 99.9 h
Pump cycle time 0.1 min to 99.9 min
Pulses 1 to 999
Display ranges
Function Display range
Fault hours 0.1 h to 99999.9 h
Operating hours 0.1 h to 99999.9 h
1) For the permissible setting range for KFG(S) 90-264 VAC,
see Technical Data, Chapter 13.

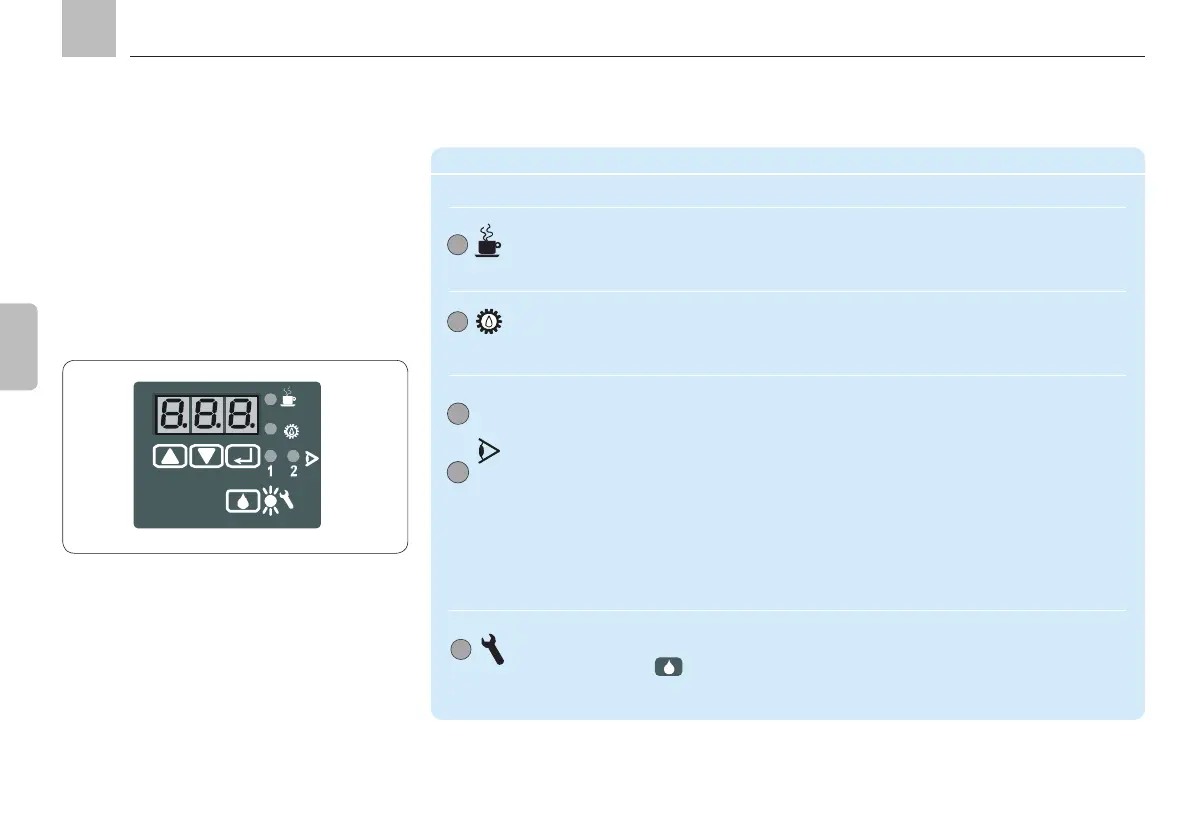

9.4.1 Timer operation
The interval and pump cycle are
time-dependent.
The lubrication cycle is controlled by the pre-
set, time-dependent values for PAUSE and
CONTACT.
PAUSE: Values in hours
CONTACT: Values in minutes
Set tPA and tCO in programming
mode.
9.4 KFGS operating modes
9.4.2 Counter operation
The interval depends on the number of pulses;
the pump cycle time is time-dependent.
An external pulse generator must be attached
as described in Chapter 4 in the assembly
instructions.
PAUSE: Values in pulses
CONTACT: Values in minutes
A switch opens and closes based on machine
movements, revolutions, etc.
A lubrication is triggered once the set number
of pulses (cPA) is reached.
Set cPA und tCO in programming
mode.
