SKF KFGL - Pressure Relief Valve with Integrated Pressure Regulating Valve

4.10 Pressure relief valve with integrated pressure regulating valve
(for single-line systems with VR distributors)
Technical data
Pressure relief valve 12 VDC / 24 VDC
Input voltage ...........12 VDC 24 VDC
Rated output ...........26 W 26 W
Rated current . . . . . . . . . . 2,18 A 1.2 A
ON-time (at 35 °C) . . . . . . 100% 100%
Protection class .........IP 65 IP 65
Pressure regulating valve
Set pressure ............200 bar
1
)
Plug-in connection per DIN EN 175301803
Pressure relief valve 230 VAC
Input voltage ............230 VAC
Coil voltage..............205 VDC
Rated output ............26 W
Rated current . . . . . . . . . . .0.13 A
ON-time ...............100% at 35 °C
Pressure regulating valve
Set pressure ............200 bar
Protection class .......... IP 65
Plug-in connection per DIN EN 17530-803
Connector pin assignment per
DIN EN 17530-803
200 bar
P2
A
TP1
Hydraulic
block diagram
Electrical
block diagram
Connector pin assignment
PIN Description
1 = + (Current) Supply voltage
potential
2 = Ground
3 = PE
Note!
When VKR distributors are used, a max. set
pressure of 130 bar for the pressure regulating
valve must not be exceeded.
1
2
3
max
1) Pressure relief valve with set pressure 130 bar on request
KFG KFGS KFGL KFGC

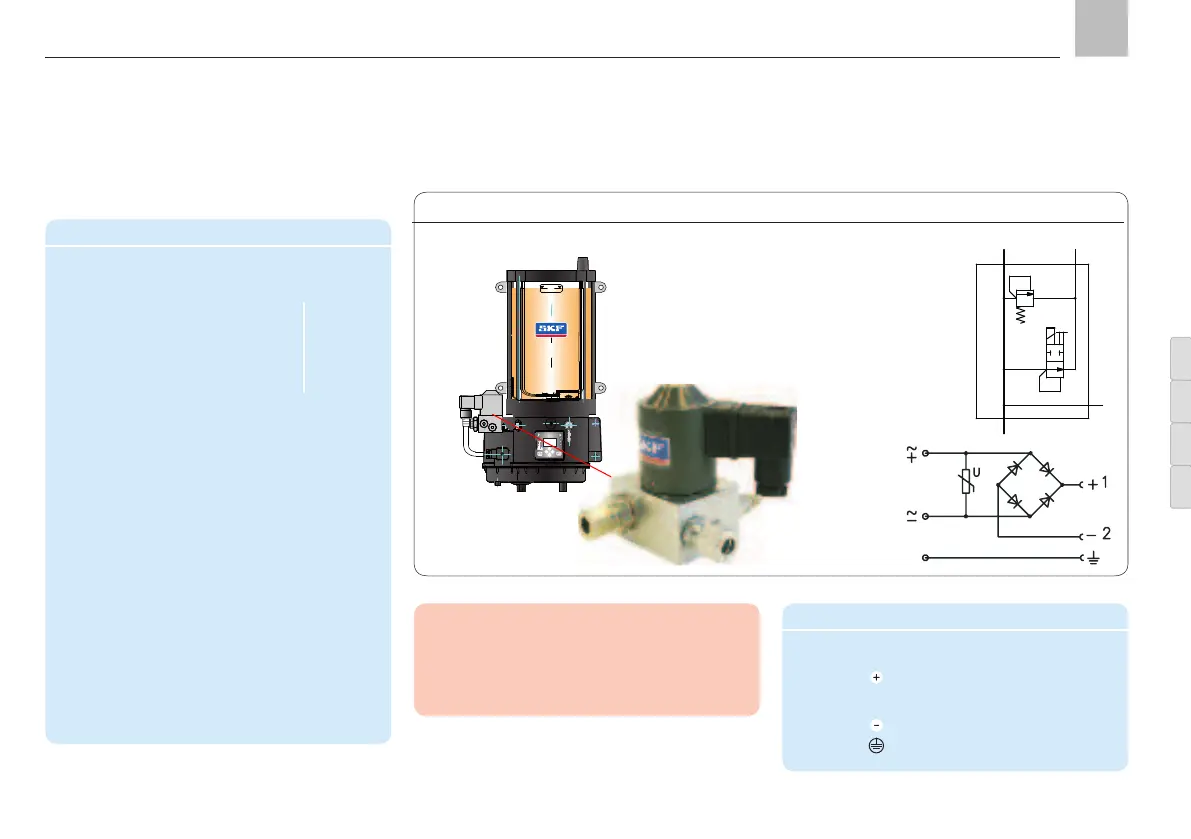

Pressure relief valve/pressure regulating valve, Fig. 30
Page 41
EN
Assembly instructions
