9.1.1 Three-digit LED display
The display is off in normal mode. It can be ac-
tivated by briefly pressing one of the two
pushbuttons
. Current values and
pre-set parameters are displayed. The display
also serves to guide and prompt the operator
while programming operating parameters.
9. KFGS control unit

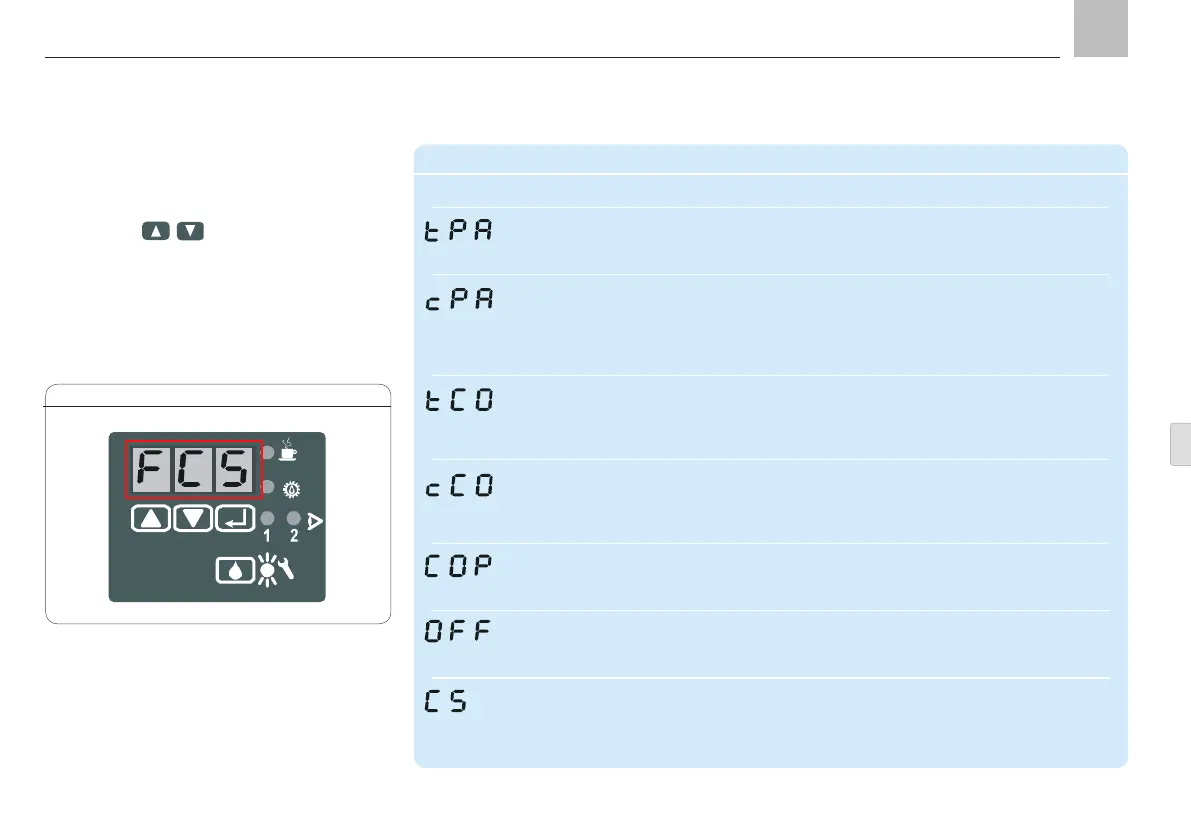

Three-digit LED display, Fig. 11
KFGS
Three-digit LED display
Display Meaning Statement Control function
t = TIMER
PA = PAUSE
c = COUNTER
PA = PAUSE
t = TIMER
CO = CONTACT
c = COUNTER
CO = CONTACT
C = Cycle
O = OFF
P = Pressure
Monitoring OFF
Cycle Switch
Piston detector
(progressive systems)
The control unit is functioning as
a timer and is currently in PAUSE
mode.
The control unit is functioning
as a counter and is currently in
PAUSE mode.
The control unit is functioning as
a timer and is currently in a pump
cycle (CONTACT).
The control unit is functioning as
a counter and is currently in a
pump cycle (CONTACT).
Display the "Monitoring settings"
menu
The CS and PS monitoring
functions are switched off.
Piston detector monitoring is
active.
Part of lubrication cycle;
entry and display value in
hours.
Part of the lubrication cycle;
the device counts the pulses
from the external timer and
compares them with the pre-
set values.
CONTACT = time during
which the pump delivers
lubricant; entry and display
value in minutes.
CONTACT = time during
which the pump delivers
lubricant; entry and display
value in pulses.
No system monitoring
The piston detector is mon-
itored for signals during the
CONTACT pump cycle.
