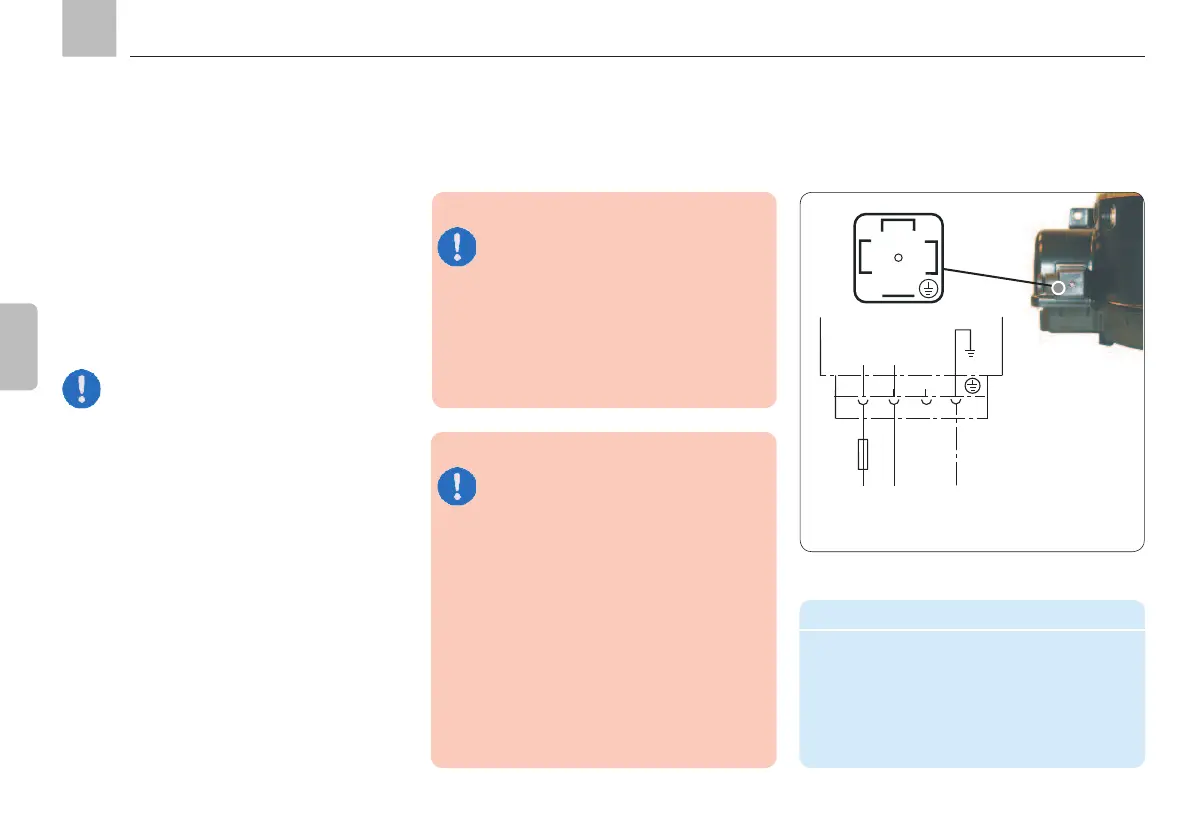

CAN bus connector pin assignment
PIN Color code Function
A YE Yellow CAN_H
B GN Green CAN-B
C BK Black CAN-SHLD
CAN bus connection,
plug type DEUTSCH
DT04-3P-L012
A
B
C
Reversing valve/piston
detector connection
(max. 6 connections)
Accessories for reversing valve/piston detector
Description Order No.
Wiring harness for pressure
relief valve on pump side,
approx. 0.4 m 179-990-847
Wiring harness for piston
detector or pressure switch,
approx. 5 m 179-990-719
34
1 2
Reversing valve/piston detector connector pin assignment
PIN Color code Input CS2/CS3 Output VT1 to VT3
1 BN Brown + NC
2 WH White NC NC
3 BU Blue NC -
4 BK Black - +
KFGC

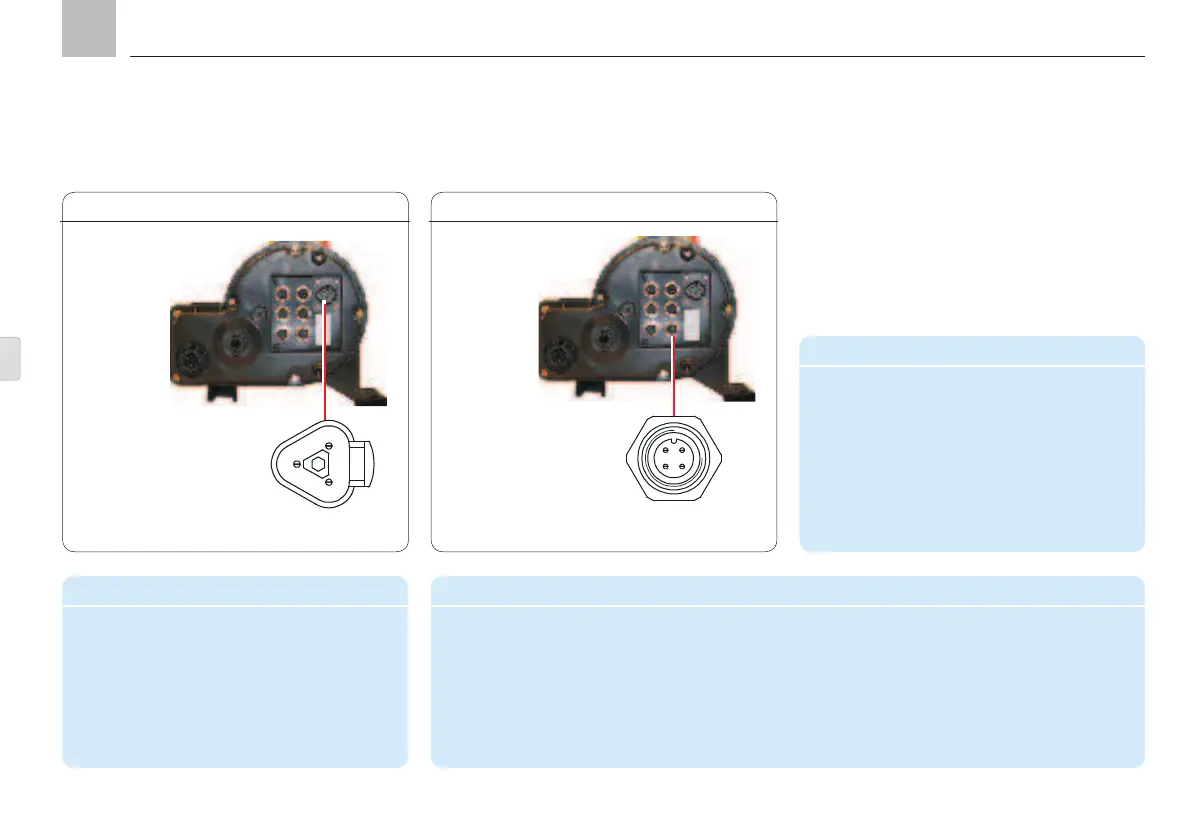

KFGC CAN connector, Fig. 26 M12x1 connector, Fig. 27
Page 38
EN
Assembly instructions
