CONTROLS, INSTRUMENTS AND EQUIPMENT
108
19) Rewind Starter Handle (If Equipped)
Auto-rewind type located on right hand side of snowmobile.
To engage mechanism, pull handle slowly until a resistance is
felt then pull vigorously. Slowly release handle.
Note: The maximum torque that can be transmitted to the
engine by the rewind starter is 80 Nm (59 lbf-ft). The maximum
force that can be exerted on the on the rope is 2 200 N
(494.6 lbf).
20) Heated Seats Switch (On Applicable
Models)

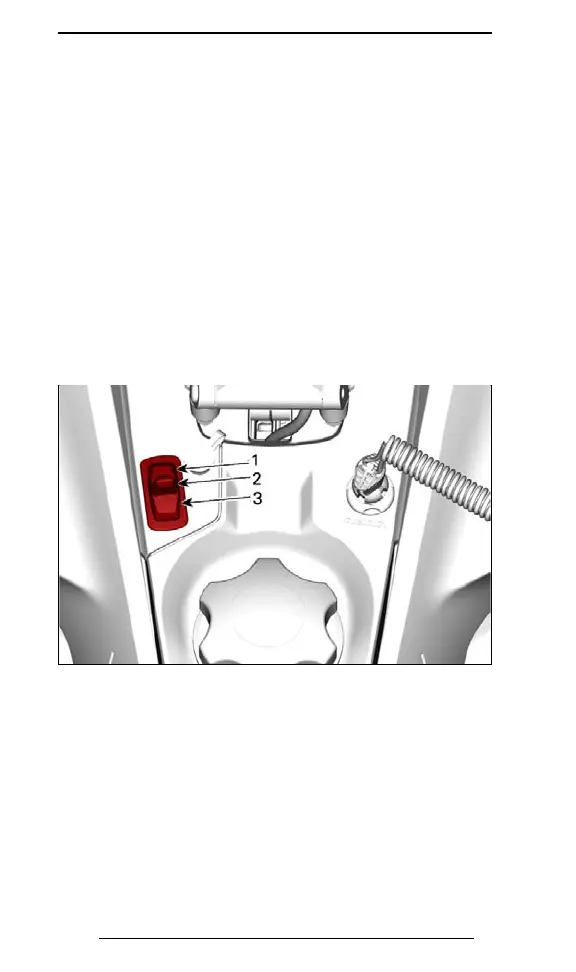

The heated seat switch is located on the console to the left of
the steering column.
520001896-013_a
ENDURO MODELS
1. Hi
2. OFF
3. Low
