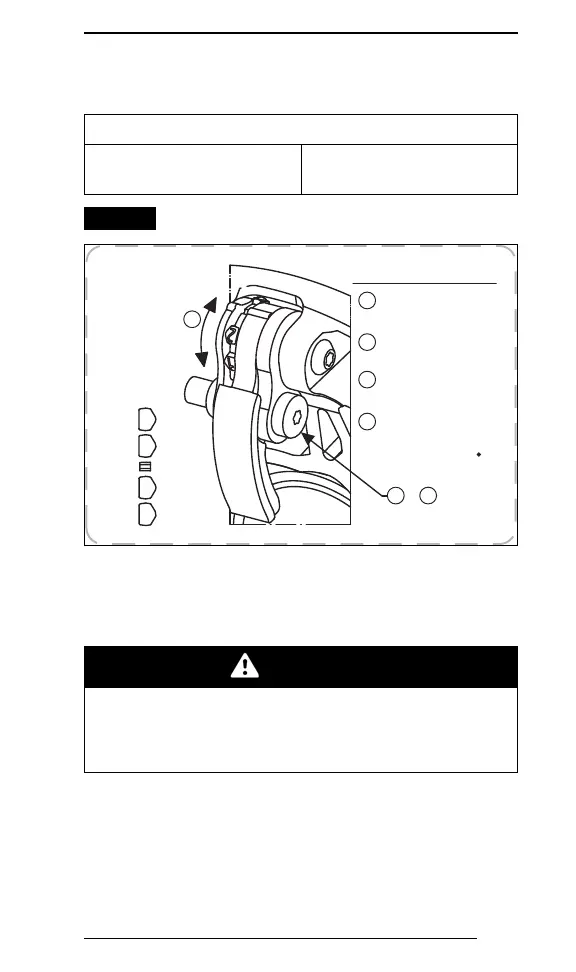

6. Tighten the pivot screw.
Tightening Torque
Pivot
5 ± 1 Nm
(44 ± 9 lbf-in)
NOTICE Always adjust all 3 cams to the same setting.
-REMOVE
TETHER CORD
-LOOSEN BOLT
-ADJUST CLICKER
-TORQUE BOLT
( 7 @ 9 Nm )
( 62 @ 80 lbs in )
CLICKER ADJUSTMENT
1
2
3
4
&
2
4
LOWER RPM
( 1 & 2 )
HIGHER RPM
( 4 & 5 )
3
1
2
3
4
5
5
4
2
1
DEC-516009265-EN
Track
Track Condition
WARNING
Remove tether cord cap from engine cut-off switch before
performing any maintenance or adjustment, unless oth-
erwise specified. Vehicle must be parked in a safe place,
away from the trail.
Remove tether cord cap from engine cut-off switch.
Lift the rear of the snowmobile and support it with a wide-base
snowmobile mechanical stand with a rear deflector panel. With
the engine off, rotate the track by hand, and inspect condition.
If worn or cut, or if track fibers are exposed, or if missing or
