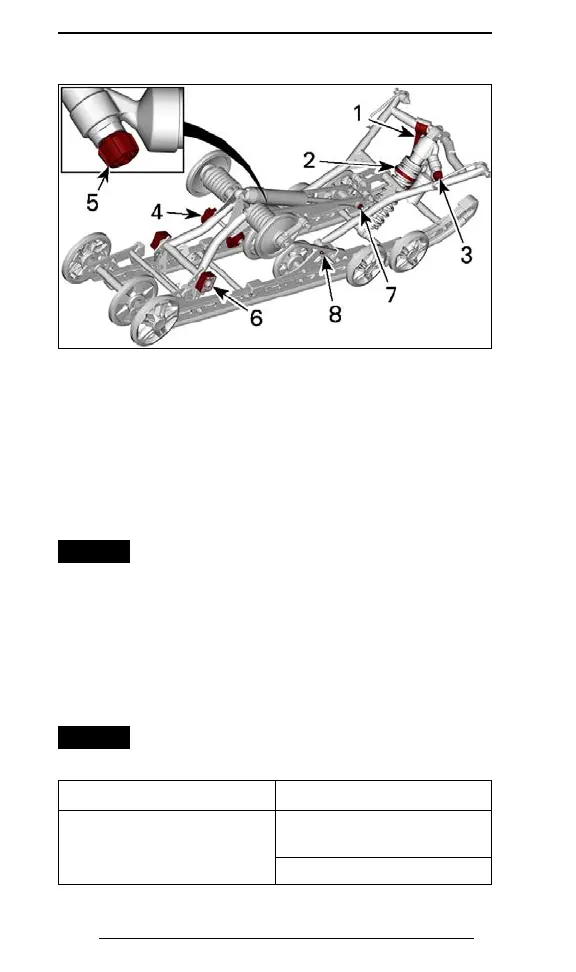

RMOTION WITHOUT QUICK ADJUST- ADJUSTABLE COMPONENTS
1. Stopper strap
2. Center spring
3. Center shock absorber
4. Rear spring
5. Rear shock absorber
6. Coupling blocks (RH side shown)
7. Rear shock lower pivot (rMotion and rMotion-X)
8. Front arm (rMotion-X)
NOTICE Whenever adjusting rear suspension, check track
tension and adjust if necessary.
Stopper Strap
Stopper strap length has an effect on the amount of weight
the center spring has to carry especially during acceleration,
therefore on the front end uplift.
Stopper strap length also has an effect on center spring travel.
NOTICE Whenever stopper strap length is changed, track
tension must be checked.
Action Result
Increasing stopper strap
length
Lighter ski pressure under
acceleration
More center spring travel
