TUNE YOUR RIDE
134
mmo2015-007-103_b

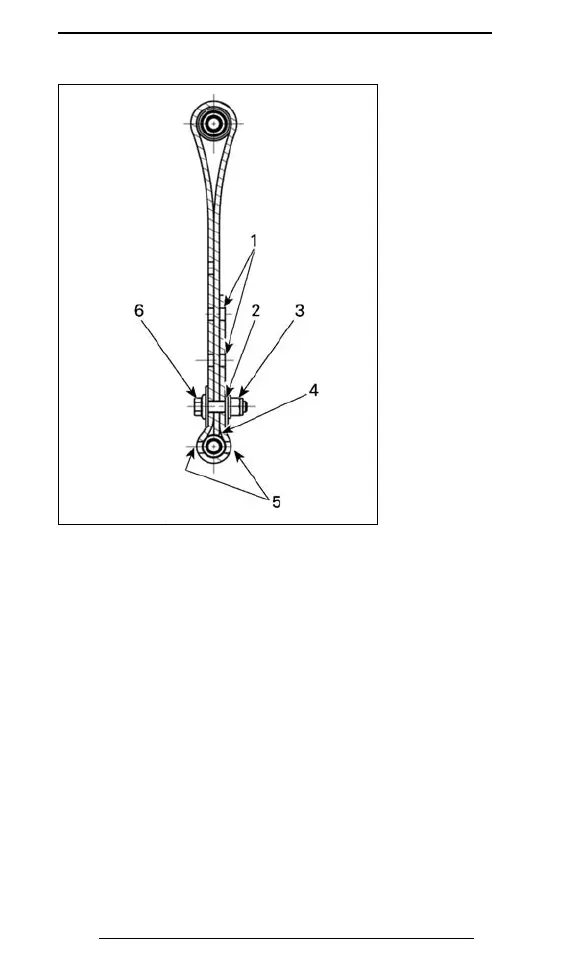

STOPPER STRAP POSITION 3 (3RD HOLE)
1. Free holes
2. 3rd hole from end
3. Towards rear
4. Tip of strap touching strap axis
5. Two holes left open between screw head and nut
6. Towards front
Note: Decreasing the stopper strap length may reduce com-
fort. If too much weight transfer is felt, try to correct it by
adjusting the coupling blocks first. Always install stopper strap
bolt as close as possible to the lower shaft.
When operating the snowmobile in deep snow, it may be
necessary to vary stopper strap length and/or riding position,
to change the angle at which the track rides on the snow.
Operator's familiarity with the various adjustments as well as
snow conditions will dictate the most efficient combination.
