MAINTENANCE PROCEDURES

178

520001663-011_a

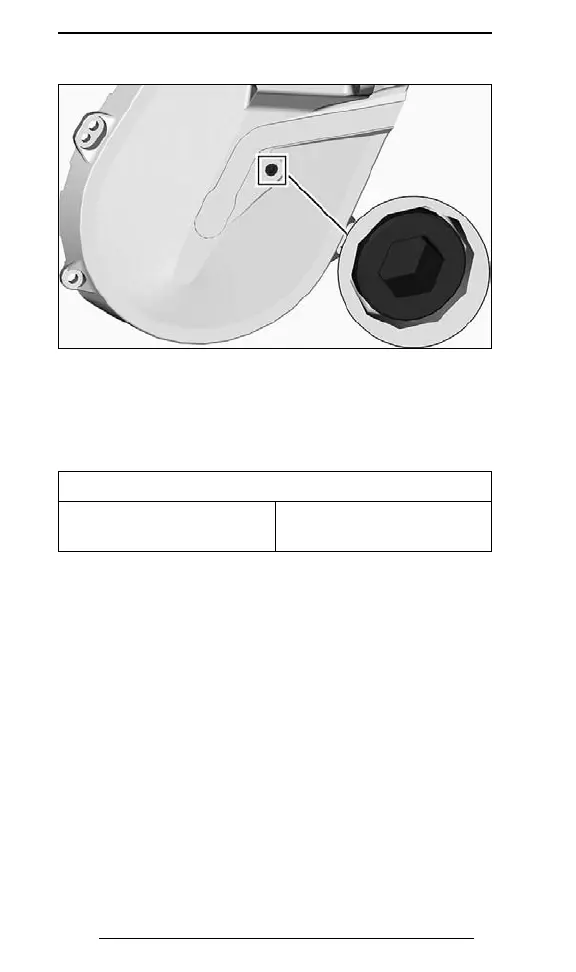

CHECK PLUG

Oil level must reach the threaded hole.

If level is correct, reinstall check plug and tighten to the

specified torque.

Tightening Torque

Check plug

6 ± 1 Nm

(53 ± 9 lbf-in)

If level is insufficient, See CHAINCASE FILLING PROCEDURE.

Chaincase Filling Procedure

Remove the check plug.

Table of Contents5
