Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 131
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description
A 124548 - PIN ASSEMBLY, Quick release large loop
B 124547 - PIN ASSEMBLY, Quick release small loop
1 100509 1 • PIN, Quick release (3/8” DIA x 1.688”)
2 105807 1 • LANYARD, Plastic coated (6”)
C 137217 - PIN ASSEMBLY, Long
3 105807 2 • LANYARD, Plastic coated (6”)
4 103055 1 • PIN, Cotter Hair
5 137086 1 • PIN, Ring (1/2” DIA x 4.125”)
D 137087 - PIN ASSEMBLY, Short
6 105807 2 • LANYARD, Plastic coated (6”)
7 103055 1 • PIN, Cotter Hair
8 137084 1 • PIN, Ring (1/2” DIA x 2.75”)

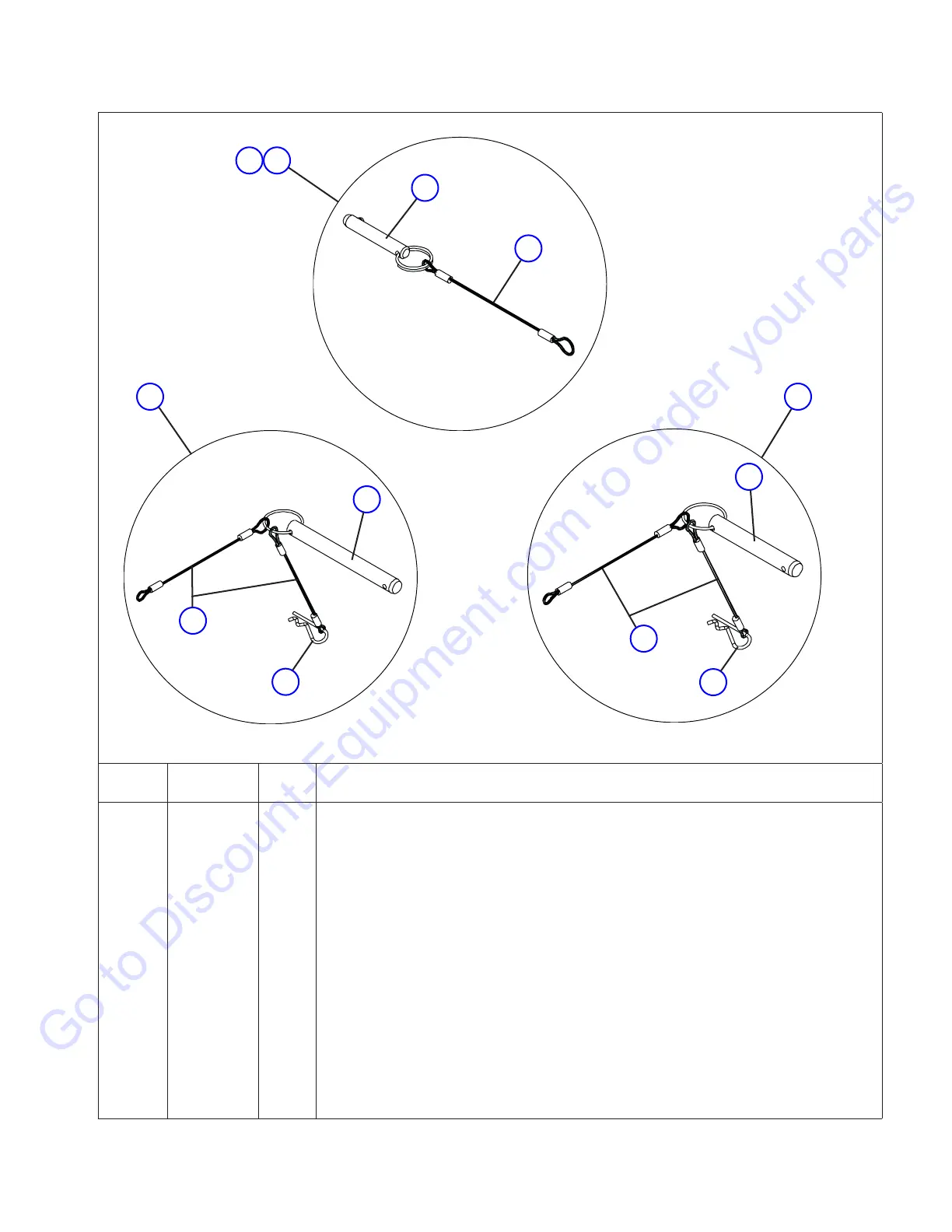

Figure 6.1-6. Quick Release Pins
M124548AB M137217AA M137087AA
C
4
5
A
D
2
1
6
3
7
8
B
AD
Go to Discount-Equipment.com to order your parts
