Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 246
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description
M146098AA
- 146098 - ASSEMBLY, Hydraulic generator relay
1 146055 1 • BRACKET, Relay mount
2 127035 3 • RELAY, 12V 40 AMP
3 115545 3 • BOLT, Machine (#10-32*0.375)
4 104185 3 • WASHER, Lock (#10 NOM)
5 138053 1 • CONNECTOR, Male 12 pin
6 120094 2 BOLT, Machine (#10-32*5/8)
7 104694 2 WASHER, Flat (#10 S.A.E)
8 104185 2 WASHER, Lock (#10 NOM)
9 104003 2 NUT, Machine (#10-32 grade B)
10 (Ref.) 2 DOOR, Instrumentation panel
(Refer to Figure 6.3-15)
L 146083 1 LABEL, Relay names outrigger & hydraulic generator

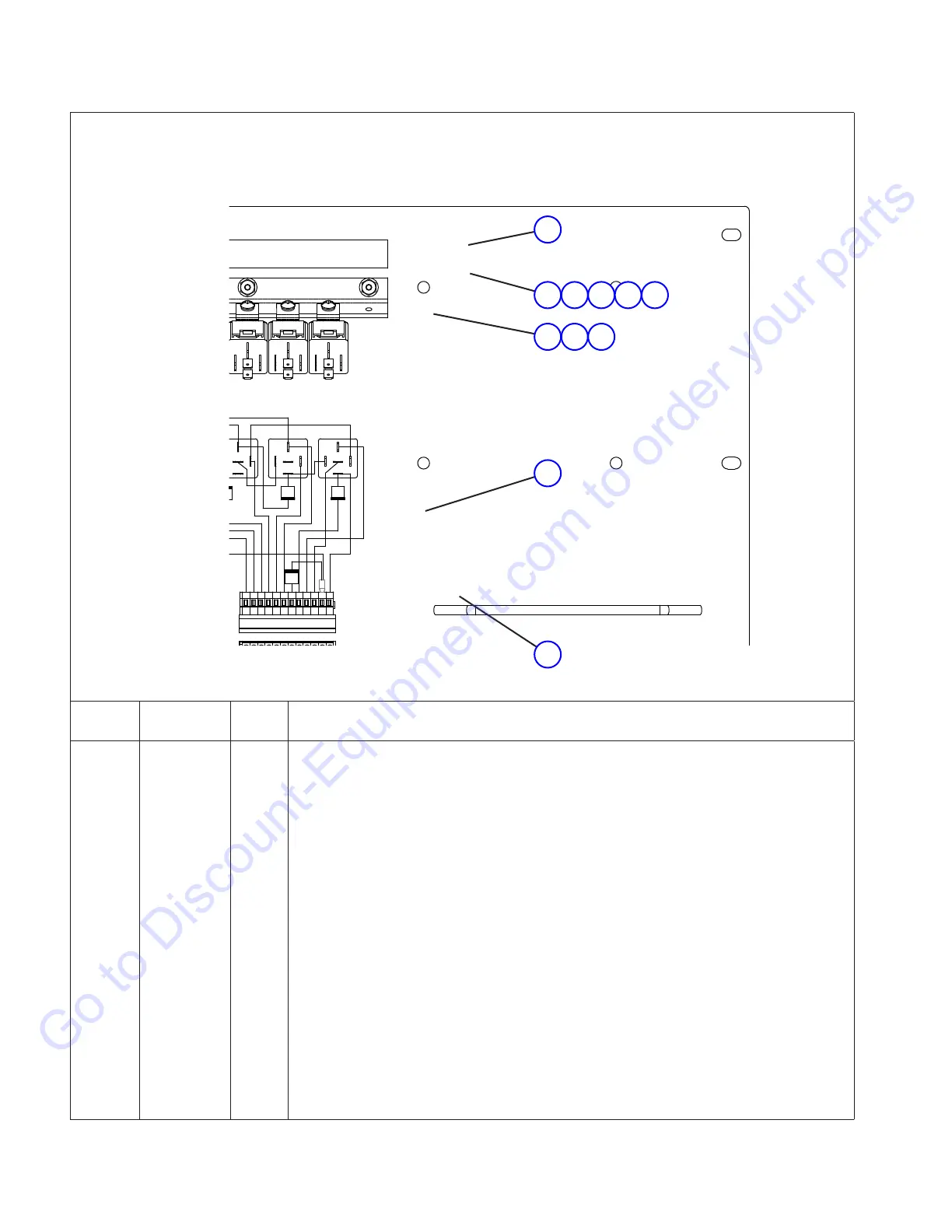

Figure 6.5-12. Hydraulic Generator Relay Assembly
AC
86B
86ACR
86BCR 86CCR
86B 86C
86C 86D
85 4309
86A
43A
2A 02
D86C D86D
D14
02
14CR
86CCR86ACR 86BCR
1 6 7 8 9
2 3 4
5
L
10
Go to Discount-Equipment.com to order your parts
