Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 167
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

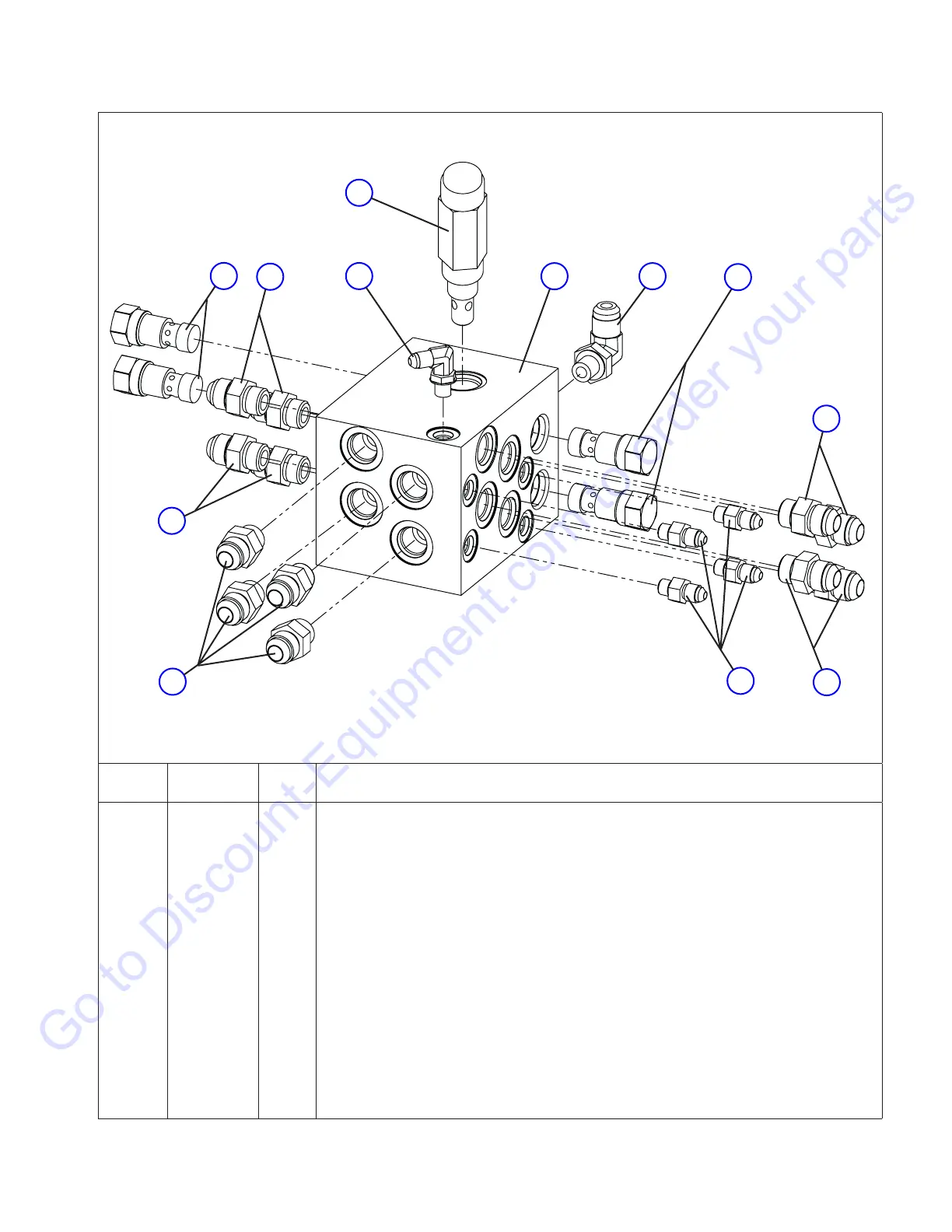

Figure 6.3-5. Splitter Manifold
M138045AD
- 138045 1 SPLITTER MANIFOLD ASSEMBLY
1 139450 1 • MANIFOLD, Splitter with plugs
2 114582 1 • FITTING, 6-8 O-ring elbow
3 104624 4 • VALVE, Pilot Check
4 102659 12 • FITTING, Connector (8 SAE - 8 JIC)
5 126128 4 • FITTING, Connector (4 SAE - 4 JIC)
6 125883 1 • FITTING, Hydraulic 90° (04MJ04MB)
7 139683 1 • VALVE, Relief
1
4
6
5
4
4
4
4
3
2
3
7
