SKYJACK, Page 150
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

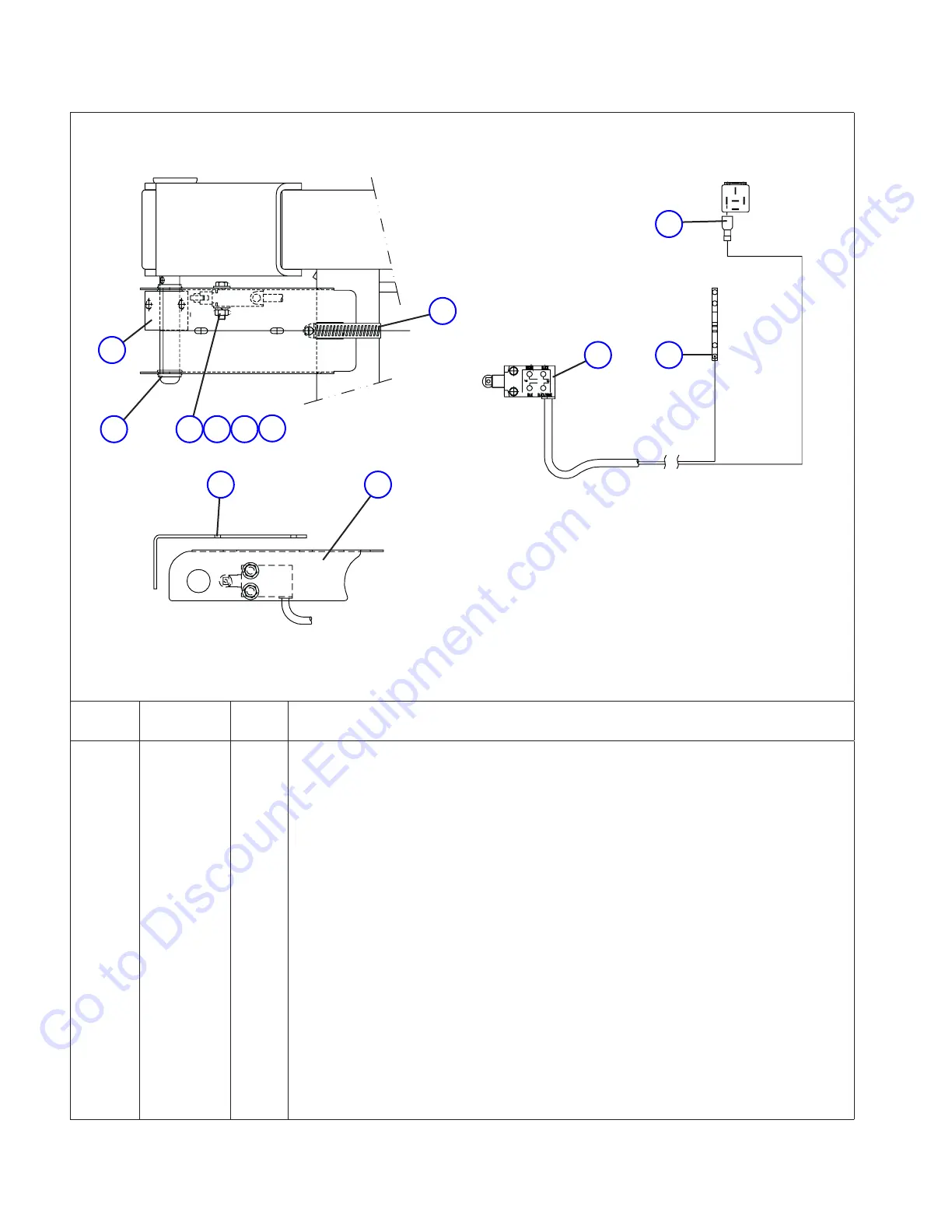

Figure 6.2-5. Limit Switch Assemblies
M138073AA
1 105359 1 TERMINAL, Female (14-16GA x 1/4”)
2 115401 1 FERULE, 18GA Red
3 122010 1 SWITCH, Drilled Sealed Limit
4 121867 1 BRACKET, Limit Switch
5 121868 1 GUARD, Limit Switch
6 121869 1 CLAMP, Worm Gear (2.5”)
7 104000 AR WASHER, Lock (1/4”)
8 103858 AR BOLT, Hex Head (1/4”-20 x 1.25”, Grade 5)
9 103995 AR WASHER, Flat (1/4”)
10 103980 AR NUT, Hex (1/4”-20, Grade B)
11 121908 2 BUSHING, Snap-in (3/4”)
12 100967 1 CAM, Limit Switch
1
2
12
11
10
987
6
5 4
3
