SKYJACK, Page 195
SJRT Compact Series
Engine Powered

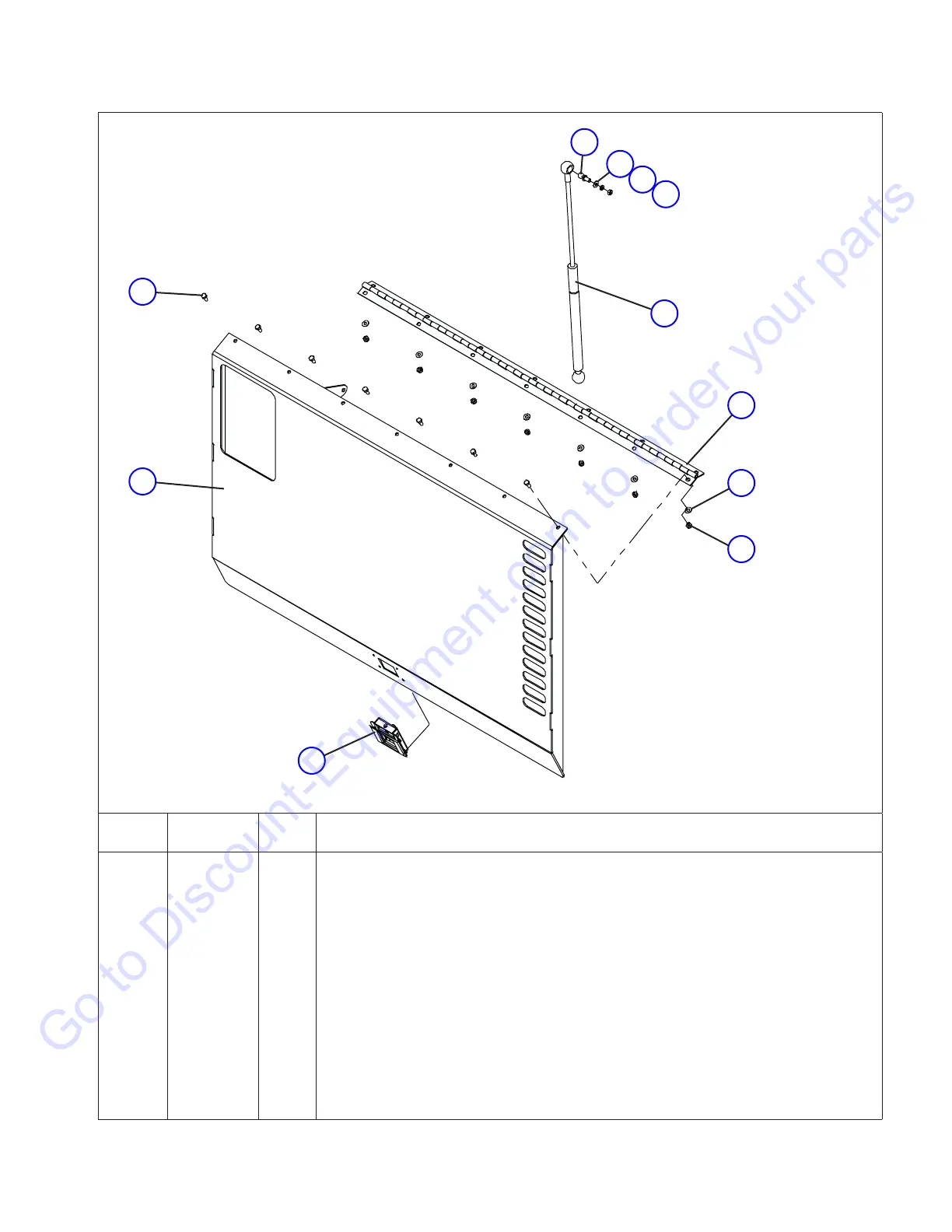

Figure 6.3-20. Engine Door Assembly
M138040AC
- 138040 - ENGINE DOOR ASSEMBLY
1 137017 1 • DOOR, Engine cabinet
2 103892 AR • BOLT, Hex head (1/4”-20 x 5/8”, Grade 5)
3 138026 AR • STUD, Ball (13mm)
4 103996 1 • WASHER, Flat (5/16”)
5 103404 1 • WASHER, Lock (5/16”)
6 103984 AR • NUT, Hex nylon lock (5/16”-18, Grade 5)
7 137183 1 • GAS SPRING, (10” stroke)
8 136996 1 • HINGE, Cabinet door
9 103995 AR • WASHER, Flat (1/4”)
10 115649 AR • NUT, Hex nylon lock (1/4”-20, Grade 5)
11 137005 1 • LATCH, Sliding with trimplate
1
2
6
5
4
3
11
10
8
7
9
