Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 194
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

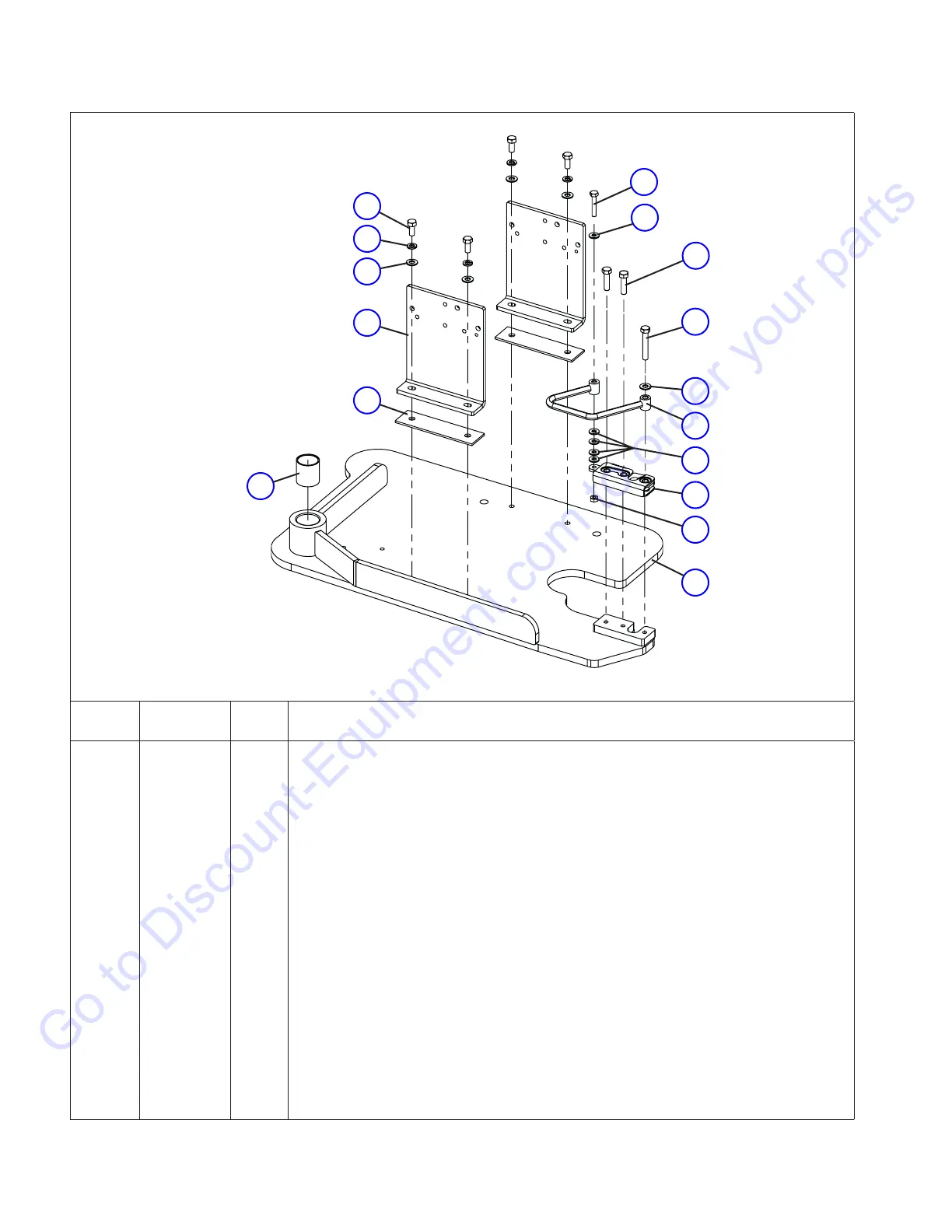

Figure 6.3-19. Tray Engine Assembly
M136394AC
- 136394 - ASSEMBLY, Tray engine DF972/D902
1 136387 1 • WELDMENT, Tray engine
2 115649 1 • NUT, Hex nylon lock (1/4”- 20 Grade 5)
3 112307 1 • LATCH, Rotary LH
4 103995 AR • WASHER, Flat (1/4”)
5 126634 1 • HANDLE WELDMENT, Tray Lock
6 103996 AR • WASHER, Flat (5/16”)
7 103865 1 • BOLT, Hex head (5/16”-18 x 2”, Grade 5)
8 103864 AR • BOLT, Hex head (5/16”-18 x 1”, Grade 5)
9 103860 1 • BOLT, Hex head (1/4”- 20 x 1.75”, Grade 5)
10 103887 AR • BOLT, Hex head (5/16”-18 x 3/4”, Grade 5)
11 103404 AR • WASHER, Lock (5/16”)
12 136077 2 • BRACKET
13 136976 2 • PAD, Rubber
14 125262 2 • BUSHING, Fiberglide (1-1/4” DIA x 1-1/2”)
1
2
12
10
7
6
5
4
3
14
13
4
6
11
8
9
