Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 235
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

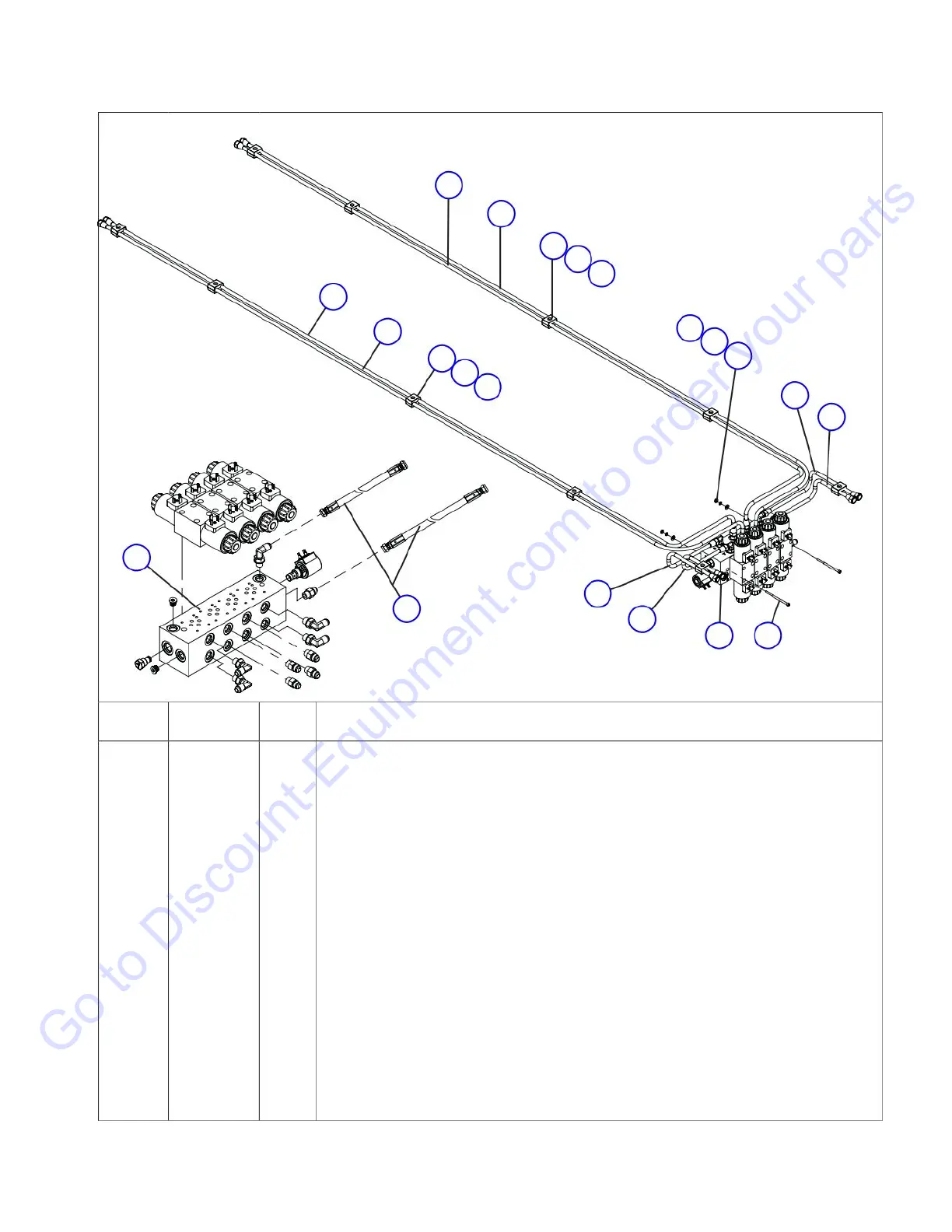

Figure 6.5-6. Outrigger Hydraulic Connections
M137539AB M138075AB_2
1 137536 1 TUBE ASSEMBLY, Hydraulic outrigger (front left inner)
2 137538 1 TUBE ASSEMBLY, Hydraulic outrigger (front left outer)
3 109127 20 MOUNT, Tube twin insert
4 103995 AR WASHER, Flat (1/4”)
5 103980 AR NUT, Hex head (1/4”- 20, Grade 5)
6 137550 1 TUBE ASSEMBLY, Hydraulic outrigger (rear left outer)
7 137548 1 TUBE ASSEMBLY, Hydraulic outrigger (rear left inner)
8 (Ref.) - MANIFOLD ASSEMBLY, Outrigger
(For components, refer to Figure 6.5-7)
9 137556 AR SCREW, Socket head cap
10 137544 1 TUBE ASSEMBLY, Hydraulic outrigger (rear right inner)
11 137546 1 TUBE ASSEMBLY, Hydraulic outrigger (rear right outer)
12 104694 AR WASHER, Flat (#10)
13 104185 AR WASHER, Lock (#10)
14 103987 AR NUT, Hex head (#10-24)
15 137534 1 TUBE ASSEMBLY, Hydraulic outrigger (front right outer)
16 137532 1 TUBE ASSEMBLY, Hydraulic outrigger (front right inner)
17 107275 2 HOSE ASSEMBLY, Hydraulic line
11
10
98
7
6
5
4
16
15
5
4
3
12
13
14
1
2
3
TO MAIN MANIFOLD
8
17
AC
