Skyjack Compact Rough Terrain Series User Manual

Index
No.
Skyjack
Part No.
Qty. Description
SKYJACK, Page 133
SJRT Compact Series
Engine Powered

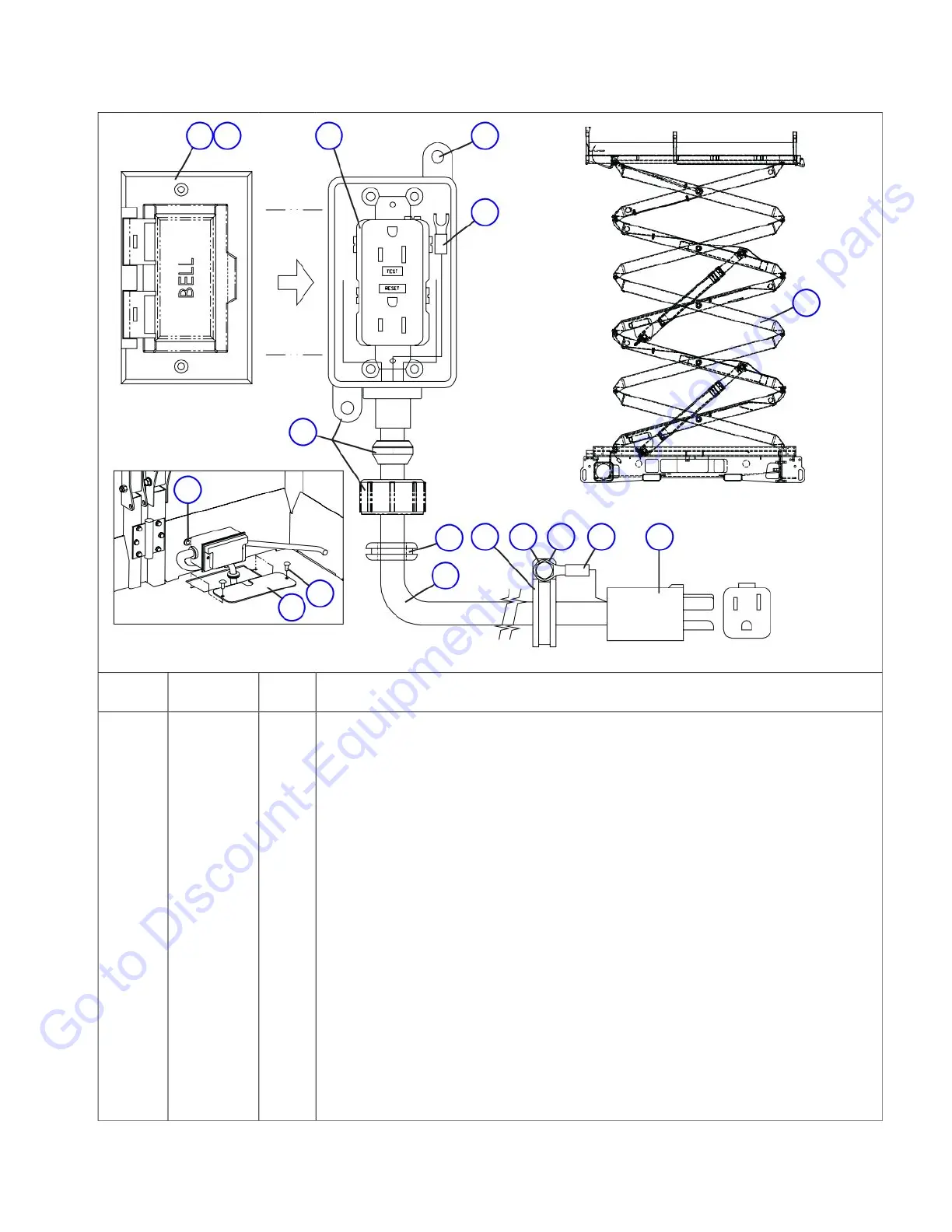

Figure 6.1-8. Outlet Box Assembly
AD
M138121AA M139570AA_1
1 109699 1 PLATE, Weatherproof cover
2 109698 1 RECEPTACLE, GFI (125V)
3 134140 4 RIVET, Open end dome (1/4” DIA)
4 109892 1 TERMINAL, Fork (16-14GA)
5 137083 1 PLATE, Outlet access cover
6 104208 1 PLUG, Male (3-prong)
7 130730 1 ASSEMBLY, Ground wire
8 103856 1 BOLT, Hex head (1/4”-20 - 3/4”)
9 115649 AR NUT, Hex nylon lock (1/4”-20 Grade 5)
10 103024 1 SINGLE CLIP, G8
11 105269 420” CABTIRE, 14/3 (Models 6826)
105269 516” CABTIRE, 14/3 (Models 6832)
117542 492” CABTIRE, 14/3 (Models 6826)(CE)
117542 588” CABTIRE, 14/3 (Models 6832)(CE)
12 103014 1 GROMMET, Rubber (7/8”)
13 136328 1 BOX, Outlet with fitting
14 (Ref.) - 110/220 CLAMP ASSEMBLY OPTION
(For components, refer to Figure 6.5-9)
L (Ref.) - LABEL, Connect Platform AC Supply Here
(For components, refer to Figure 6.6-6)
1 2
13
12
11
10 8 7 6
5
4
L
3
3
14
3
9
