Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 166
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

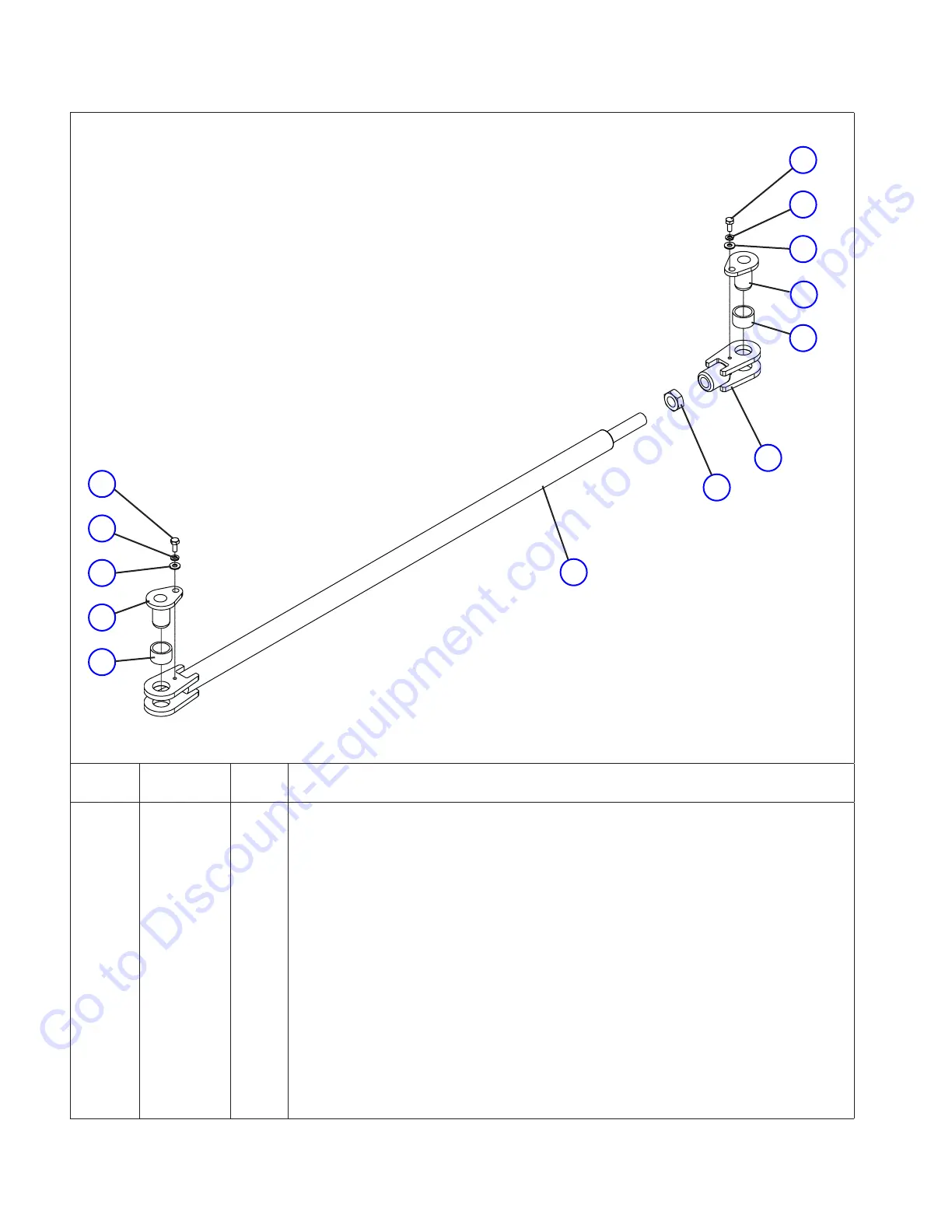

Figure 6.3-4. Tie Rod Assembly with Hardware
M137491AA_1
1
2
8
7
6
5
4
3
8
7
6
5
4
1 142173 1 WELDMENT, Tie rod (Female end)
2 107947 1 NUT, Hex head jam (1-14, Grade 5)
3 135894 1 WELDMENT, Tie rod
4 137811 AR BUSHING, Housing (1” Ø x 0.75”)
5 136519 AR PIN,Tie rod/steer cylinder
6 103995 AR WASHER, Flat (1/4”)
7 104000 AR WASHER, Lock (1/4”)
8 103892 AR BOLT, Hex-head (1/4”-20 x 0.625”, Grade 5)
AB
Go to Discount-Equipment.com to order your parts
