Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 179
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description
- 136272 1 TANK ASSEMBLY, Fuel
1 136258 1 • TANK, Fuel
2 117701 1 • THREAD STRAIGHT MAGNETIC PLUG ASSEMBLY
149606 1 • • PLUG, Thread straight magnetic
120190 1 • • SEAL, Thread straight magnetic plug
3 136427 1 • GAUGE, Level
4 103155 1 • FITTING, Brass tank (#T68-5B)
5 136289 1 • TUBE, Suction
6 136369 1 • CAP, Filler non-vented assembly
7 137540 1 • VENT, Breather
8 102932 1 • PLUG, Pressure
9 125959 AR WASHER, Flat hardened (3/8”)
10 104606 AR NUT, Hex lock nylon insert (3/8”-16, Grade 5)

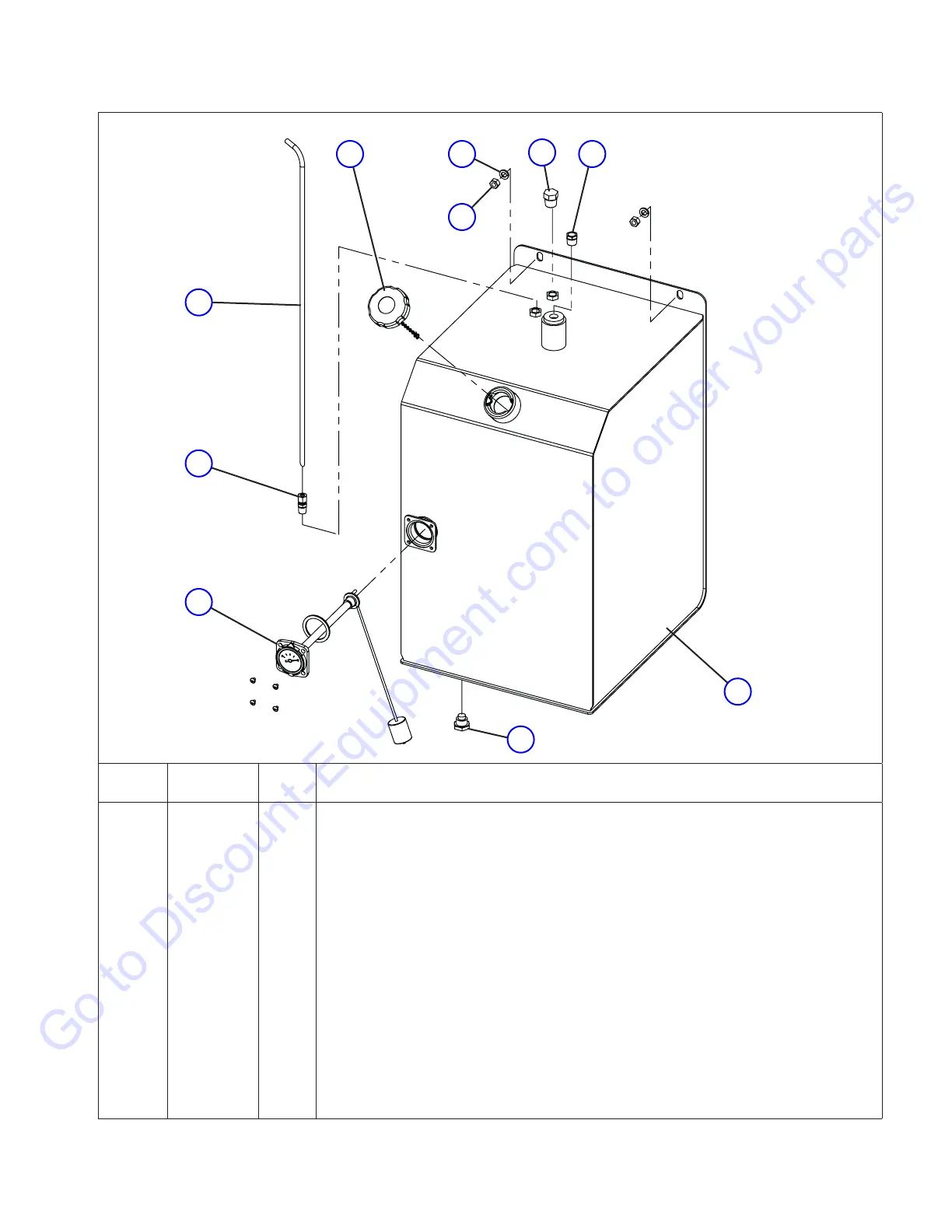

Figure 6.3-12. Gas Tank Assembly
M136272AE
1
2
79
10
6
5
4
3
AD
8
