Skyjack Compact Rough Terrain Series - Figure 6.3-14. Hydraulic Door Assembly

Index
No.
Skyjack
Part No.
Qty. Description
SKYJACK, Page 184
SJRT Compact Series
Engine Powered

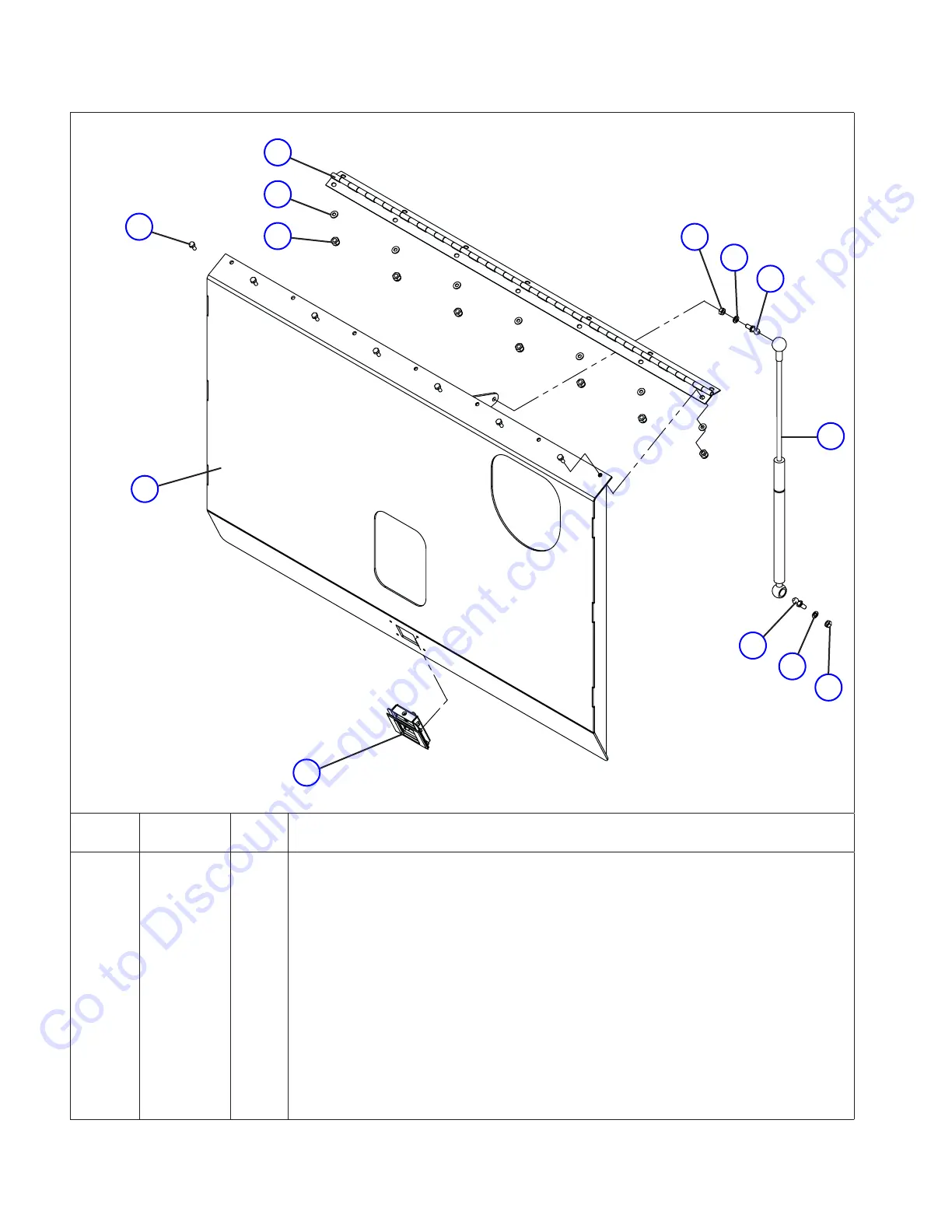

Figure 6.3-14. Hydraulic Door Assembly
M138041AC_1
- 138041 - HYDRAULIC DOOR ASSEMBLY
1 136355 1 • DOOR, Hydraulic cabinet
2 103892 AR • BOLT, Hex head (1/4”-20 x 5/8”, Grade 5)
3 115649 AR • NUT, Hex nylon lock (1/4”-20, Grade 5)
4 103995 AR • WASHER, Flat (1/4”)
5 136996 1 • HINGE, Cabinet door
6 103984 AR • NUT, Hex head (5/16”-18, Grade 5)
7 103404 AR • WASHER, Lock (5/16”)
8 138026 AR • STUD, Ball (13mm)
9 137183 1 • GAS SPRING (10” stroke)
10 137005 1 • LATCH, Sliding with trimplate
1
2
10
9
8
7
6
5
4
3
6
7
8
