Skyjack Compact Rough Terrain Series User Manual

SKYJACK, Page 234
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

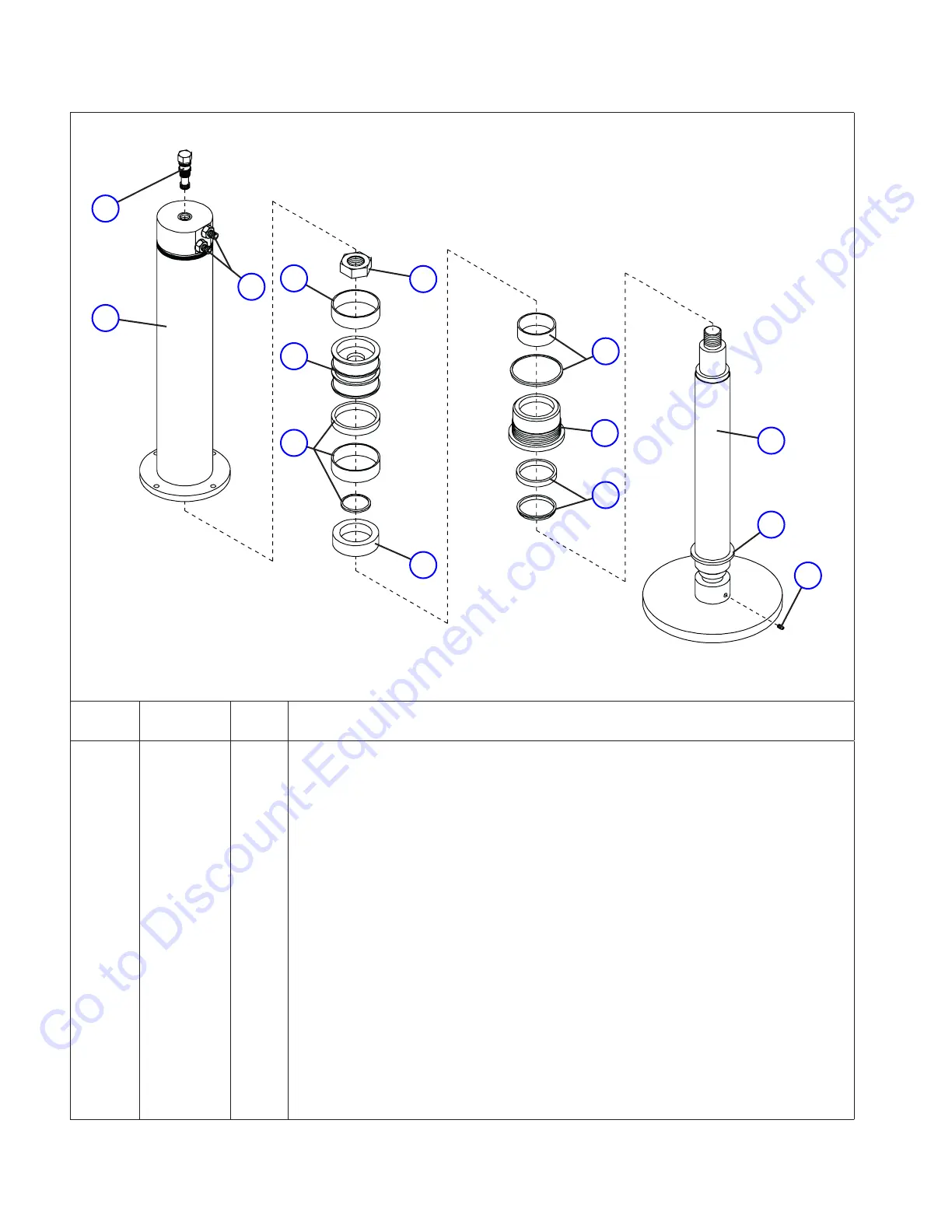

Figure 6.5-5. Outrigger Cylinder Assembly
M10373AB
- 132694 - OUTRIGGER CYLINDER ASSEMBLY
1 152132 1 • WELDMENT, Outrigger Cylinder Barrel
2 104115 1 • VALVE, Pilot Check (Not part of cylinder)
3 103069 2 • FITTING, O-ring
4 120640 1 • PISTON
5 106230 1 • NUT, Lock (1.25”-12, Grade 8)
6 120387 1 • GLAND, Front head
7 126999 1 • OUTRIGGER CYLINDER ROD ASSEMBLY
8 102027 1 • FITTING, Grease (1/8P)
132565 1 • CAP, Rubber grease
9 132690 1 • SPACER, Cylinder tube
10 126279 1 • RING, Retaining (2.5”)
K 104355 1 KIT, Seal repair
2
1
3
4
5
9
6
7
10
8
K
K
K
K
AE
