Index
No.
Skyjack
Part No.
Qty. Description
SKYJACK, Page 154
SJRT Compact Series
Engine Powered

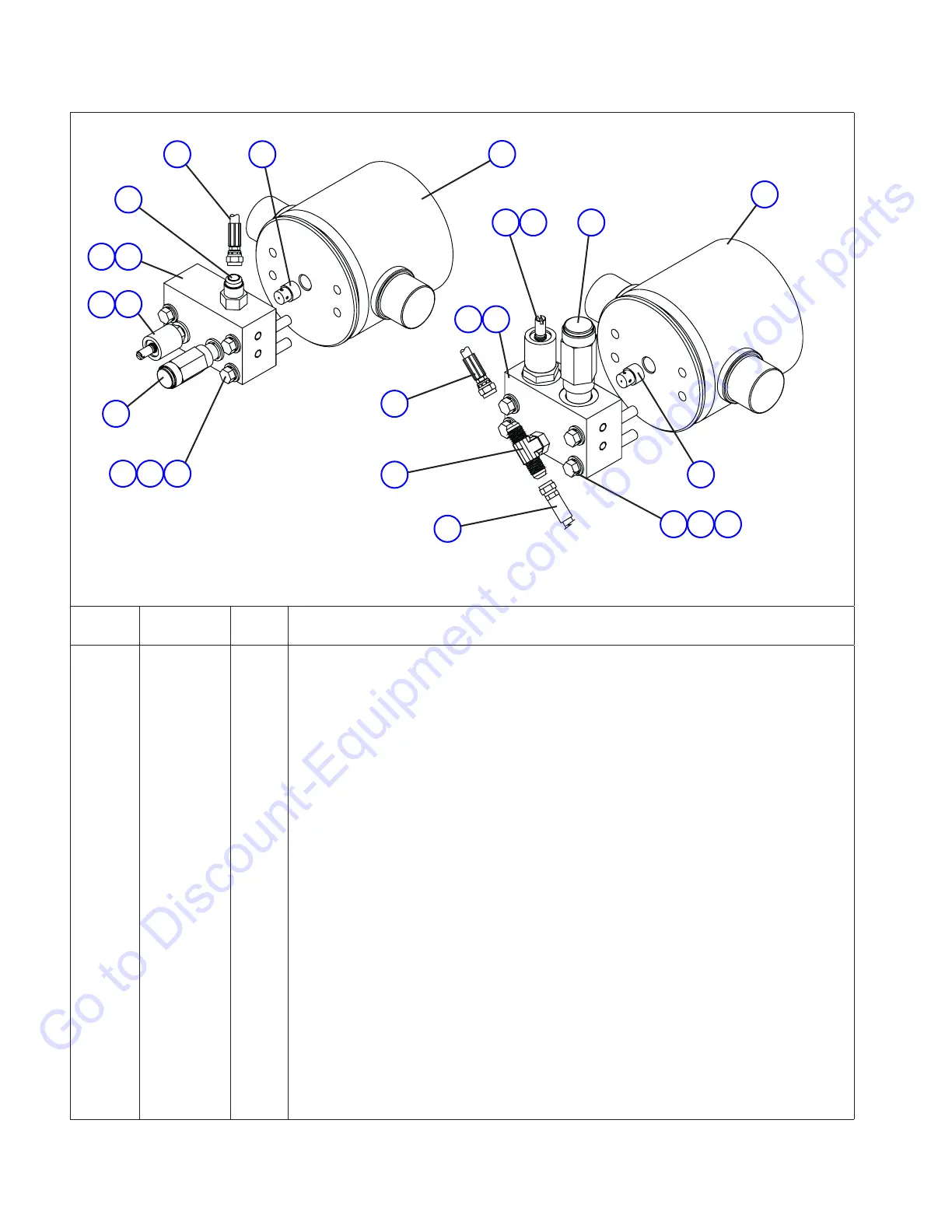

Figure 6.2-7. Lift Cylinder Holding Valve Assemblies without Transducer
1 108778 1 BLOCK, Upper holding valve
212915 1 • BLOCK, Manifold
111320 1 • • BLOCK, Cylinder block
108052 2 • • PLUG, Expander
108052 1 • PLUG, Expander
2 103403 2 SEAL, O-Ring
3 106557 2 VALVE, Relief
4 107269 2 VALVE, N.C. Holding
5 104410 2 COIL, 12 Volt
6 105281 2 ORIFICE, One way
7 (Ref.) - ASSEMBLY, Lift cylinder (Upper Cylinder)
(For components, refer to Figure 6.2-6)
8 (Ref.) - ASSEMBLY, Lift cylinder (Lower Cylinder)
(For components, refer to Figure 6.2-6)
9 106688 1 BLOCK, Lower holding valve
111316 1 • BLOCK, Manifold
108052 2 • PLUG, Expander
10 108429 4 BOLT, Hex head 5/16” - 18 x 2.50”
11 103996 8 WASHER, Flat 5/16” S.A.E.
12 104637 8 WASHER, Lock (5/16” high collar 0.09)
13 103931 4 BOLT, Socket (5/16” - 18 x 2” Grade 5)
14 103069 1 FITTING, Straight (upper lift Cylinder)
15 114579 1 FITTING, Tee (lower lift cylinder)
16 102635 1 HOSE ASSEMBLY, Upper Lift cylinder to lower lift cylinder
17 134684 1 HOSE ASSEMBLY, Lower lift cylinder to main manifold (3/8” DIA x 84”)
M125916AA M125917
1 2
121110
9
8
7
6
5
4
3
16
15
14
17
16
131211
6
54 3
2
AD
