Page 36 December 2007
ZB2044
Function Tests Section 2 - Operation
• Test Horn
1. Push “ ” horn push-button.
Result: Horn should sound.
WARNING
If the warning indicator lights illuminate
when engine is running, immediately shut
down the telehandler and have it serviced.
• Test Reverse Alarm
1. Ensure parking brake switch is on.
2. Depress service brake pedal and shift the
transmission lever backward.
Result: The reverse alarm should sound and
reverse light (if equipped) should turn on.
• Test Positive Air Shutoff (If Equipped)
CAUTION
This function test should not be performed
while the engine is running.
1. Open the engine cover on the hydraulic tank
side of the machine.
2. Lift switch guard and push rocker switch to
“on” position. Walk back to the hydraulic
tank side of the machine.
Result: With a ashlight, inspect the shutoff
valve. After 20 seconds the valve should
disengage.
3. Close engine cover.
4. Ensure switch is returned to “off” position
and switch guard is down.
• Test Lights (If Equipped)
1. Use a spotter to check if all the lights are
working well. The spotter should maintain
a safe distance from telehandler.
2. Turn parking brake switch to off position.
Result: Rear brake lights should turn off.
3. Depress service brake pedal.
Result: Rear brake lights should turn on.
4. Select head/tail light (if equipped) switch to
on position.
Result: Head/tail lights should turn on.
5. Turn parking brake switch to on position.
6. Select left turn signal (if equipped) rocker
switch to on position.
Result: The left signal light should ash.
7. Select right turn signal (if equipped) rocker
switch to on position.
Result: The right signal light should ash.
This unit is equipped with rear axle tilt lock,
which is energized when red light is lit.
Never attempt to level frame when boom is
elevated or when red light is lit.
WAR NIN G
A 152222AA
152218AA
A
All turbo-engines
air cleaner and exhaust
must be sealed during
transport.
NOTICE

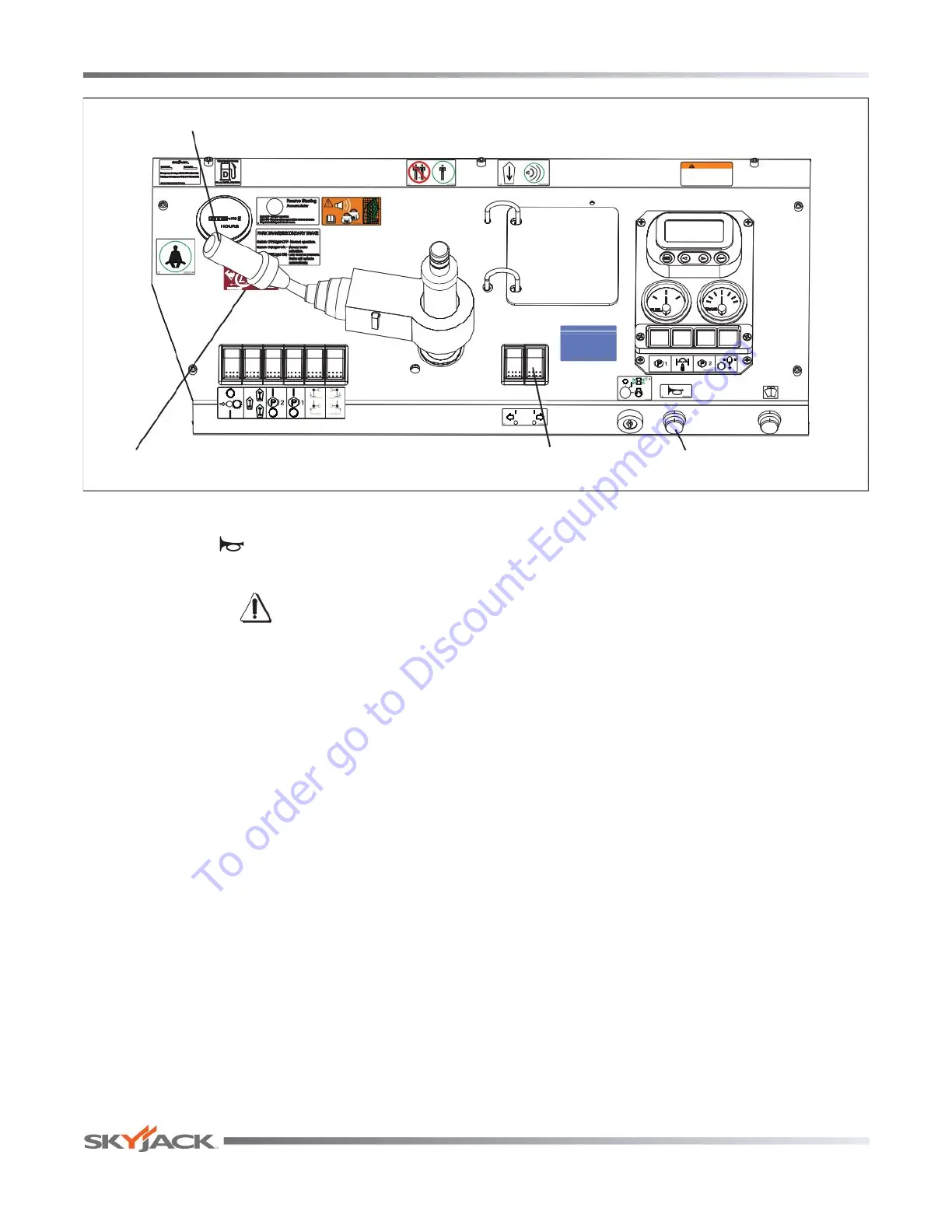

Horn Push
Button
Right Turn
Signal Switch
Transmission
Lever
Positive Air Shutoff
