Section 2 - Operation Function Tests
2.9 Function Tests
Function tests are designed to discover any malfunctions
before telehandler is put into service. The operator must
understand and follow step-by-step instructions to test
all telehandler functions.
IMPORTANT
Never use a malfunctioning telehandler. If
malfunctions are discovered, telehandler
must be tagged and placed out of service.
Repairs to telehandler may only be made
by a qualied service technician.
After repairs are completed, operator must perform a
pre-operation inspection and a series of function tests
again before putting telehandler into service.
Prior to performing function tests, be sure to read and
understand Section 2.10 - Start Operation.
WARNING
Ensure that there are no personnel or
obstructions in test area and that there
is sufcient room to test all telehandler
functions.
2.9-1 Operator’s Cab Controls
WARNING
Ensure that you maintain three points of
contact to mount/dismount the cab.
• Test Starter Operation
1. Enter cab and close door (if equipped).
WARNING
The seat belt must be worn at all times.
2. Sit in the driver’s seat and fasten seat belt.
3. Using a spotter, adjust the mirrors.
4. Ensure parking brake is engaged.
5. Adjust the boom controller console.
6. Insert key into ignition switch and select
“ ” on position. The red and amber lights
at the top of electronic dash display will
illuminate. Once red and amber lights are
no longer displayed, and the electronic
gauges are visible on the display panel;
turn the key to start position.
7. Allow engine to idle for 30 seconds until
low brake pressure light is off.
CALIFORN
IA
PR
OPOSIT
I
O
N 6
5
W
AR
NIN
G
E
n
g
i
ne
exha
ust
a
nd
som
e
of
i
ts
c
onsti
t
uen
ts
a
re
kno
w
n
to
th
e
S
ta
te
of
Cali
f
orn
i
a
to
c
a
u
se
c
a
nce
r
,
b
irth
d
efec
ts
, and
ot
h
e
r
rep
rod
uc
tive
harm.
D
i
es
el
fuel
,
un
l
ea
ded
gaso
l
i
ne
a
n
d
liq
ui
fie
d
in
i
ts
orig
i
n
al
st
a
te,
c
onta
ins
b
en
z
ene
a
n
d
othe
r
c
h
emic
a
l
s
known
t
o
S
ta
te
of
Ca
l
i
forn
ia
to
c
ause
c
a
n
c
er
,
b
i
rt
h
d
ef
ec
t
s
,
a
nd
othe
r
rep
rod
u
c
ti
ve
h
a
rm
.
Ba
tte
ry
p
os
t
s
,
terminal
s
,
a
n
d
rel
ated
a
c
c
esso
ri
es
c
onta
i
n
le
a
d
a
n
d
le
a
d
c
om
p
oun
d
s,
chem
i
c
a
l
s
know
n
to
S
ta
t
e
of
Ca
l
i
forn
i
a
t
o
c
a
u
se
c
a
nc
e
r
,
b
irth
de
f
ec
t
s
,
a
n
d
o
ther
reprod
uc
ti
v
e
ha
rm
.
W
as
h
h
a
nds aft
er h
and
l
in
g
.

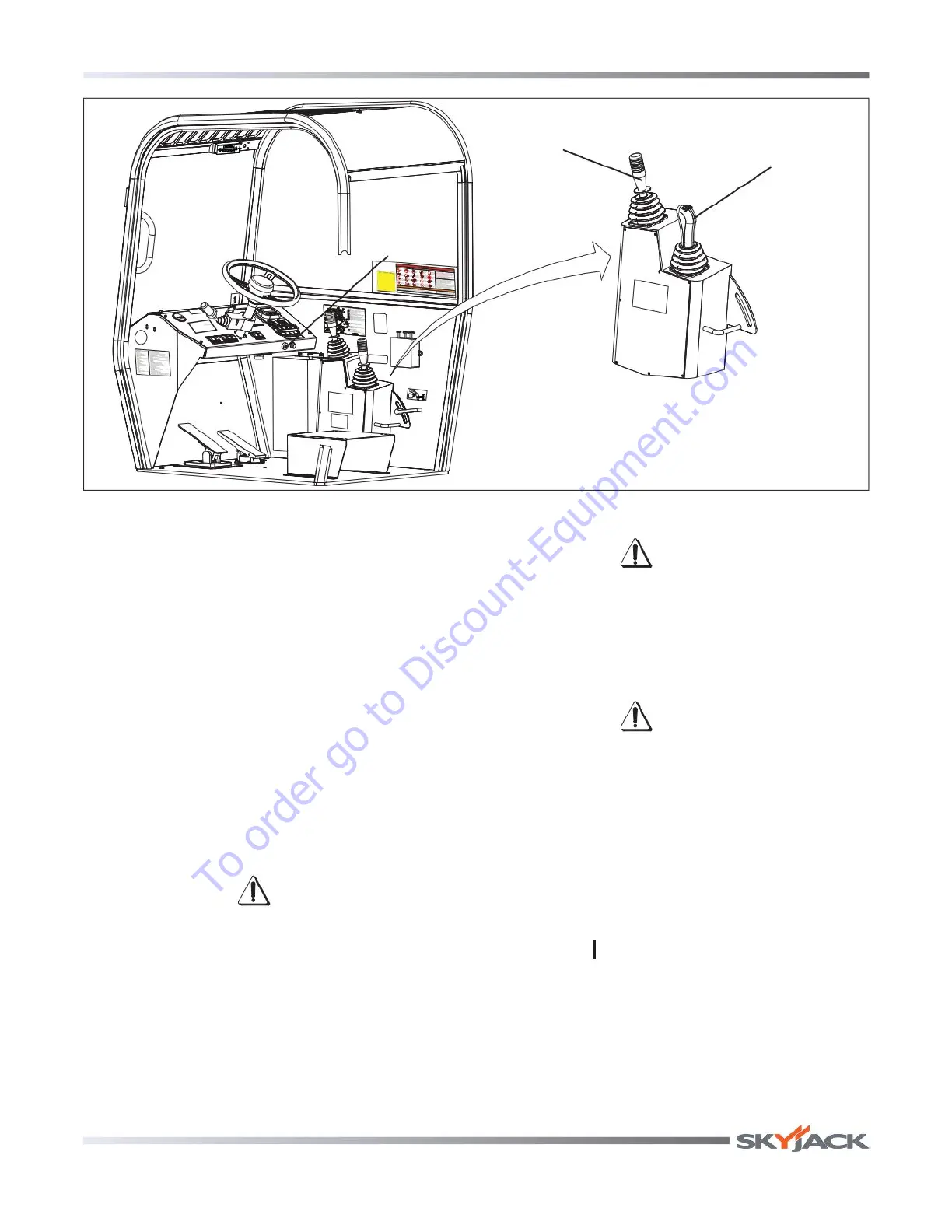

Frame Level/Optional
