PJC 221 & 222
All System - RCRS 1 & RCRS 2 Setup
All System - MSI8730 Setup
All System - ESI-1 & GW-1 Setup
MC_0097
MC_0097
MC_0097
MC_0097
ESI-1 (External Single Interface)
GW-1 (Gateway)
This devices will only show fi rmware version and serial number at the button.
SRC-3
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for the selected device. Use BOW or STERN in a conventional thruster system. In a
system with two bow or stern thrusters (i.e a catamaran), use BOW or STERN for port thruster,
BOW-STB or STERN-STB for starboard thruster.
RCRS 1 & RCRS 2
BOW/STERN Thrust
Values: 0-100% (Default 75%)
Set the amount of thrust given by the remote control.
In a bow/stern confi guration, try to balance the thrust so that the boat moves straight sideways when
both thrusters are operated simultaneously with input from the remote only.
MSI8730
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for selected device. Use BOW or STERN in a conventional thruster system. In a system
with two bow or stern thrusters (i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or
STERN-STB for starboard thruster.
Thrust
Values: 0-100% (Default 70%)
Set the amount of thrust given by the remote control. In a bow/stern confi guration, try to balance the
thrust so that the boat moves straight sideways when both thrusters are operated simultaneously with
input from the remote only.
Retract System - SR6 1242 Setup
MC_0097
SR6 1242 - Control unit for retract thrusters
The Sleipner Retract Controller SR6 1242 is used to control and monitor deployment of retractable
thrusters. Several parameters can be confi gured for SR6 1242. Firmware version and S-Link serial
number are displayed at the bottom of the confi guration menu.
Location
Values: BOW (default), STERN, BOW-STB, STERN-STB
Specify the physical location of the retractable thruster which SR6 1242 is connected to. Use Bow or
Stern in conventional thruster system. In a system with two bow or two stern thrusters, for instance
a catamaran, use Bow or Stern for port thruster. For starboard thrusters use Bow Starboard or Stern
Starboard.
Direction
Values: Normal (default)/Inverted
Switches between Normal and Inverted running direction for the thruster. If the direction of thrust
is opposite of the direction of movement of the joystick this parameter can be used to align thrust
direction with the operation of the joystick.
Function
Values: SR ON/OFF (default), SRP
Confi gure thruster type controlled by the retract controller.
- SR ON/OFF: DC thruster without speed controller. The joystick needs to be operated more than
50% for the thruster to run.
- SRP: DC thruster with PPC
Retract System - SRC-3 Setup
DC System - eVision Setup

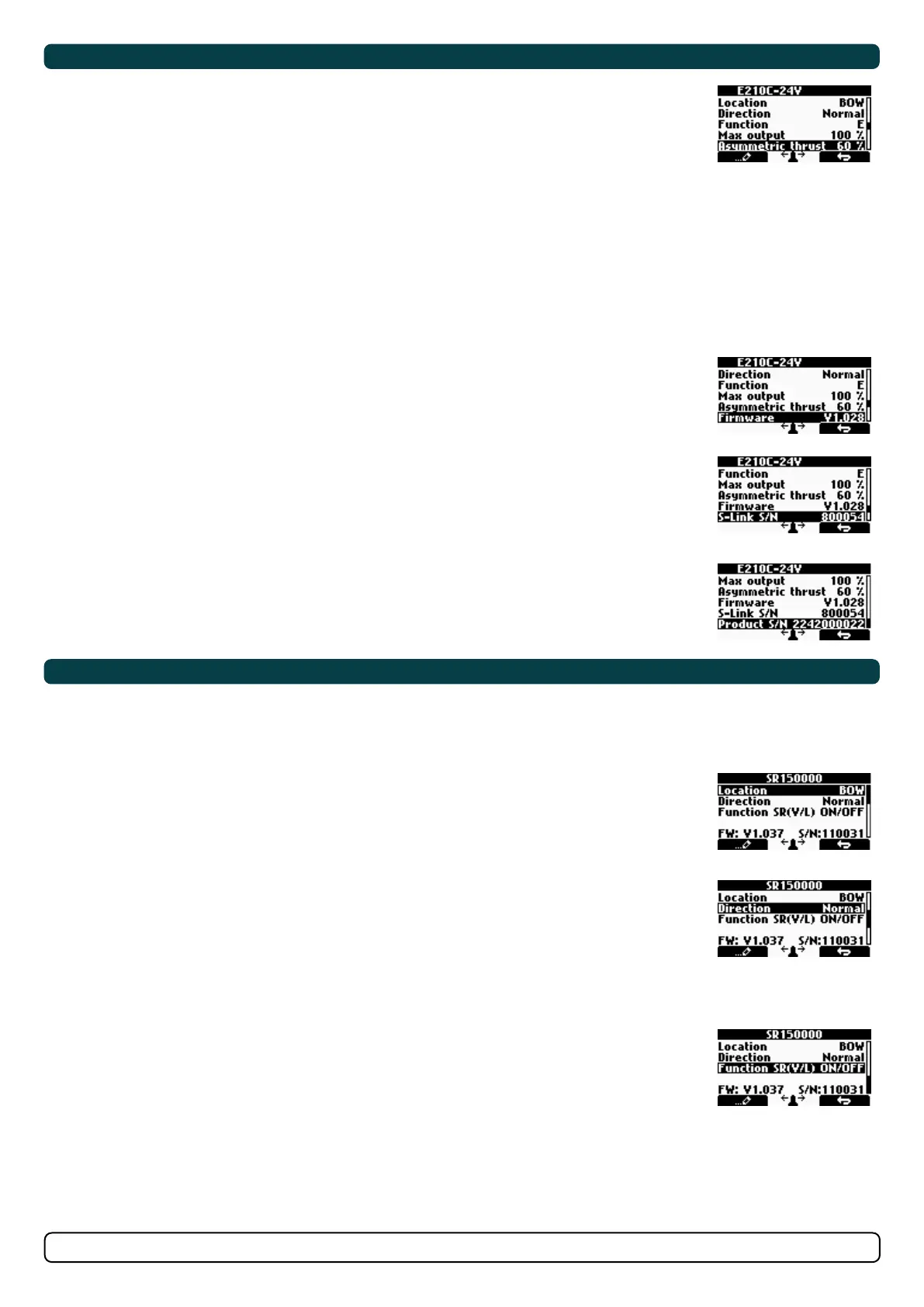

Retract System - SR150000 Setup
MC_0097
MC_0097
Asymmetric thrust
Values: 0% to 100% (Default 100%)
This setting can be used to improve performance of dual bow or stern thruster installations such as
those found on catamarans or vessels with stern drive units. Pushing water at high flow into an adjacent
tunnel may result in cavitation and reduction of thrust for the nearby tunnel.
Pushing water towards the drive unit, above a certain flow rate, might not further increase the thrust.
Thus for vessels with stern drive and dual thruster installation the current consumption could potentially
be improved by reducing flow towards the drive unit while not reducing maximum achieved thrust.
The Asymmetric Thrust value limits maximum thrust in one direction. The limiting direction is
determined by the Location setting of the thruster.
Thrusters with Location set to BOW or STERN will limit thrust towards port side and hence reduce the
water flow towards starboard.
Thrusters with Location set to BOW-STB/STERN-STB instance will limit thrust towards starboard side
and hence reduce the water flow towards port.
Firmware
List the current fi rmware of the eVision thruster.
S-Link S/N
List the S-Link serial number of the eVision thruster
Product S/N
List the product serial number of the eVision thruster
SR150000 - Control unit for retract thrusters
The Sleipner Retract Controller SR150000 is used to control and monitor deployment of
retractable thrusters. Several parameters can be confi gured for SR150000. Firmware version and
S-Link serial number are displayed at the bottom of the confi guration menu.
Location
Values: BOW (default), STERN, BOW-STB, STERN-STB
Specify the physical location of the retractable thruster which SR150000 is connected to. Use Bow
or Stern in conventional thruster system. In a system with two bow or two stern thrusters, for
instance a catamaran, use Bow or Stern for port thruster. For starboard thrusters use Bow
Starboard or Stern Starboard.
Direction
Values: Normal (default)/Inverted
Switches between Normal and Inverted running direction for the thruster. If the direction of thrust
is opposite of the direction of movement of the joystick this parameter can be used to align thrust
direction with the operation of the joystick.
For SRVP/SRLP retract installations Direction parameter set in PPC will not affect the running
direction. In such installations it is only the Direction confi guration in SR150000 that will control
the running direction.
Function
Values: SR(V/L) ON/OFF (default), SRVP/SRLP, SRHP/SRAC, ERV/ERL
Confi gure thruster type controlled by the retract controller.
- SR(V/L) ON/OFF: DC thruster without speed controller. The joystick needs to be operated more than
50% for the thruster to run.
- SRVP/SRLP: DC thruster with PPC.
- SRHP/SRAC: Hydraulic or AC thruster.
- ERV/ERL: eVision thruster.
