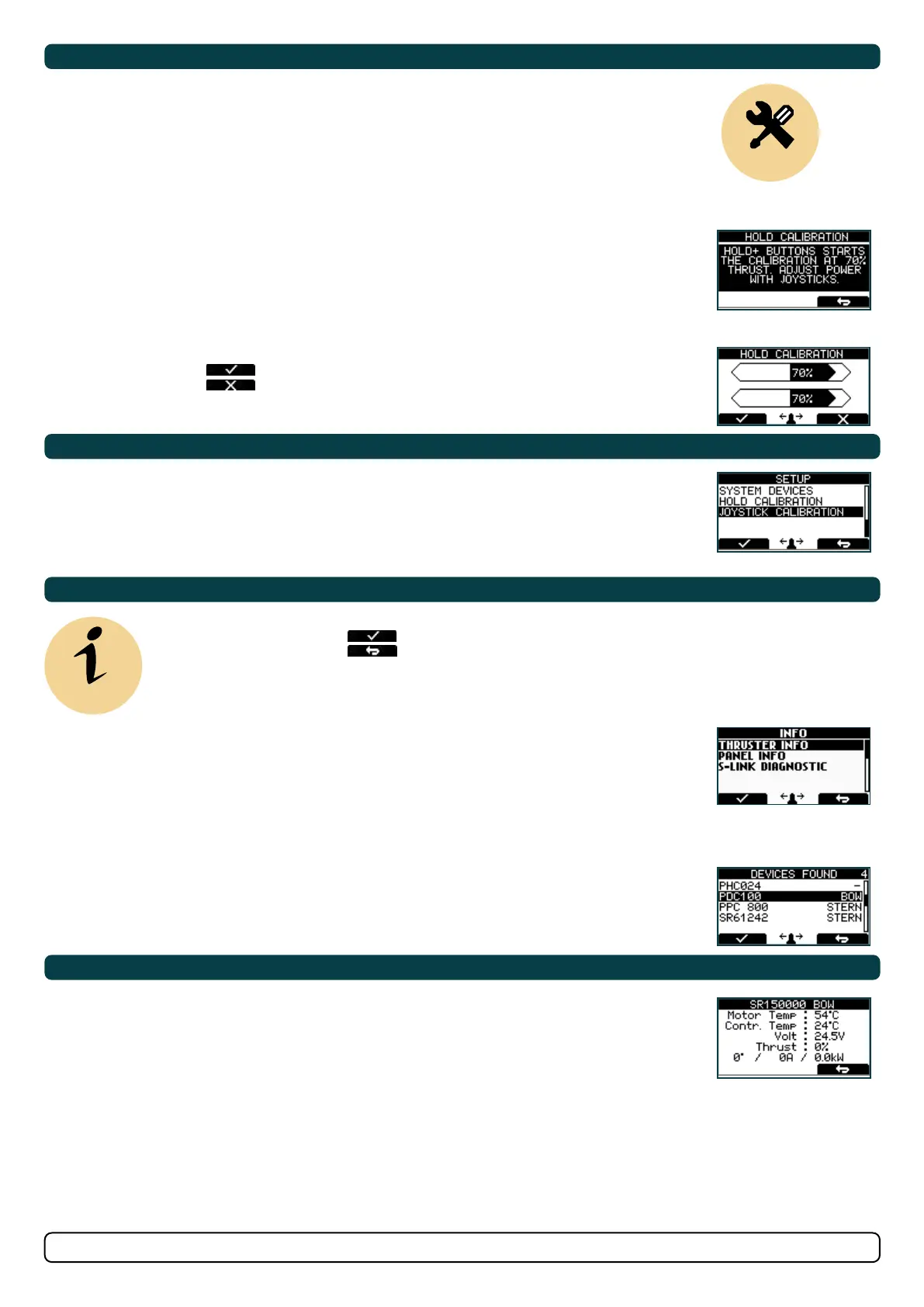

PJC 221 & 222
Hold Calibration
Menu System Information
Information - PPC, SR150000, SR61242
Joystick Calibration
MC_0098
MC_0098
MC_0098
MC_0098
Setup
Default in systems
without stabilizers
Calibrates the HOLD-function to get balanced thrust from the bow and stern thruster. If only one
thruster or PJC221/PJC211 you will not get any balanced thrust, but you can adjust the maximum
thrust from HOLD buttons. Hold-button represents 1/6 of the calibrated value.
(NB: HOLD CALIBRATION is not available until SETUP is completed.)
To start calibration, press the “+”-Hold button in the desired direction. For a fi rst time calibration, the thrusters
will start at 70%. A system previously calibrated will start with the last amount of thrust set.
Adjust power with the joystick.
Press the button below to save the calibration values.
Press the button below to cancel calibration without saving.
(NB: Setup calibration in one direction sets values for both directions.)
THRUSTER INFO
Display info about the thrusters in the system.
The number of thrusters/controllers found is
shown in the upper right corner of the display.
The list of devices found can fi ll more than one screen. A scroll bar indicates the position of the selected item.
The joystick(s) operates the thrusters as normal while info is displayed. This will be useful for troubleshooting,
service and general system diagnostics. List will only show devices present on the S-link.
PPC DC Speed Controller
SR150000 Retract controller
SR61242 Retract controller
Motor Temp: Temperature measured at the electric motor brushes
(Not implemented in SR61242)
Contr. Temp: Temperature measured inside the controller
(Not implemented in SR61242)
Voltage: Motor Voltage measured at the controller
Thrust: Thrust level from joystick/hold buttons
°/A/kW: Retract angle (SR150000) / Motor Current (PPC) / Power reading (PPC). SR150000 retract angel is 0°
when fully deployed, and about 90° when retracted. Put SR150000 in service mode and operate the
controller manually in an out to read the two end position angels for service and installation.
(only for PJC2xx panels with HW V2)
This function is for calibrating the joysticks, and requires a pin code to enter. This option is for service personnel
only.
INFO
• Move between menu items with the (stern) joystick.
• Press the button below to select the highlighted menu entry.
• Press the button below to return to the previous menu.
