Sleipner PJC221 - Product Measurements

32
3059
23 2024
-
PJC 221 & 222
MG_0399
H
(c)
(d)
(e)
(a)
W
(b)
Models:
PJC211
PJC212
PJC221
PJC222
*Stern Joystick
Control Panel
(PJC212)
(PJC222)
*Cut out
(f)
*Cut out
(g)
MC_0359

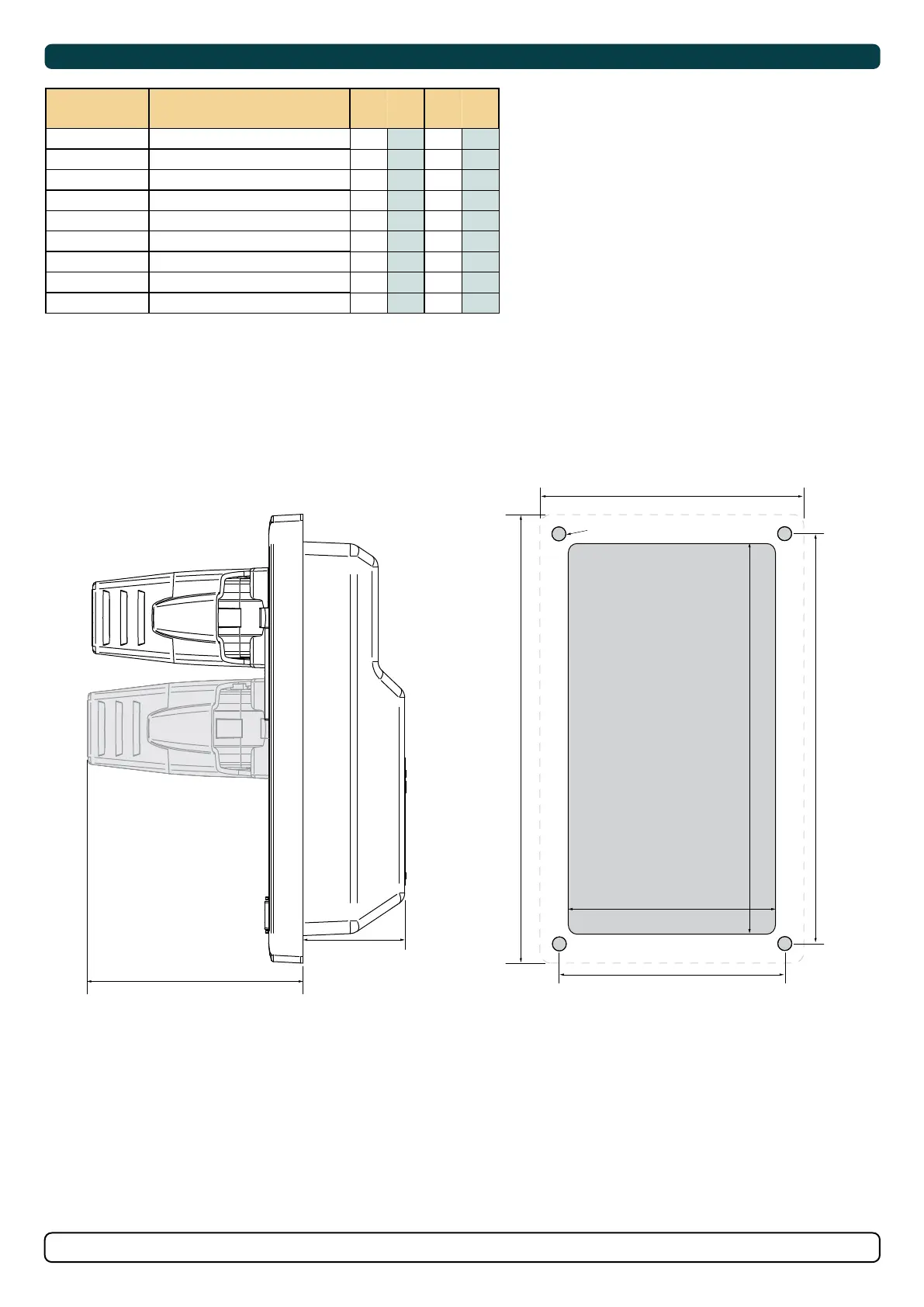

Product Measurements
Measurement
code
Measurement description
mm inch mm inch
H Panel Height 141 5.55 141 5.55
W Panel width 83 3.3 83 3.3
(a) Raised height above the dashboard 65.66 2.6 65.66 2.6
(b) Depth behind the dashboard (not inc. cables) 31.8 1.25 31.8 1.25
(c) Panel screw hole diameter 4.5 0.18 4.5 0.18
(d) Distance between panel screw holes 132.7 5.22 132.7 5.22
(e) Distance between panel screw holes 75.7 3 75.7 3
(f) Panel cut out height 125 4.9 125 4.9
(g) Panel cut out width 67 2.64 67 2.64
*PJC211 *PJC212
