Sleipner PJC221 - Product Specifications

33
3059
23 2024
-
PJC 221 & 222
MG_0399
H
(c)
(d)
(e)
(a)
W
(b)
Models:
PJC211
PJC212
PJC221
PJC222
*Stern Joystick
Control Panel
(PJC212)
(PJC222)
*Cut out
(f)
*Cut out
(g)
MC_0359
Product Measurements
Measurement
code
Measurement description
mm inch mm inch
H Panel Height 141 5.55 141 5.55
W Panel width 83 3.3 83 3.3
(a) Raised height above the dashboard 65.66 2.6 65.66 2.6
(b) Depth behind the dashboard (not inc. cables) 31.8 1.25 31.8 1.25
(c) Panel screw hole diameter 4.5 0.18 4.5 0.18
(d) Distance between panel screw holes 132.7 5.22 132.7 5.22
(e) Distance between panel screw holes 75.7 3 75.7 3
(f) Panel cut out height 125 4.9 125 4.9
(g) Panel cut out width 67 2.64 67 2.64
*PJC211 *PJC212
Description Value
Operating temperature -10 to + 60 degrees C.
Storage temperature -20 to + 70 degrees C.
IP rating front IPx6
IP rating back IPx4
Humidity max 95% RH
EMC tested Acc. to EN 60533
Weight 215 gr.
Description Minimum Maximum Units Comment
Input voltage 9 31 Volt DC Powered from S-Link
Current Voltage 20 120 mA
External Alarm Buzzer Voltage 31 Volt DC
External Alarm Buzzer Current 500 mA Internally fused
Product Specifi cations
MC_0104
Supply
+12V / 24V DC
(S-link)
+
-

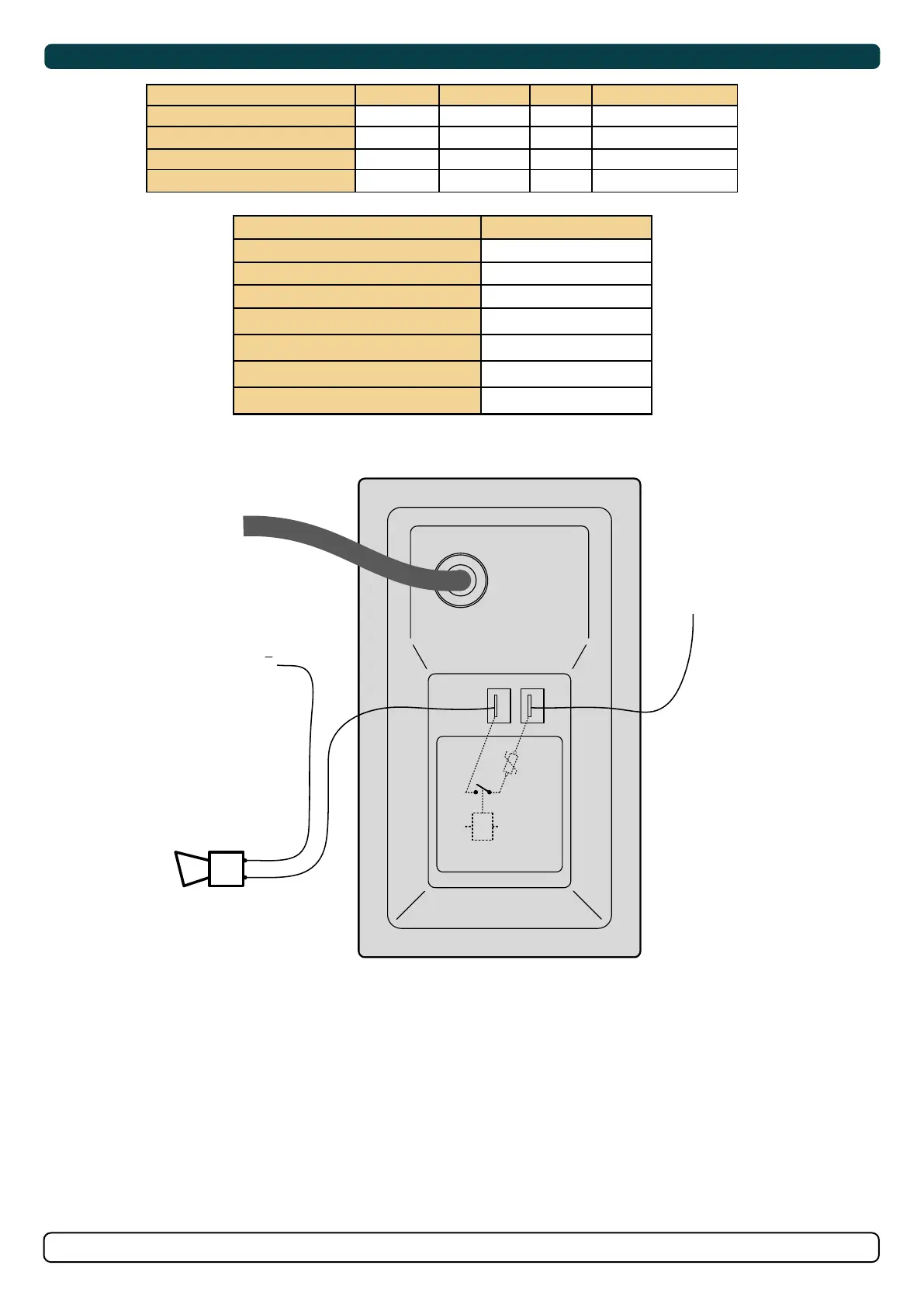

External alarm buzzer
12V / 24V DC - max 0,5A
Internal
fuse/relay
External alarm/buzzer connection
Re
a
r
s
i
d
e
o
f
p
a
n
e
l
Connections for optional external buzzer/audible alarm.
