PJC 221 & 222

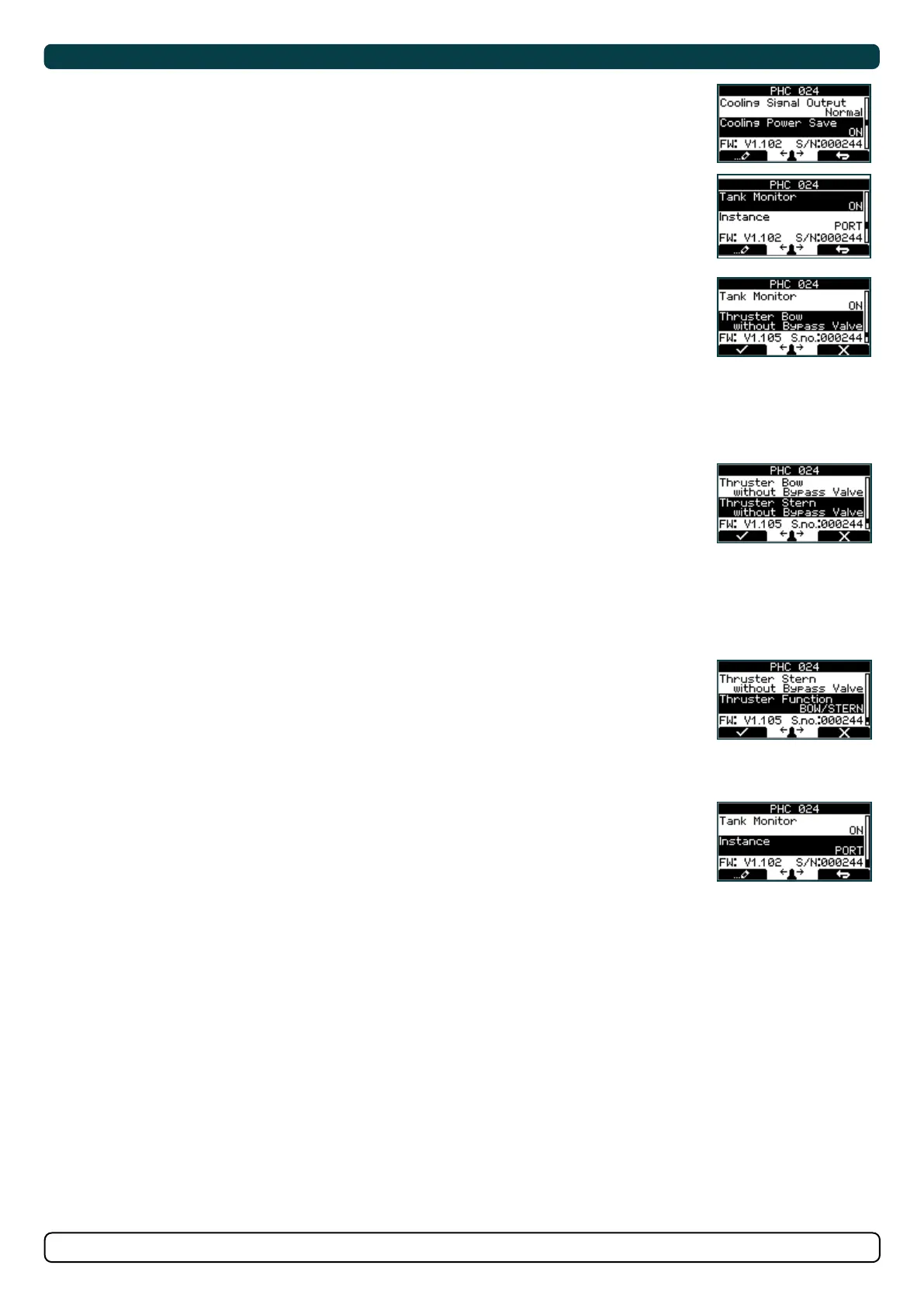

Hydraulic System - PHC024 Setup
MC_0095
Cooling Power Save (only available for PHC024 with FW V1.101 or higher)
Values: ON/OFF (default)
ON sets the Cooling Pump into power save mode, which means the Cooling Pump output is dropping to 0
volt when the oil pressure is below 10 bar for more than 10 seconds (Cooling Pump is turned OFF).
Tank Monitor (only available for PHC024 with FW V1.101 or higher)
Values: ON (default)/OFF
ON is when you have a tank monitor, oil level and Oil temp sensor. OFF is when you do not have a
tank monitor and the display will show 0°C and no alarm for high temperature or low level will not be
transmitted on the S-link.
Thruster Bow (only available for PHC024 with FW V1.105 or higher)
Values: without Bypass Valve (default)/with Bypass Valve.
All 513mm (20inch) tunnel and 610mm (24inch) tunnel thrusters, are supplied with hydraulic bypass/
crossover valve and must be set to “with Bypass Valve”.
This bypass valve is normally open to protect the thruster during deceleration and will close while thruster
is running. By selecting “with Bypass Valve” you activate this signal and addition change ramp parameters
to match this setup. All other thrusters must be set to “without Bypass Valve”.
(NB: With hydraulic retractable thrusters (SRHP) this must be set to ‘without Bypass Valve’)
Thruster Stern (only available for PHC024 with FW V1.105 or higher)
Values: without Bypass Valve (default)/with Bypass Valve
All 513mm (20inch) tunnel and 610mm (24inch) tunnel thrusters, are supplied with hydraulic bypass/
crossover valve and must be set to “with Bypass Valve”.
This bypass valve is normally open to protect the thruster during deceleration and will close while thruster
is running. By selecting “with Bypass Valve” you activate this signal and addition change ramp parameters
to match this setup. All other thrusters must be set to “without Bypass Valve”.
(NB: With hydraulic retractable thrusters (SRHP) this must be set to ‘without Bypass Valve’)
Thruster Function (only available for PHC024 with FW V1.105 or higher)
Values: BOW/STERN (default)/ BOW/BOW / STERN/STERN
Thruster function is how the two thruster valves are set to work.
BOW/STERN: One thruster valve output runs on bow signal from control device, and the other
thruster valve output runs on stern signal from control device.
BOW/BOW: Both thruster valve outputs runs on bow signal from control device. STERN/STERN: Both
thruster valve outputs runs on stern signal from control device.
Instance (only available for PHC024 with FW V1.101 or higher)
Values:--(default)/PORT/STARBOARD
Setting the PHC024 tank controller instance. For a mono hull boat the instance should be ”--“. If you have a
catamaran with two PHC024 controllers then the one in the port hull should be set as “PORT” and the one
in the starboard hull as “STARBOARD”. This way the two controllers are shown in the panel display as two
different oil tanks to monitor.
3.5
3.6
3.7
3.8
3.9
3.10
