Local Adjustment Programming
3.7
system is interactive, in other words, not only it reads the TP301 parameters, but also it "writes"
information into the TP301.
To configure the TP301 with the FDT/DTM tool, please refer to the TP301DTM manual - Device
Type Manager downloadable from www.smar.com. The Figure 3.5 is an example of one of the
available screens for the TP301.

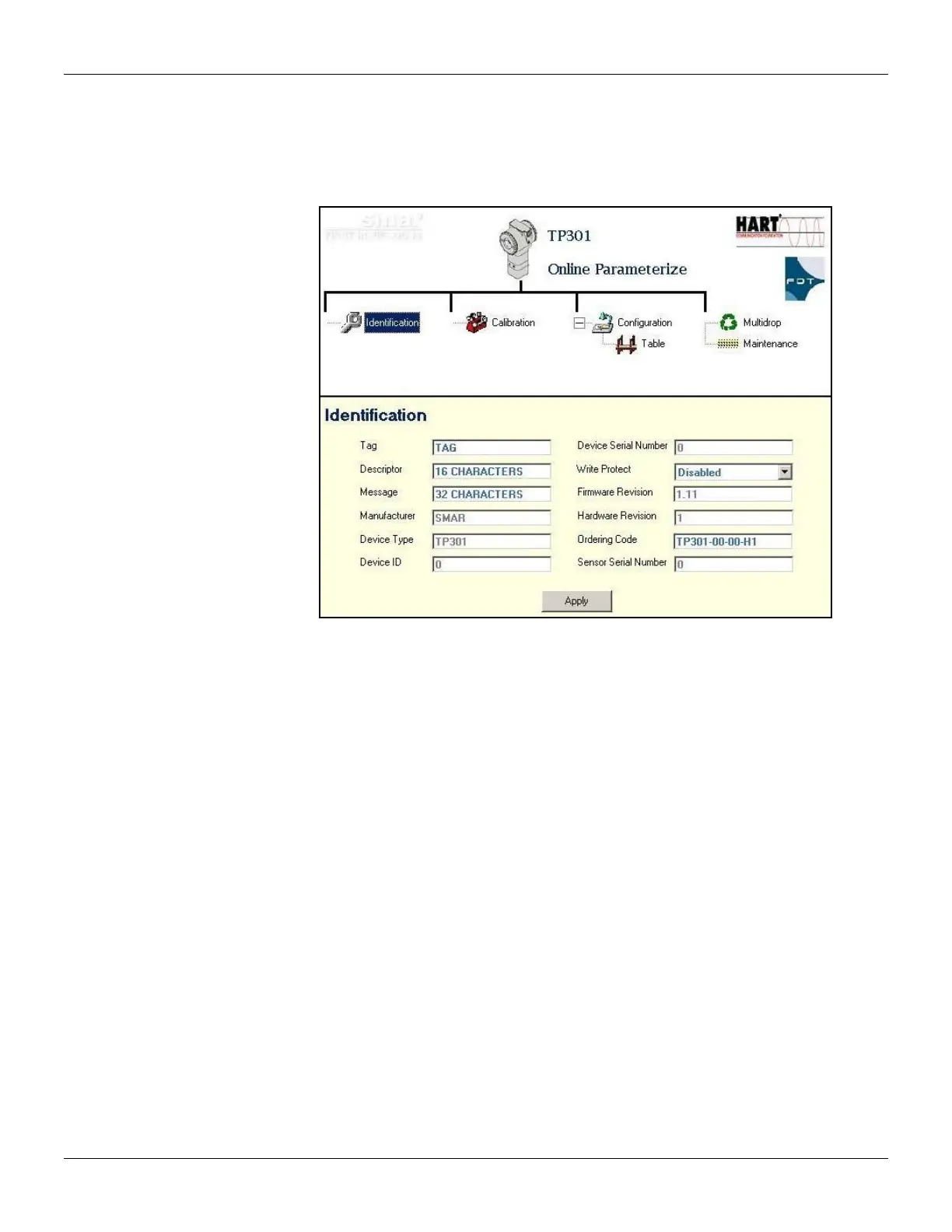

Figure 3.5 – TP301DTM Screen “Online Parameterize”
- CONF401
The CONF401 is a configurator HART for PC allowing easy configuration and field devices
monitoring. It also of analyzes device data and modify its performance. The graphic interface is
intuitive and easy to learn and to use, doing with that is not necessary the use.
CONF401 is compatible with Windows 95/98/ME/NT/2000 and XP.
CONF401 is compatible with the interfaces: HI311, HI321, HFI400, DDCON100 and any
interface HART
©
based on the protocol RS232 <->HART.
Minimum configuration:
1. Pentium 350 MHz processor;
2. Windows 95/98/ME/NT/2000/XP operating system;
3. 128 MB RAM;
4. At least a door serial (HI311) or it carries USB (HI321, HFI400 or DDCON100) available.
To configure see the Manual of the User of CONF401 - CONFIGURADOR HART
®
, in the site
http://www.smar.com or http://www.smarresearch.com.
