The following Figures 1.1 and 1.3 show both linear and rotary typical mounting:
Rotary Movement
Install the magnet on the valve stem using the magnet mounting bracket.
ROTATY
MAGNET
BRACKET
VALVE
STEM
ROTARY
MAGNET
POSITIONER
TRANSMITTER
POSITIONER
TRANSMITTER
BRACKET

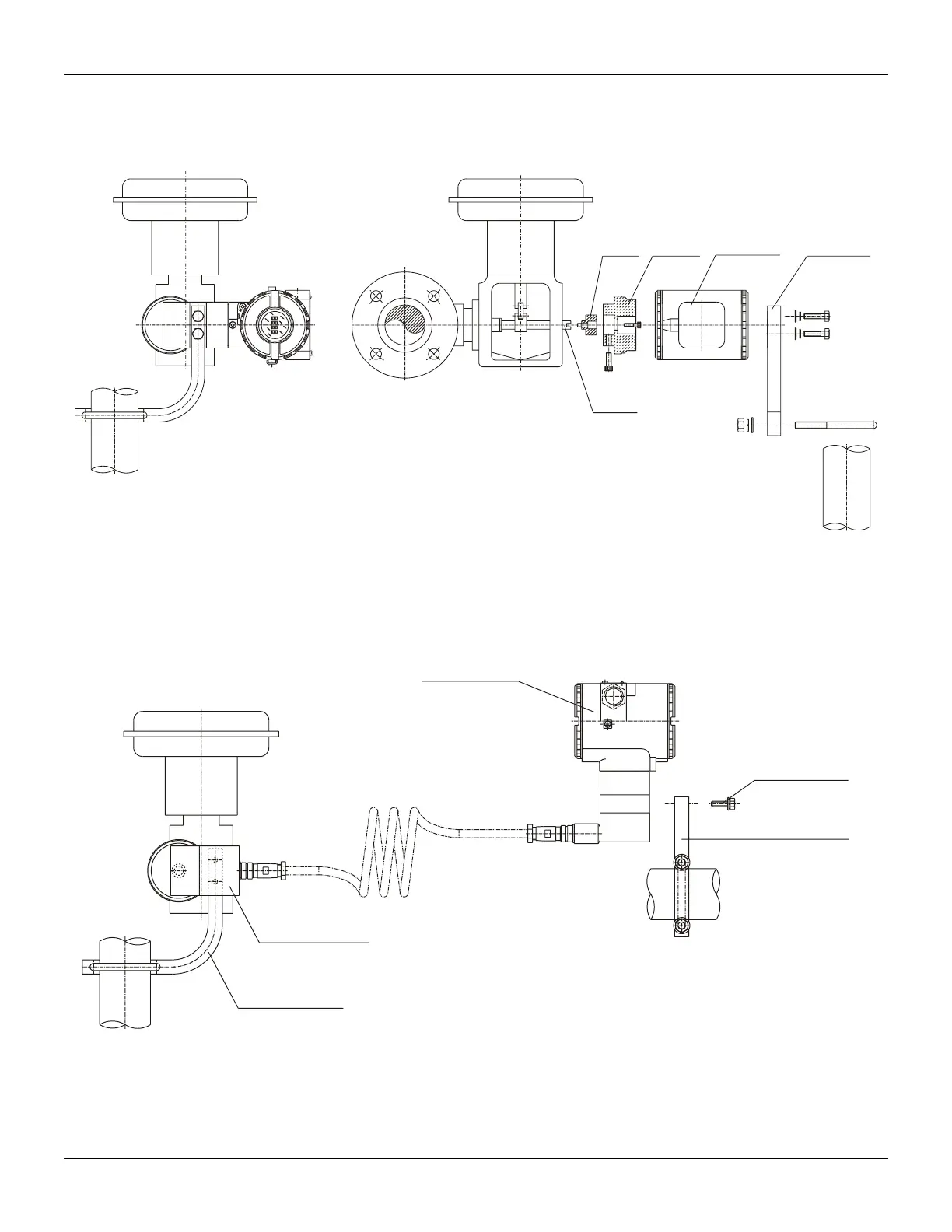

Figure 1.1 - Transmitter on a Rotary Actuator
BRACKET FOR REMOTE
SENSOR
REMOTE SENSOR
REMOTE POSITION
TRANSMITTER
M6 x 1SCREWS
(2 PLACES)
“L” BRACKET WITH “U” CLAMP FOR
REMOTE POSITION TRANSMITTER.
Figure 1.2 – Position Transmitter on Rotary Actuator with Remote Position Sensor
