Installation
1.3
Linear Movement
Install the magnet on the valve stem using the magnet mounting bracket.
The linear magnet movement must be orthogonal in relation to the main axis of the position
transmitter. For example, if the linear magnet movement is vertical, the transmitter main axis must
be horizontal, as show in Figure 1.3.
Magnet Bracket
Linear
Valve Yoke
Valve Stem
Linear Magnetic
Centralizer Gadget Linear
Position Transmitter
M6 x 25 Screw
Position Trasmitter Bracket
with Clamp
“L”
“U”

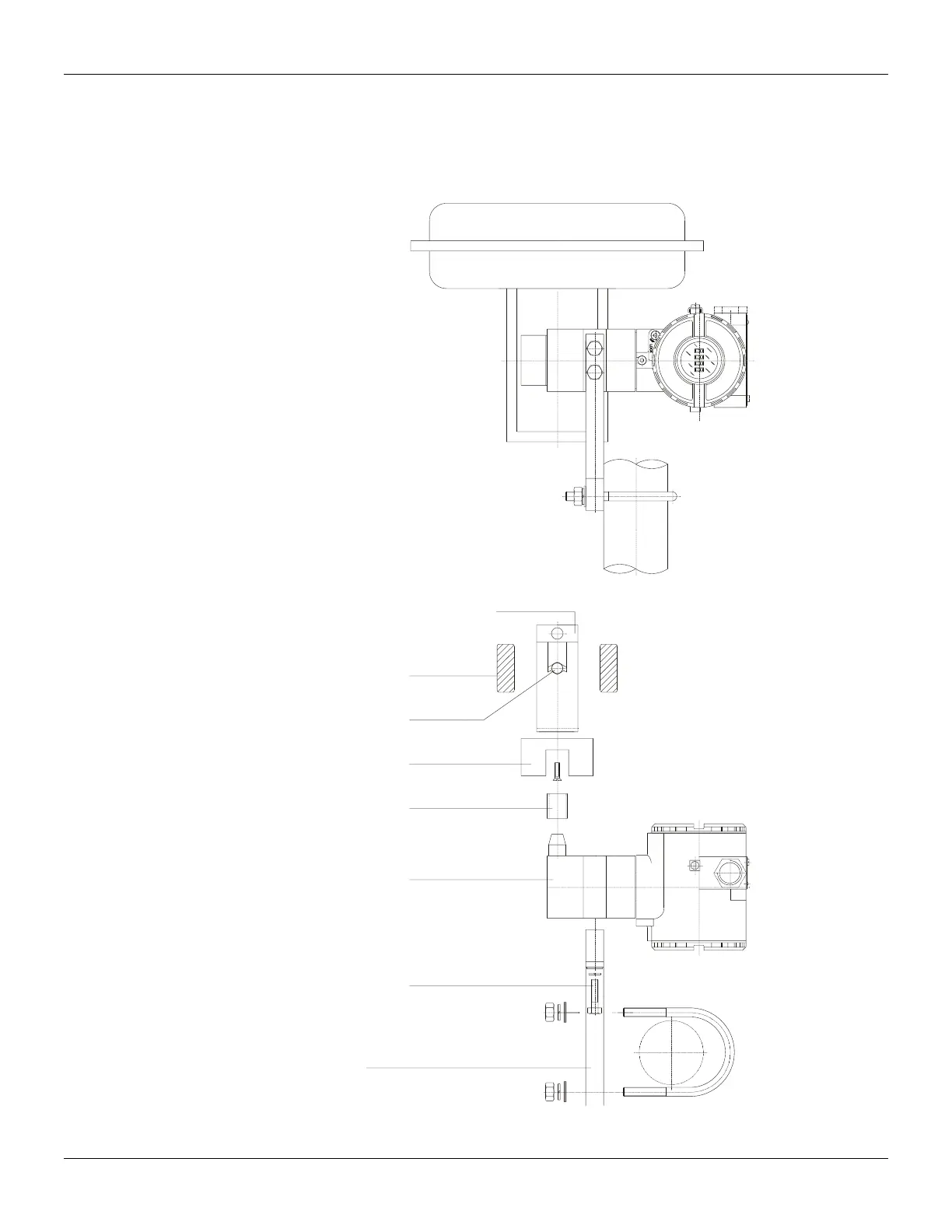

Figure 1.3 - Transmitter on a Linear Actuator
