HAT530 ATS CONTROLLER
HAT530 ATS CONTROLLER 2014-06-23 Version 1.0 Page 24 of 26

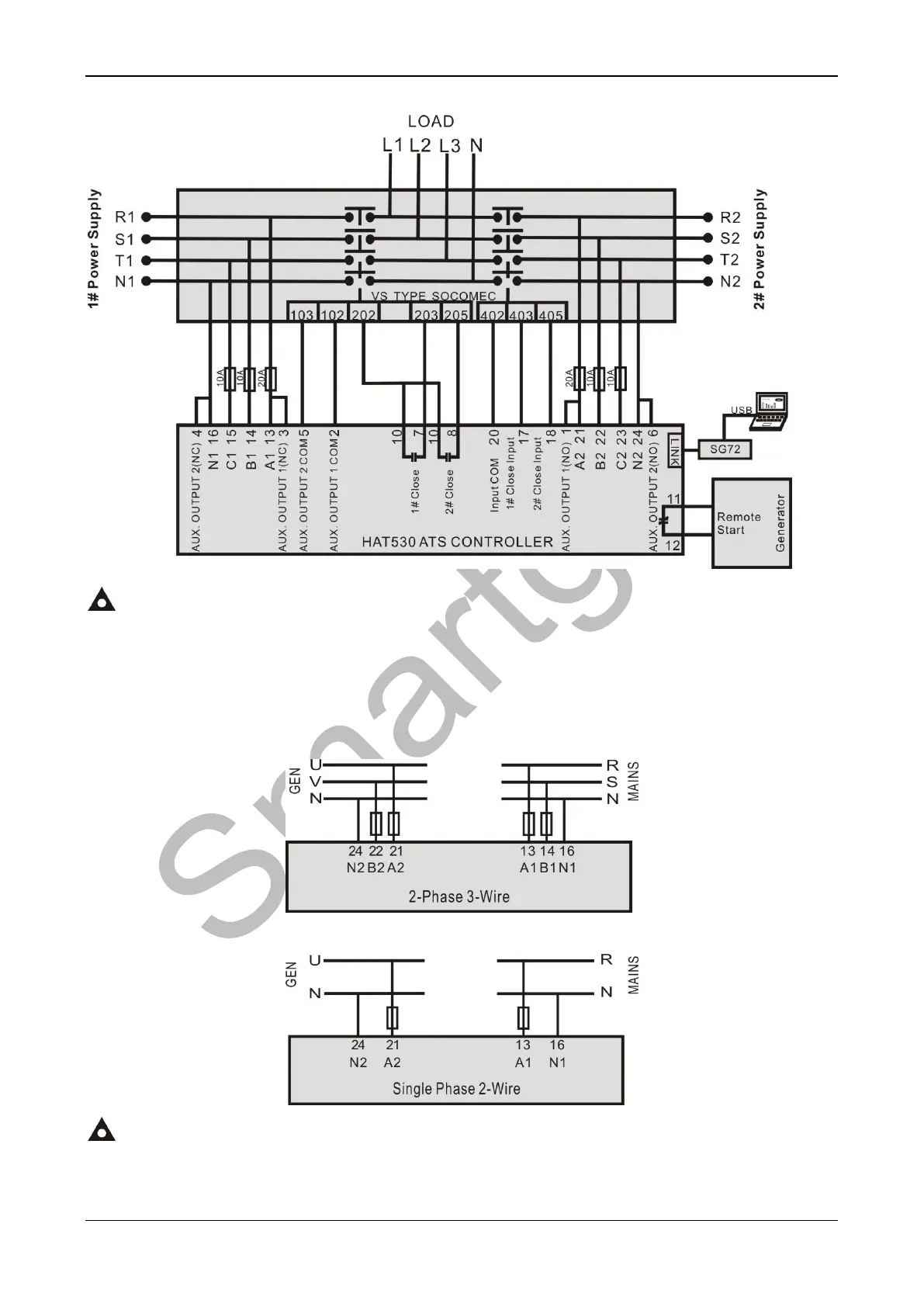

SOCOMEC VS Wiring Diagram
Note: The diagram is for reference only. The actual wiring shall follow the
ATS instruction. Users should choose proper fuse capacity according to the actual power
consumption. If SOCOMEC VS is applied, the Close delay and Open delay must be no less
than 5s (Default: 5s).
2-phase 3-wire Wiring Diagram
Single phase 2-wire Wiring Diagram
NOTE：Above pictures take the AC 220V voltage as example. If AC 110V voltage is
applied in actual use, please contact with Smartgen technical staff to get the specific wiring
methods.
