Smartgen HAT530 User Manual

HAT530 ATS CONTROLLER
HAT530 ATS CONTROLLER 2014-06-23 Version 1.0 Page 20 of 26

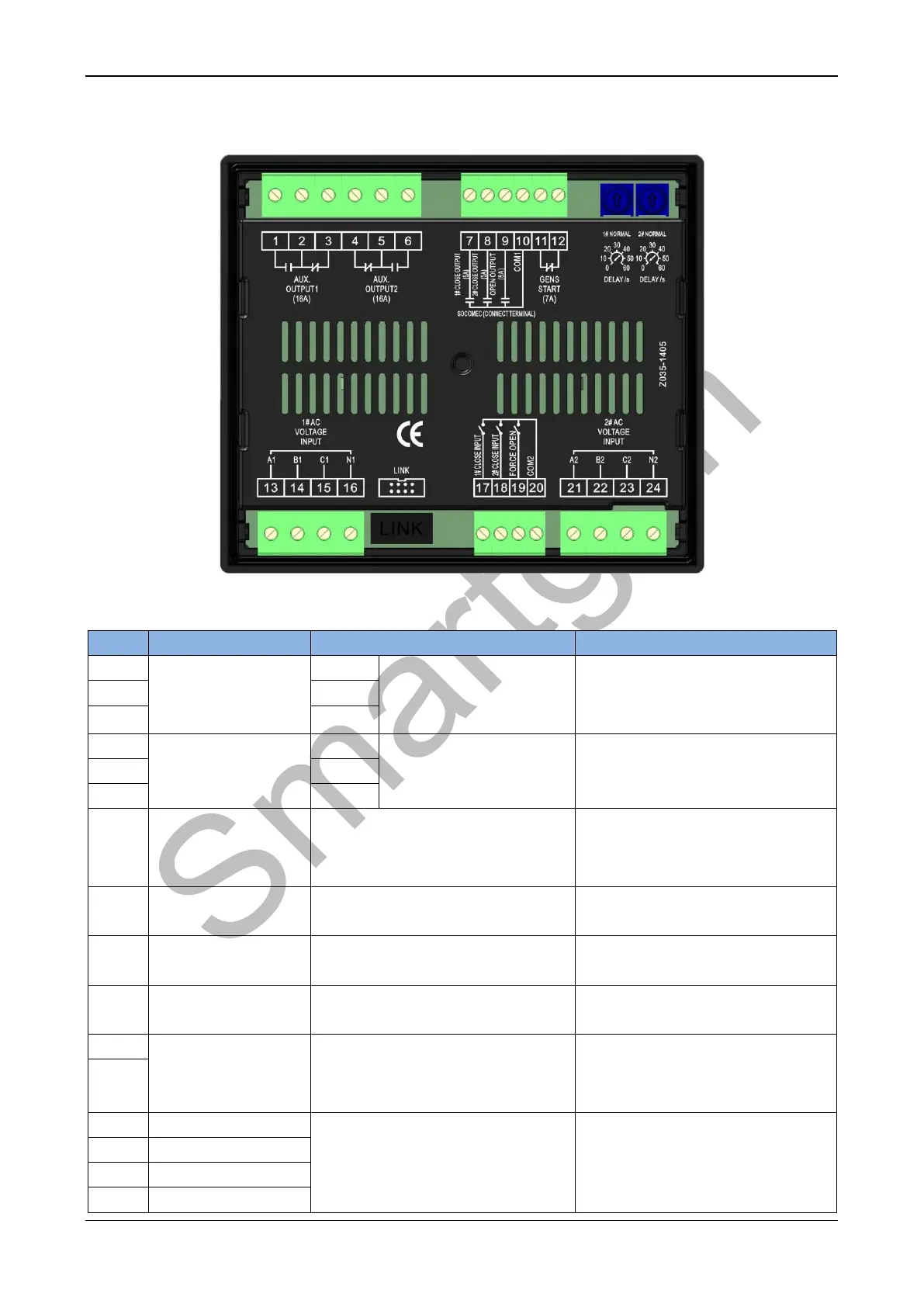

8 DESCRIPTION OF CONNECTING TERMINALS
Terminal description:
NO.
Items
Description
Remark
1
Aux. Output 1
NC
Default: ATS Power A
Phase
Volt-free relay contact output;
Rated 16A.
2
COM
3
NO
4
Aux. Output 2
NC
Default: ATS Power N
Phase
Volt-free relay contact output;
Rated 16A.
5
COM
6
NO
7
1# Close Output
Volt-free relay contact output;
Normally Open Output; Rated
5A.
8
2# Close Output
Volt-free relay contact output;
Normally Open Output;
Rated 5A.
9
Open Output
Volt-free relay contact output;
Normally Open Output;
Rated 5A.
10
COM1
Output COM of close switch
and open switch
COM1
11
GEN Start
Volt-free relay contact output;
Normally Close Output;
Rated 7A.
12
13
A1
1# AC 3-phase 4 wire voltage
input
For single phase, only
connect A1, N1.
14
B1
15
C1
16
N1
