HAT600N Series ATS Controller User Manual
HAT600N Series ATS Controller Version 1.1 2019-09-05 Page 18 of 24
14. COMMUNICATION CONFIGURATION AND CONNECTION
HAT600N series controller has RS485 serial port, which can connect the local area network openly. It
uses Modbus protocol via PC or system software. It can also be applicable to dual power switching
management for factories, telecom, industrial and civil buildings, achieving “remote control, remote
measuring, remote communication” functions.
More information about communication protocol, please refer to HAT600 Communication Protocol.
Communication parameters:
Module address 1 (range: 1-254, User can set.)
Baud rate 9600 bps
Data bit 8bit
Parity bit None
Stop bit 1 bit or 2bits(set via PC)
15. DESCRIPTION OF CONNECTING TERMINALS

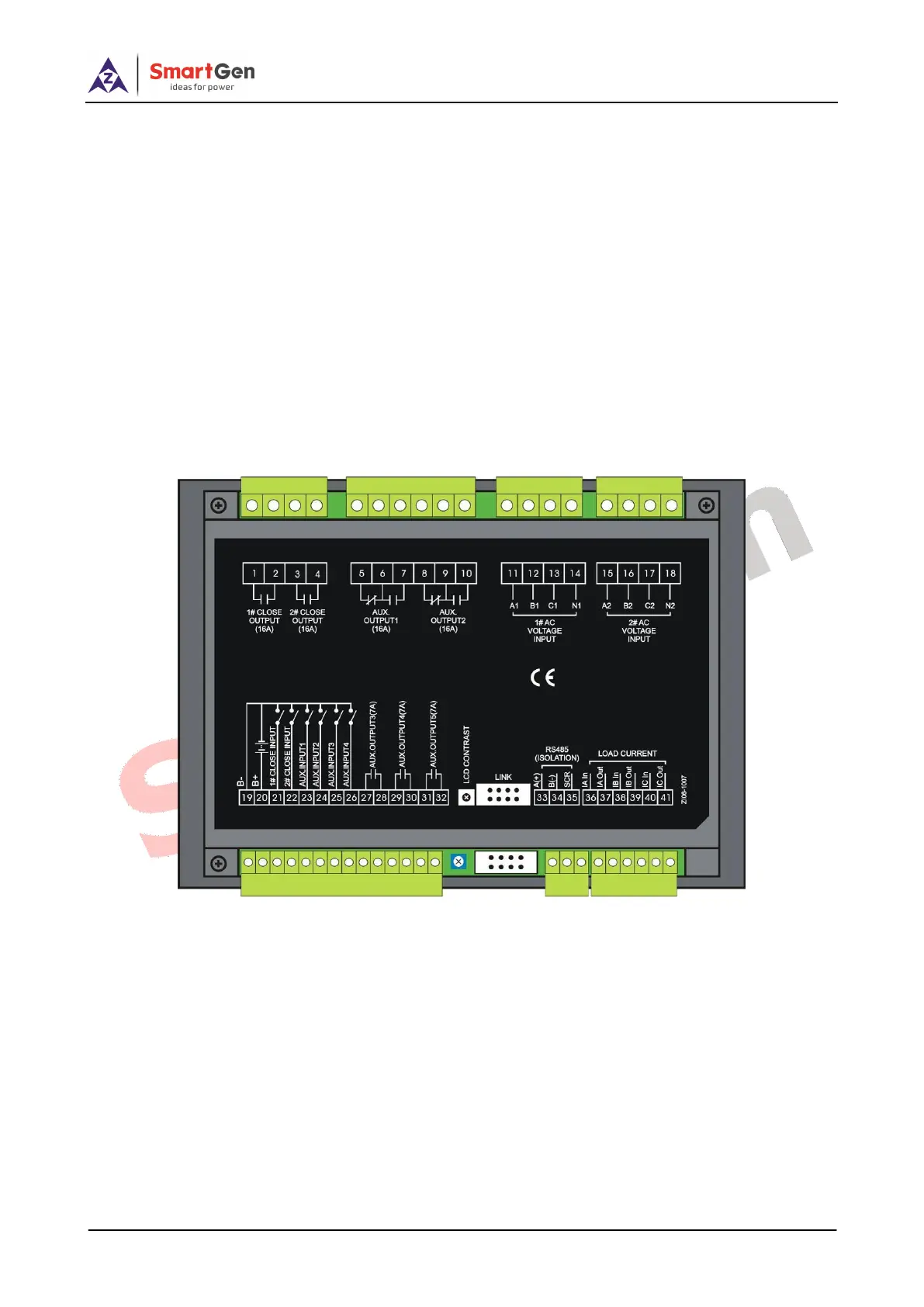

Fig. 2 Connecting Terminal Description
