Smartgen HAT600N User Manual

HAT600N Series ATS Controller User Manual
HAT600N Series ATS Controller Version 1.1 2019-09-05 Page 14 of 24
1# Shut
1# Volt normal
2# Under Volt
2010-02-18 21:15:07 1/99
1# Close
1# Volt normal
2# Below Volt
2010-02-18 21:15:07
1# Close
U1(L-N) 220 220 220V
U2(L-N) 0 100 220V
2010-02-18 21:15:07 1/99
1# Close
AMP 501 502 503A
F1 50.0Hz F2 50.1Hz
2010-02-18 21:15:07 1/99

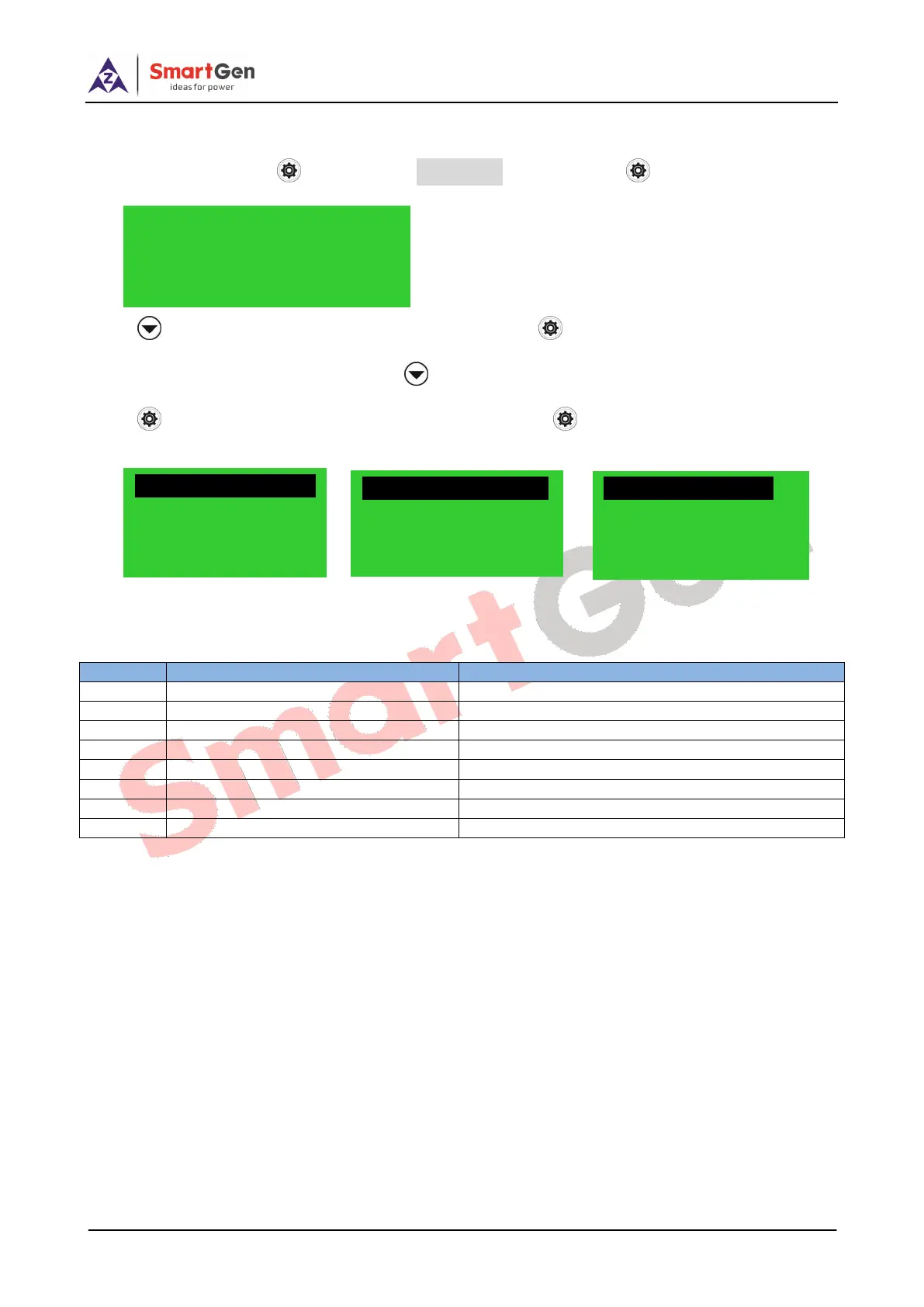

8. EVENT LOG
In the main screen, press key and select 2 Event log, and then press key, the screen will show
the event log interface as below:
Press key to select the corresponding record, and press key to enter into detailed information
interface.
In the detailed information interface, press key and it can display the record information circularly,
including the temporal voltage of #1 and #2, detailed voltage, current, frequency and date and time.
Press and it will exit the current interface, while pressing for a long time will return to main
screen.
Event log includes：record type, 1# power supply status, 2# power supply status, 1# 3-phase voltage, 2#
3-phase voltage, 3-phase current, 1# frequency, 2# frequency and time-to-event etc.
Table 11 Event Log Type
NO.
Type
Description
1
1# Close
1# close signal output
2
2# Close
2# close signal output
3
1# Fail to Close
1# power supply can not connect to load.
4
2# Fail to Close
2# power supply can not connect to load.
5
1# Fail to Open
1# power supply can not disconnect to load.
6
2# Fail to Open
2# power supply can not disconnect to load.
7
Trip alarm
The input is active.
8
Breaking compulsorily
Breaking compulsorily input is active.
