HAT600N Series ATS Controller User Manual
HAT600N Series ATS Controller Version 1.1 2019-09-05 Page 20 of 24

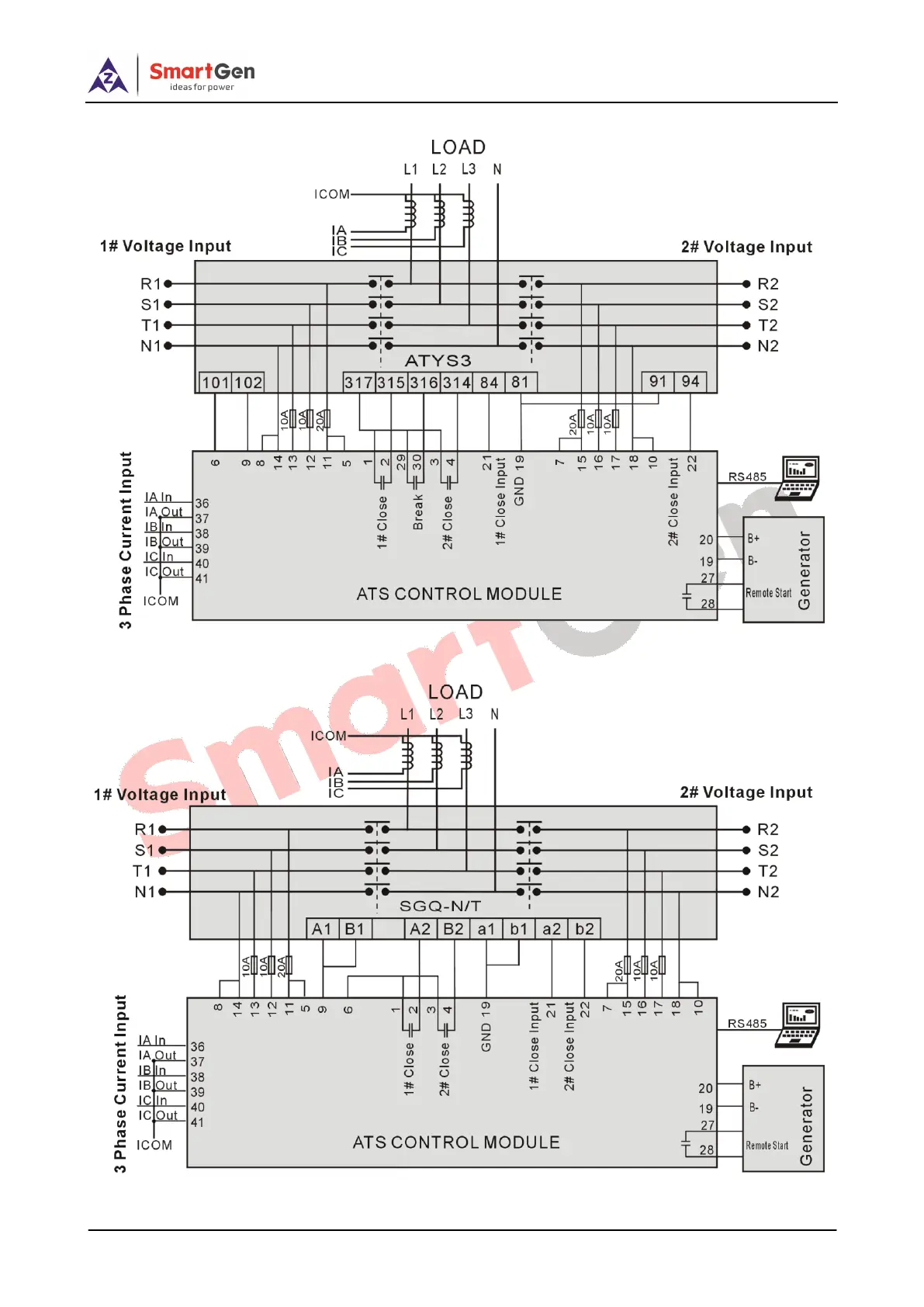

16. TYPICAL WIRING DIAGRAM
Fig. 3 ATYS3 Wiring Diagram
Fig. 4 SGQ-N/T Wiring Diagram
