4. OPERATING
4.1 OPERATION PANEL

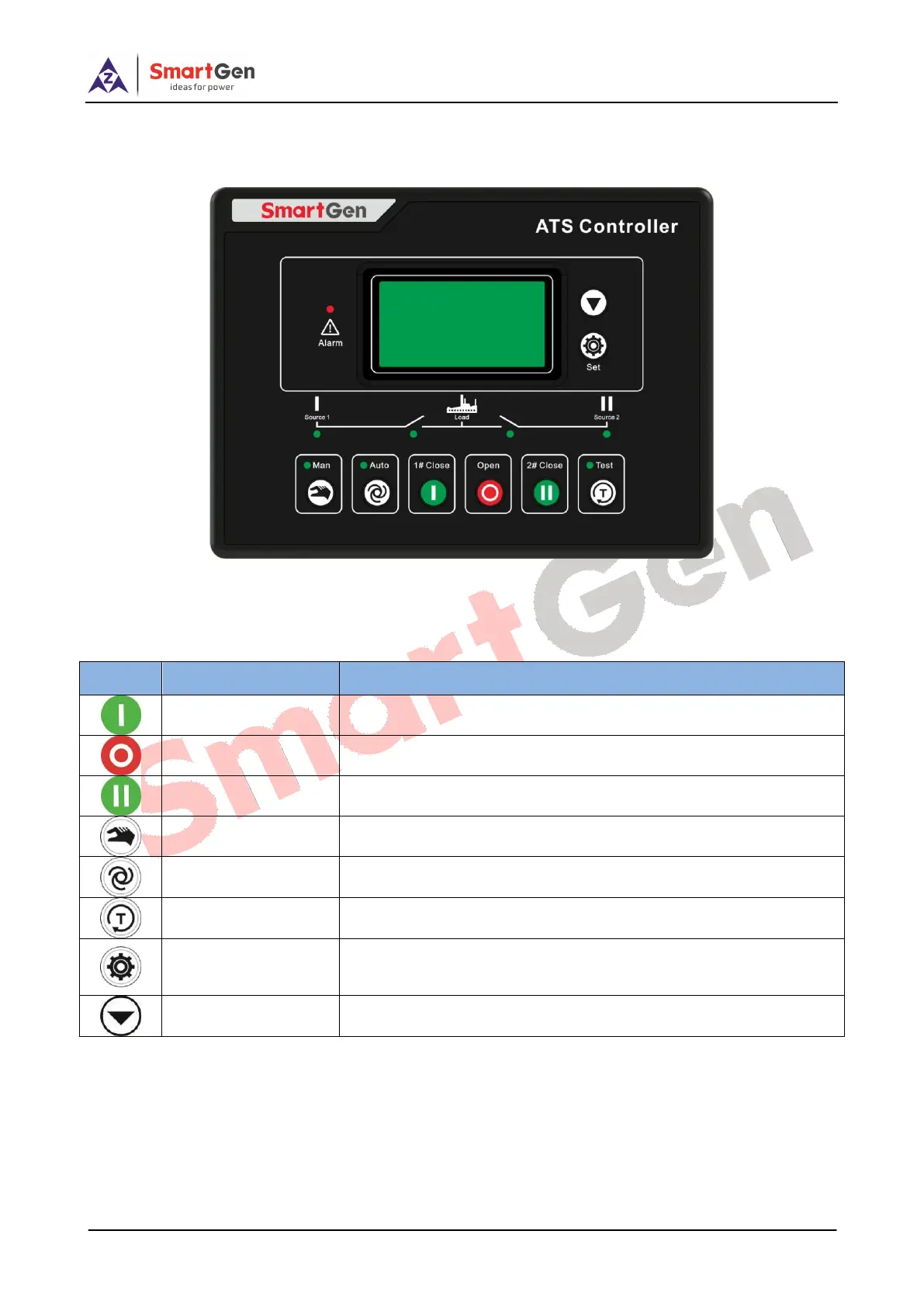

Fig. 1 Operation Panel
4.2 KEY FUNCTION DESCRIPTION
Table 4 Key Function Description
Icon
Functions
Description
1# Close
In Manual mode, switch on 1# power to load.
Open
In Manual mode, switch off 1# or 2# power to off-load.
2# Close
In Manual mode, switch on 2# power to load.
Manual
Press and controller enters into Manual mode.
Automatic
Press and controller enters into AUTO mode.
Test
Pressing this key can directly enter commissioning interface.
Menu /
Confirm
Press the key to enter menu interface; pressing and holding it to
return to the main menu interface. When an alarm occurs, pressing
and holding the key can remove alarm.
Scroll Screen
/Increase
Scroll the screen. In parameter editing, pressing this key can
increase values.
