Caution on Installation
HEC002-A/HEC006-A 3-3

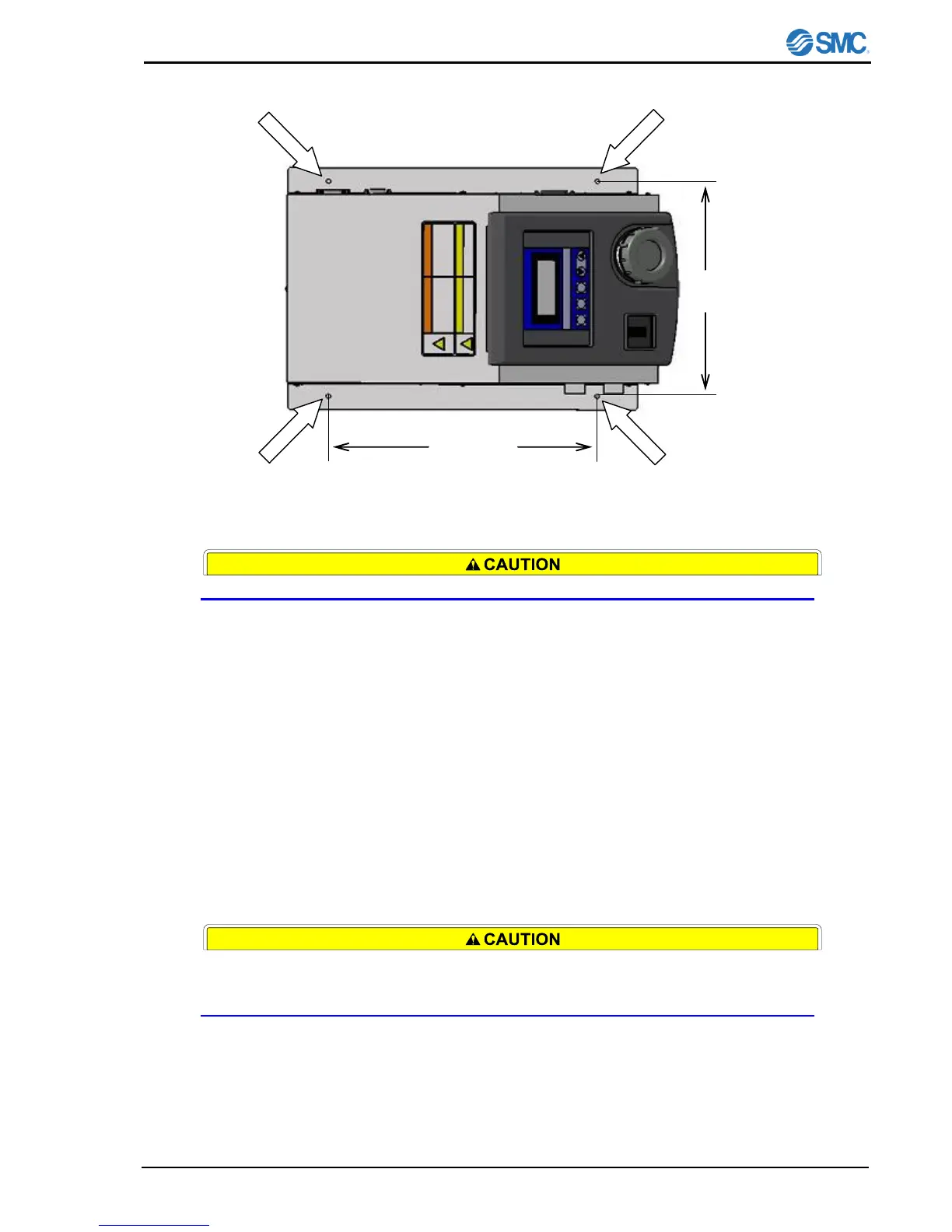

Fig3-3 Mounting
Be sure to correctly tighten all screws the required torque.
3.4 Piping
1) Ensure the flow rate of the circulating fluid is as high as possible to maintain the temperature
stability. Therefore, the length of the external piping should be minimized and internal diameter
should be as large as possible. Piping must have sufficient strength for the maximum discharge
pressure of the circulating circuit.
2) Likewise, if a tube is bent or multiple elbow fittings are used, the piping resistance will increase and
the flow rate will decrease. If the flow rate falls, the temperature stability will decrease.
3) If installing a tank externally, only a sealed tank should be used. Do not use an open tank.
Ensure that the INLET and OUTLET for circulating fluid is connected
correctly. If any valves are used ensure that they do not restrict the flow,
otherwise low flow my cause an alarm.
3.5 Handling
Transport Thermo-con with both handles.
240(HEC002)
270(HEC006)
300(HEC002)
280(HEC006)
