Chapter 3 Transport and Setting Up
HRS-R Series 3.3 Installation
3-11

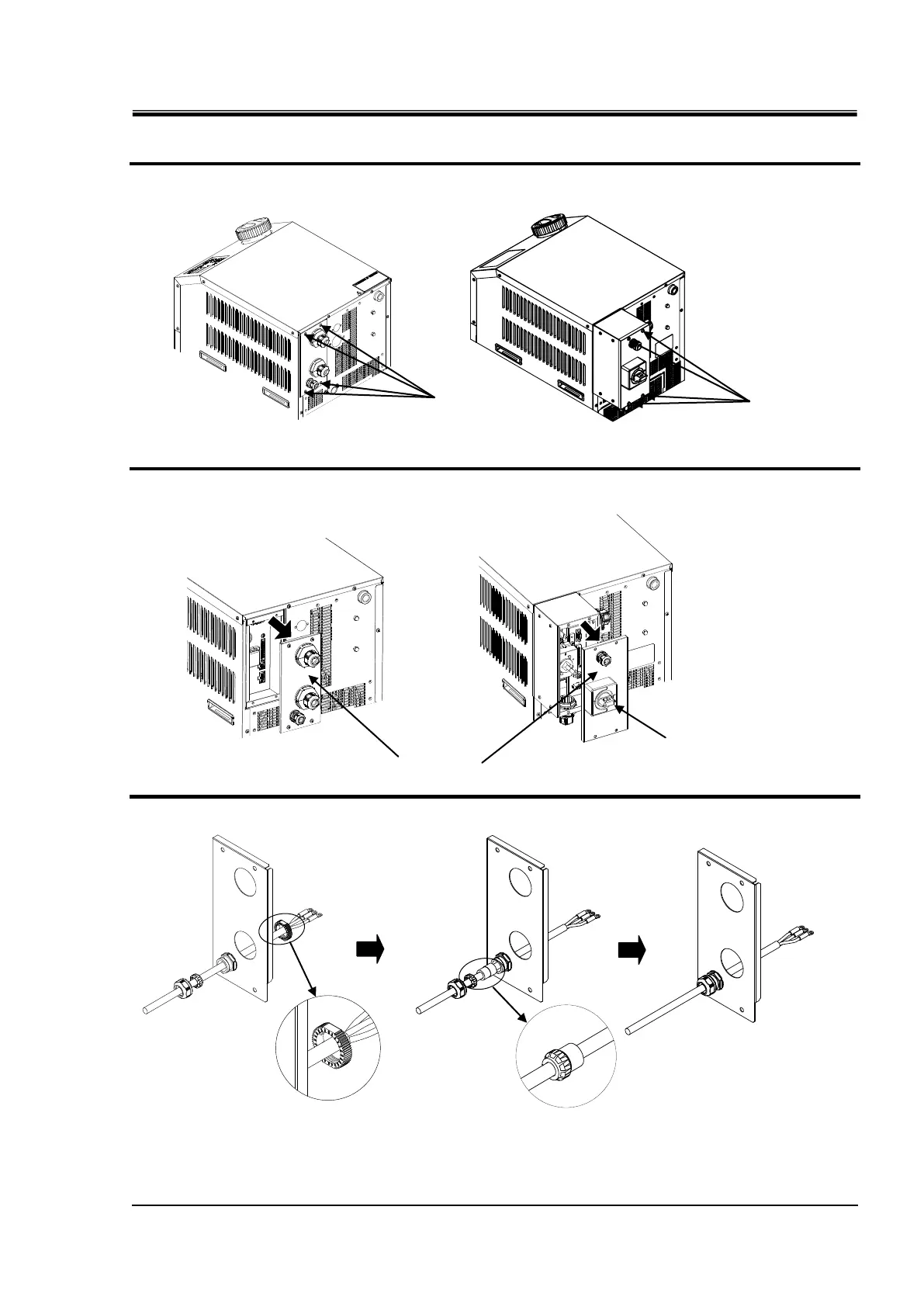

4. Remove the screws (4pcs) on the backside.
5. Remove rear cover.
6. Insert power cable to the cable gland and mount.
Rear cover
Screws
(x4)
Screws
(x4)
For option B
For option B
Remove the cover
at the breaker "OFF" position.
Rear cover and screws are
supplied as accessory.
