5.7 Run timer, stop timer function HRS-R Series
5-16

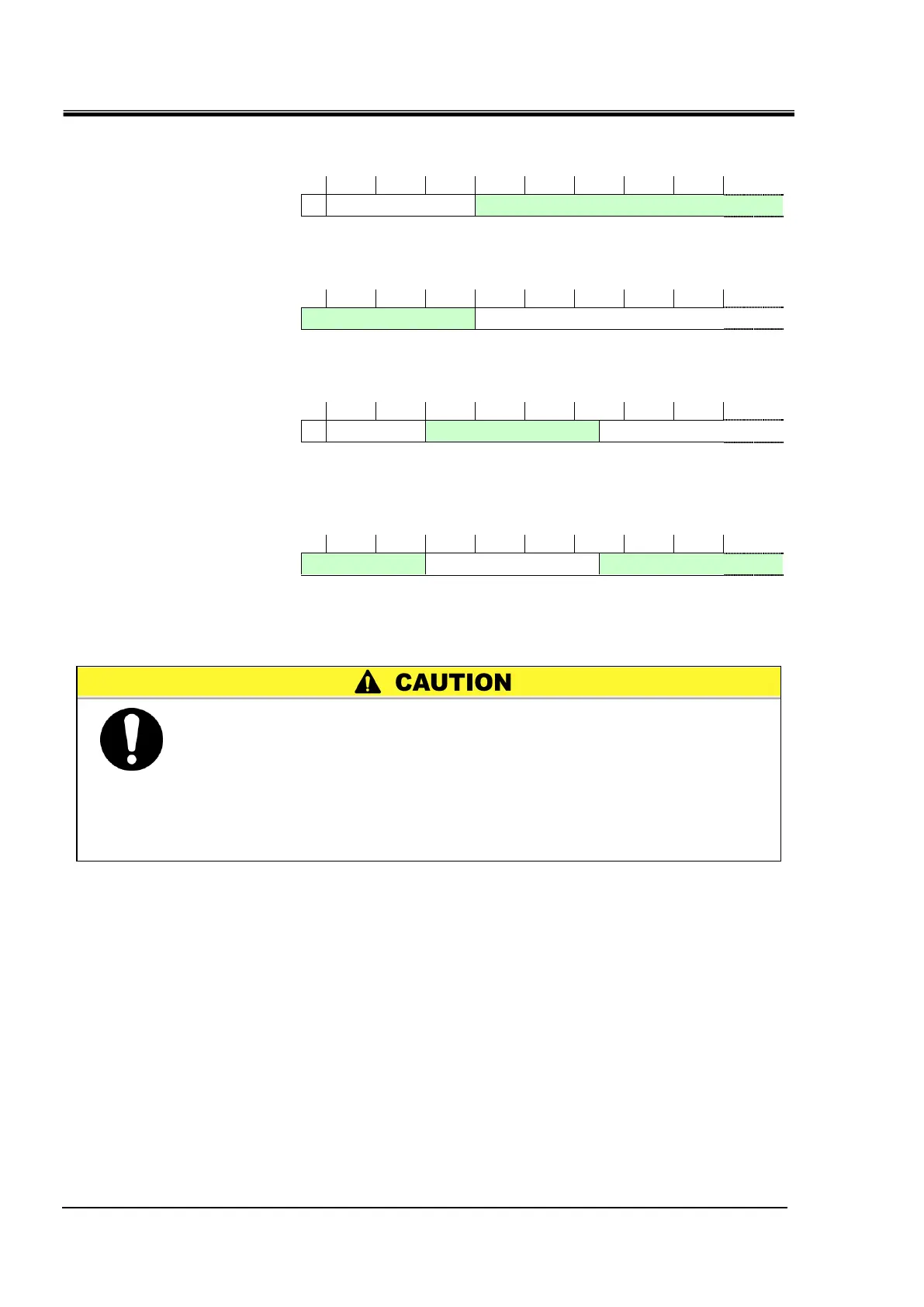

Timer setting example
Run timer
Set to start after
3hours
Now
1H
2H
3H
4H
5H
6H
7H
8H
Stopped
Operating
・・・
↑Operating
Stop timer
Set to stop after 3
hours
Now
1H
2H
3H
4H
5H
6H
7H
8H
Operating
Stopped
・・・
↑Stopped
Run timer＋
Stop timer
Set to start after 2
hours
Set to stop after 5.5
hours
Now
1H
2H
3H
4H
5H
6H
7H
8H
Stopped
Operating
Stopped
・・・
↑Operating
↑Stopped
Run timer＋
Stop timer
Set to stop after 2
hours
Set to start after
5.5hours
Now
1H
2H
3H
4H
5H
6H
7H
8H
Operating
Stopped
Operating
・・・
↑Stopped
↑Operating
 Set while the power is supplied.
 The setting is released when operation is started or stopped by the
timer. Resetting is necessary to use the timer next time.
 Run timer setting is released when the customer’s power supply
facility is cut, or a power failure occurs. Please reset.
