Chapter 3 Transport and Setting Up
HRS Series 3.3 Installation
3-7
3.3 Installation
3.3.1 Mounting
z
Mount the product on a flat and stable floor with no vibrations.
z
Refer to’’8.2 Outline dimensions’’ for dimensional information of the product.
 How to mount the product
1. Move the product to the installation area.
2. After moving, lock the front casters again.

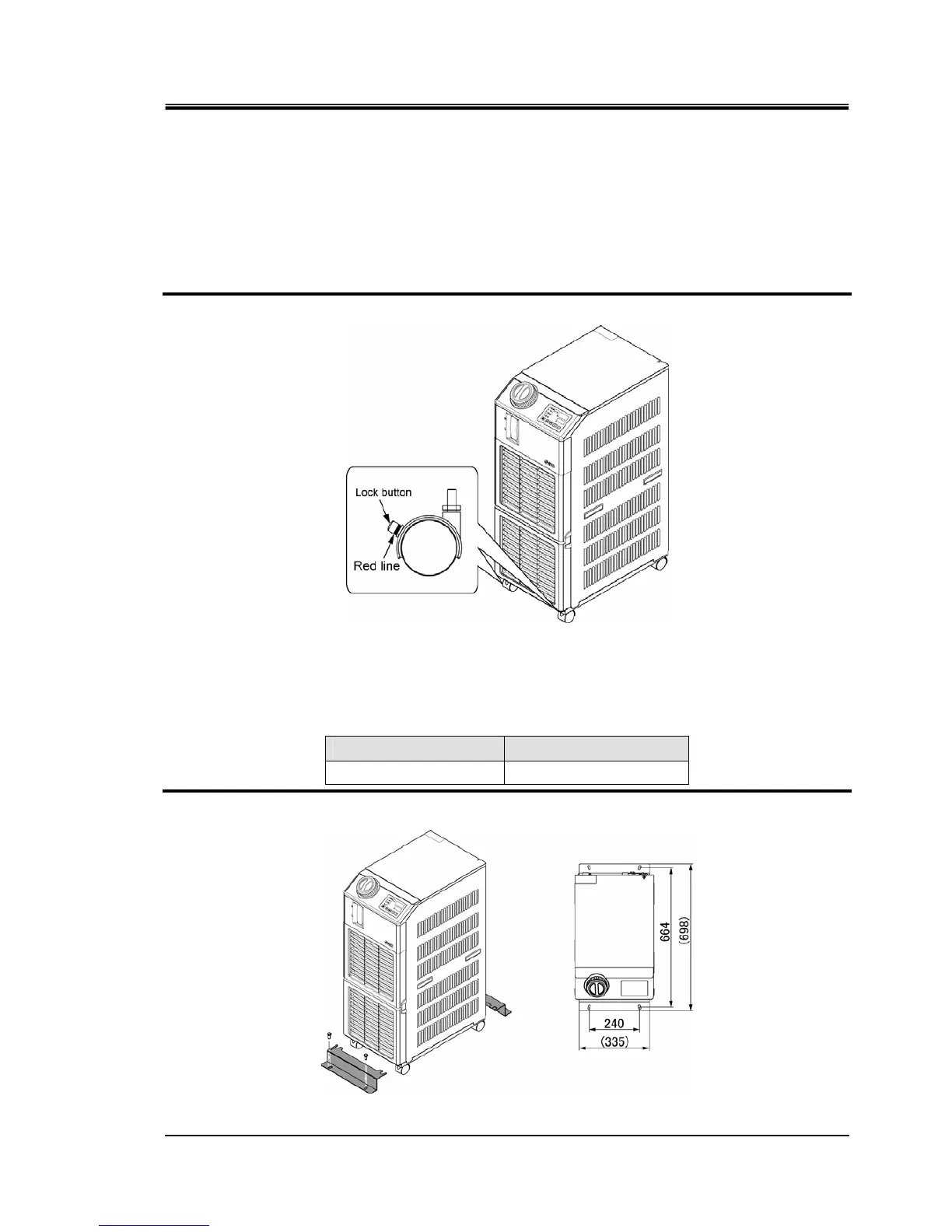

Fig. 3-3 Installation procedures
 〈Fixture〉
Follow the procedure below when fixing the thermo-chiller to the floor or the mounting frame.
1. Prepare the fixing bracket shown below (Not included in the package).
Item
Part number
Anti-seismic brackets HRS-TK002
2. Use M8 foundation bolts to fix the product within the dimensions below.
Fig. 3-4 Anti-seismic brackets installing
∗4 (four) M8 foundation bolts should be prepared by the customer.
