HRX-OM-O021
Chapter 3 Transport and Setting Up
3.3 Installation HRS Series
3-12
3. Plug the prepared connector in to the contact input/output connector that is on the back
of the thermo-chiller.

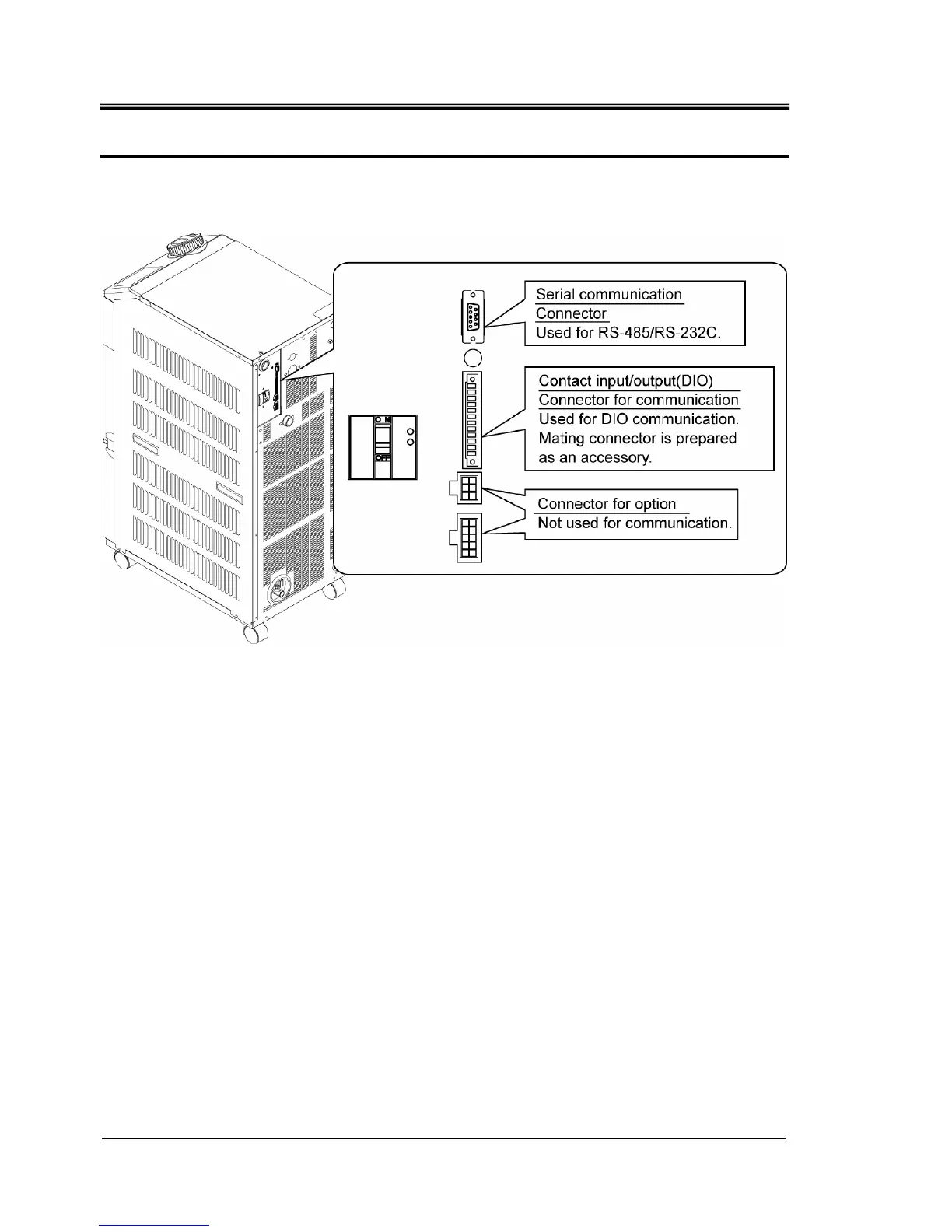

Fig. 3-9 Communication port
